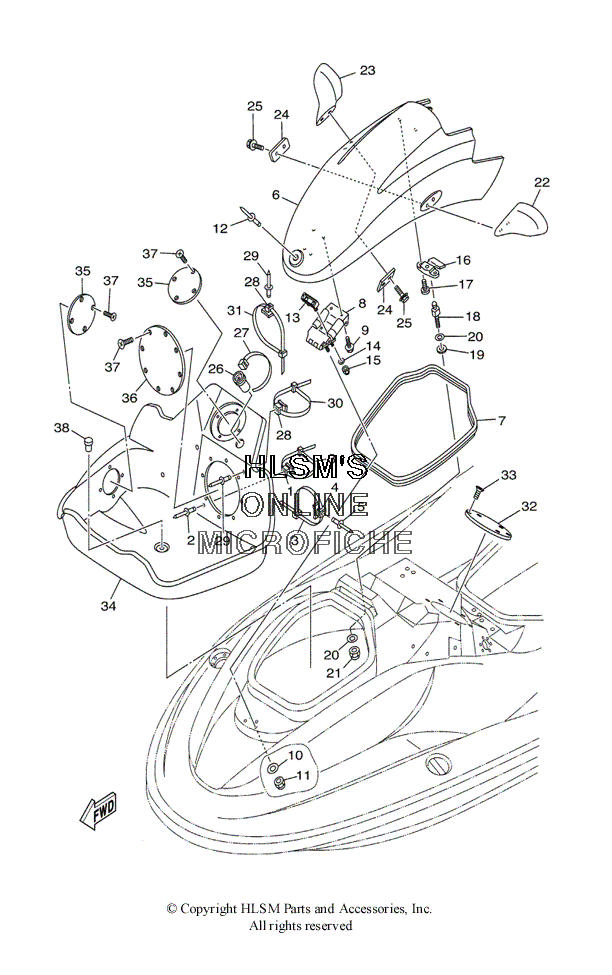

FRONT STORAGE W/ COVER для Yamaha SUV 1200 Y - 2000 года выпуска`
-
№АртикулНазвание
-
190600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
290267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
390464-99800-00 CLAMP (YMUS)CLAMP (YMUS)
-
490600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
590267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
6F0D-U517B-00-P1 LID, ENGINE ROOMLID, ENGINE ROOM
-
7GU5-62663-00-00 PACKING 1PACKING 1
-
8F0D-6515A-02-00 HINGE ASSY.HINGE ASSY.
-
990119-06966-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1090201-06802-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
119572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
1290267-489U8-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
13F0D-6518E-01-00 PRATE, HINGE LIDPRATE, HINGE LID
-
149299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
159572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
16F0D-6517C-04-00 LOCK, LIDLOCK, LID
-
1790149-06906-00 SCREWSCREW
-
18GU5-63774-00-00 PINPIN
-
19F0D-6515E-00-00 DAMPER 2DAMPER 2
-
209299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
219572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
22F0D-U596B-00-00 MIRROR LH (YMUS)MIRROR LH (YMUS)
-
23F0D-U596C-00-00 MIRROR RH (YMUS)MIRROR RH (YMUS)
-
24F0D-U5646-00-00 PLATE (YMUS)PLATE (YMUS)
-
2590119-089UN-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
26GU2-6822E-01-00 GROMMETGROMMET
-
2790464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
2890600-917U4-00 CLAMP COMP. (YMUS)CLAMP COMP. (YMUS)
-
2990267-48802-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
3090601-200U2-00 BAND (YMUS)BAND (YMUS)
-
3190464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
32GP1-U7228-00-00 COVER, INSPECTION 2 (YMUS)COVER, INSPECTION 2 (YMUS)
-
3397780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
35GP1-U7227-00-00 COVER, INSPECTION 1 (YMUS)COVER, INSPECTION 1 (YMUS)
-
36GU5-U7861-00-00 COVER, FILLER (YMUS)COVER, FILLER (YMUS)
-
3797780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
3890605-502U1-00 PLUG, BLIND (YMUS)PLUG, BLIND (YMUS)
