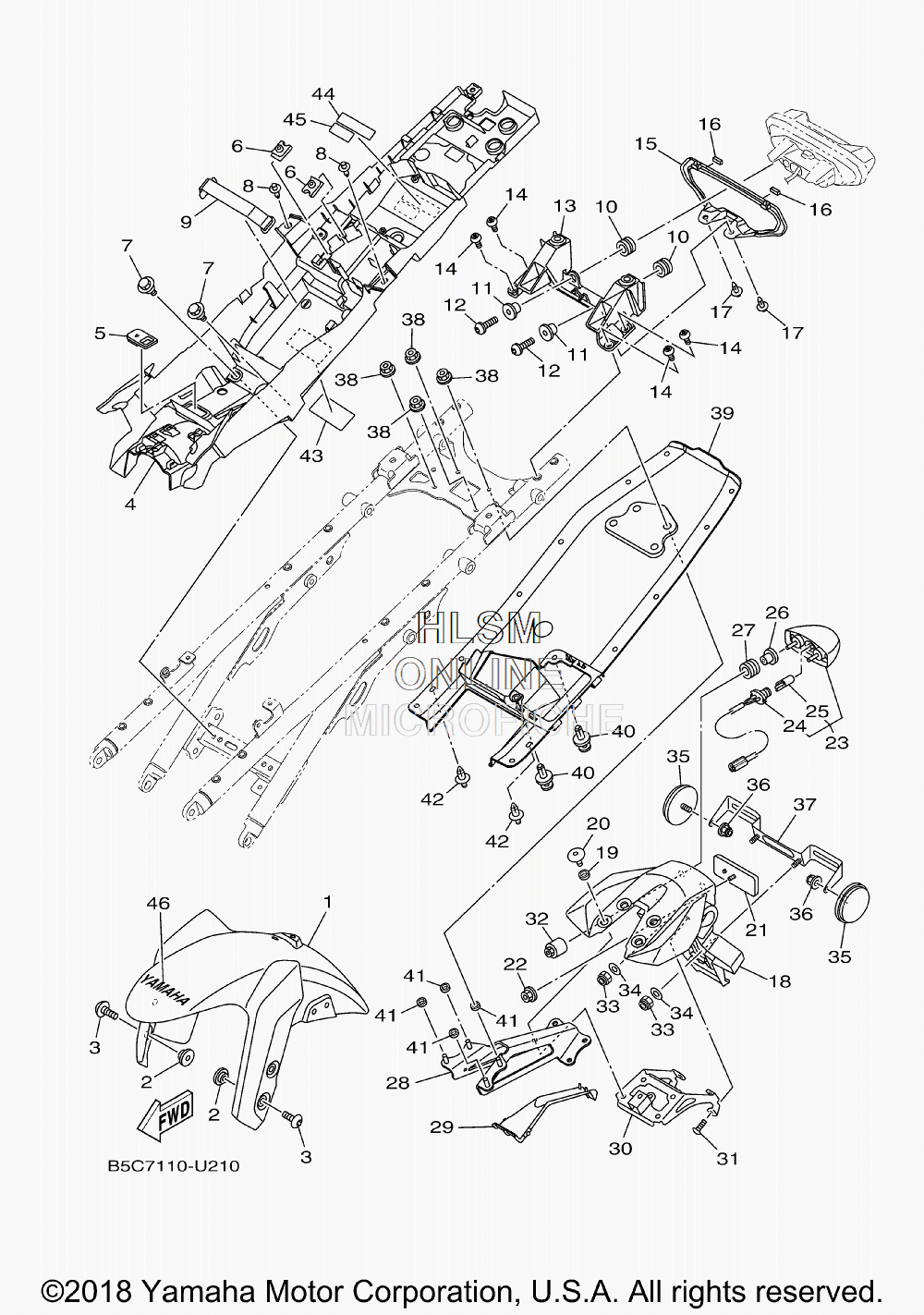

FENDER - FRONT / REAR для Yamaha TRACER 900 - 2019 года выпуска`
-
№АртикулНазвание
-
11RC-21511-00-P0 FENDER, FRONT (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)FENDER, FRONT (MBL2 - MAT BLACK FOR BNS4 - BLUISH GRAY)
-
290387-06153-00 COLLARCOLLAR
-
390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4B5C-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
52DR-26199-00-00 PLUG, BLINDPLUG, BLIND
-
690183-06069-00 NUT, SPRINGNUT, SPRING
-
790109-06202-00 BOLTBOLT
-
890269-07007-00 RIVETRIVET
-
91RC-82137-00-00 BAND, BATTERYBAND, BATTERY
-
1090480-12015-00 GROMMETGROMMET
-
1190387-06288-00 COLLARCOLLAR
-
1292012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
132PP-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1490111-06029-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
152PP-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
161RC-21747-00-00 DAMPERDAMPER
-
1790269-07007-00 RIVETRIVET
-
181RC-21629-01-00 GUARD, MUDGUARD, MUD
-
1990387-06372-00 COLLARCOLLAR
-
2090111-06089-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
213Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2295602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
231WS-84740-00-00 LICENCE LIGHT ASSYLICENCE LIGHT ASSY
-
241WS-84547-00-00 ...CORD, LICENSE LIGHT...CORD, LICENSE LIGHT
-
251TP-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
2690387-05042-00 COLLARCOLLAR
-
2790480-11009-00 GROMMETGROMMET
-
282PP-2164F-00-00 STAY 1STAY 1
-
292PP-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
302PP-21682-00-00 STAY, PLATESTAY, PLATE
-
3190160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
321RC-2622H-00-00 WEIGHTWEIGHT
-
3395607-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3492902-06600-00 WASHER, PLATEWASHER, PLATE
-
35449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
3695707-05500-00 NUT, FLANGENUT, FLANGE
-
371RC-84751-10-00 BRACKET, LICENSEBRACKET, LICENSE
-
3895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
392PP-21651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
4090269-07076-00 RIVETRIVET
-
4190387-06302-00 COLLARCOLLAR
-
4290269-07007-00 RIVETRIVET
-
433XW-21668-A1-00 LABEL, TIRELABEL, TIRE
-
443JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
453TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
4699247-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
