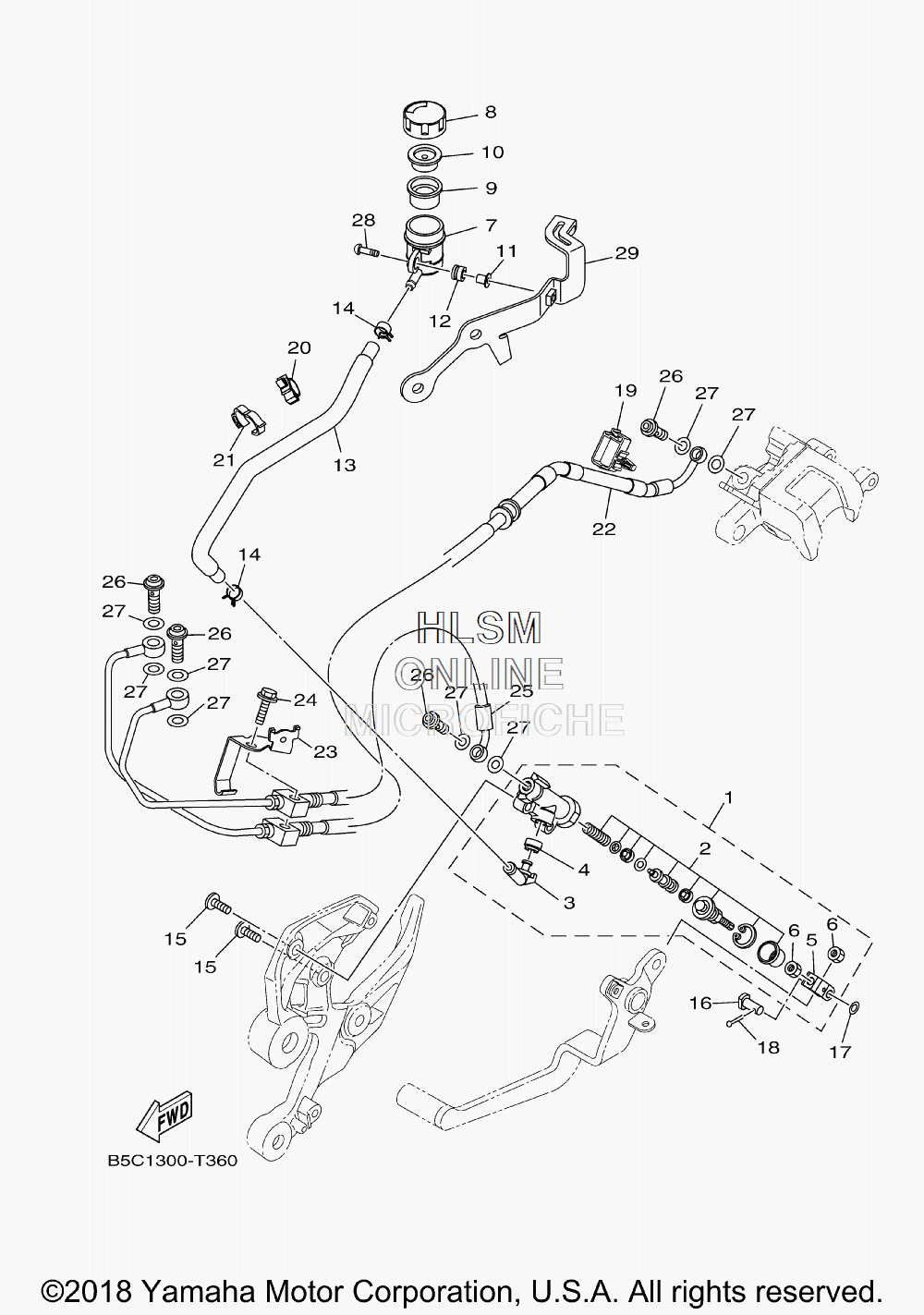

BRAKE - REAR MASTER CYLINDER для Yamaha TRACER 900 - 2019 года выпуска`
-
№АртикулНазвание
-
156P-2583V-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
256P-25808-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
32D1-2582A-00-00 ...JOINT...JOINT
-
44BP-2585F-01-00 ...O-RING...O-RING
-
54BP-27222-02-00 ...JOINT...JOINT
-
690170-08010-00 ...NUT...NUT
-
714B-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
82C0-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
92VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
102VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1190387-05028-00 COLLARCOLLAR
-
122C0-26326-00-00 GROMMETGROMMET
-
13B5C-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1490467-120A3-00 CLIPCLIP
-
1590111-08038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1790201-08066-00 WASHER, PLATEWASHER, PLATE
-
1891401-20012-00 PIN, COTTERPIN, COTTER
-
1990464-20023-00 CLAMPCLAMP
-
2090464-18007-00 CLAMPCLAMP
-
2190464-16003-00 CLAMPCLAMP
-
22B5C-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
232DR-85142-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
2490105-06192-00 BOLT, FLANGEBOLT, FLANGE
-
252DR-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
2690401-10172-00 BOLT, UNIONBOLT, UNION
-
2790430-10005-00 GASKETGASKET
-
2890111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
292PP-2582E-00-00 HOLDER, RESERVE TANKHOLDER, RESERVE TANK
