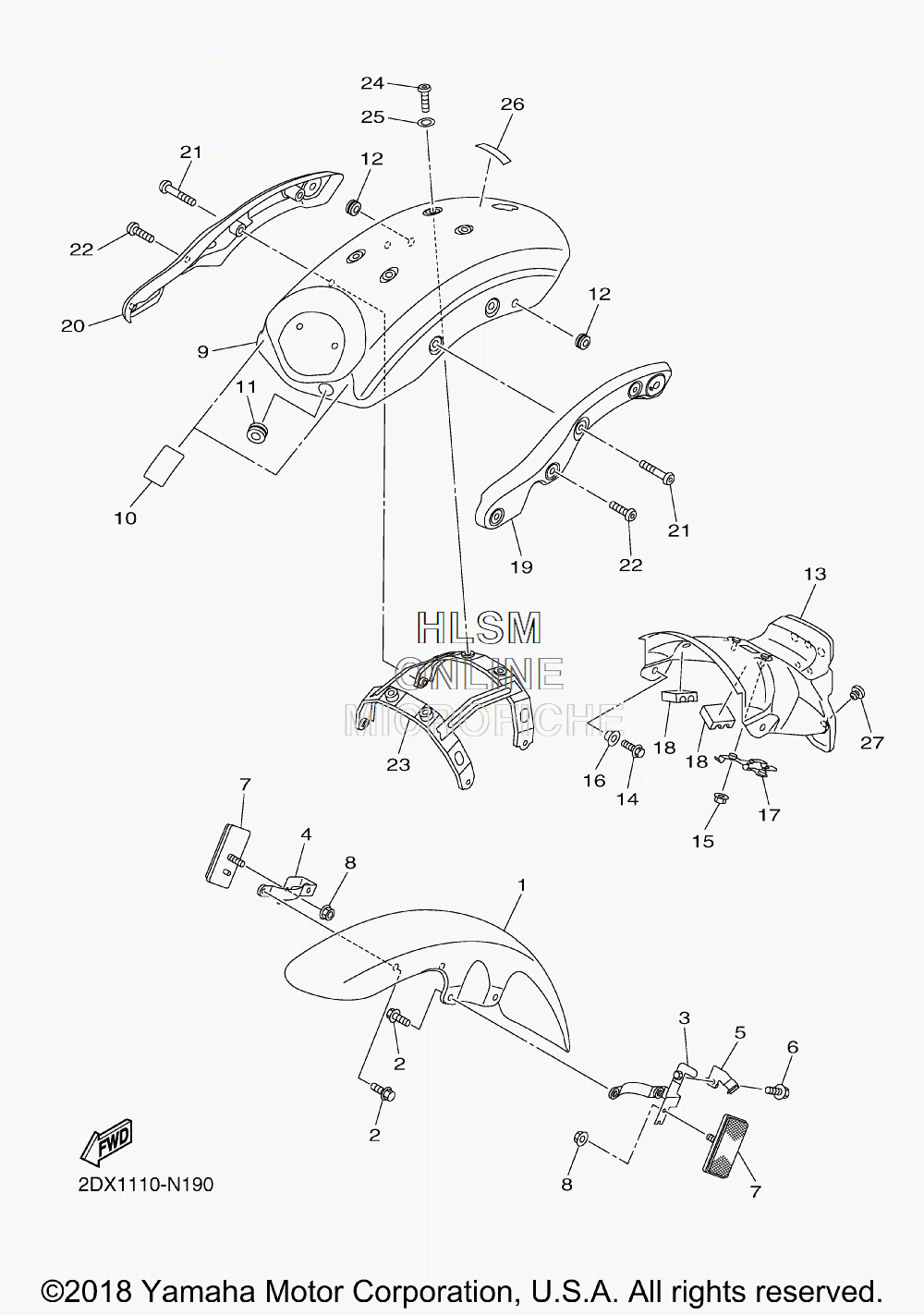

FENDER - FRONT / REAR для Yamaha BOLT - 2019 года выпуска`
-
№АртикулНазвание
-
11TP-21510-00-P0 FRONT FENDER COMP. (SMX - BLACK METALLIC)FRONT FENDER COMP. (SMX - BLACK METALLIC)
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
31TP-21587-00-00 STAY 1STAY 1
-
41TP-21588-00-00 STAY 2STAY 2
-
527D-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
91TP-21610-01-P0 REAR FENDER COMP. (SMX - BLACK METALLIC)REAR FENDER COMP. (SMX - BLACK METALLIC)
-
101TP-21669-00-00 SEALSEAL
-
1190480-01015-00 GROMMETGROMMET
-
1290480-13016-00 GROMMETGROMMET
-
131TP-2162R-00-00 FENDER 2FENDER 2
-
1495822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690387-07717-00 COLLARCOLLAR
-
171TP-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
181TP-21639-00-00 DAMPER 2DAMPER 2
-
191TP-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
201TP-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
2190111-08005-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290111-10006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
231TP-21643-00-00 STAY, REARSTAY, REAR
-
2490111-08081-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2590201-08066-00 WASHER, PLATEWASHER, PLATE
-
261D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2790338-07010-00 PLUGPLUG
