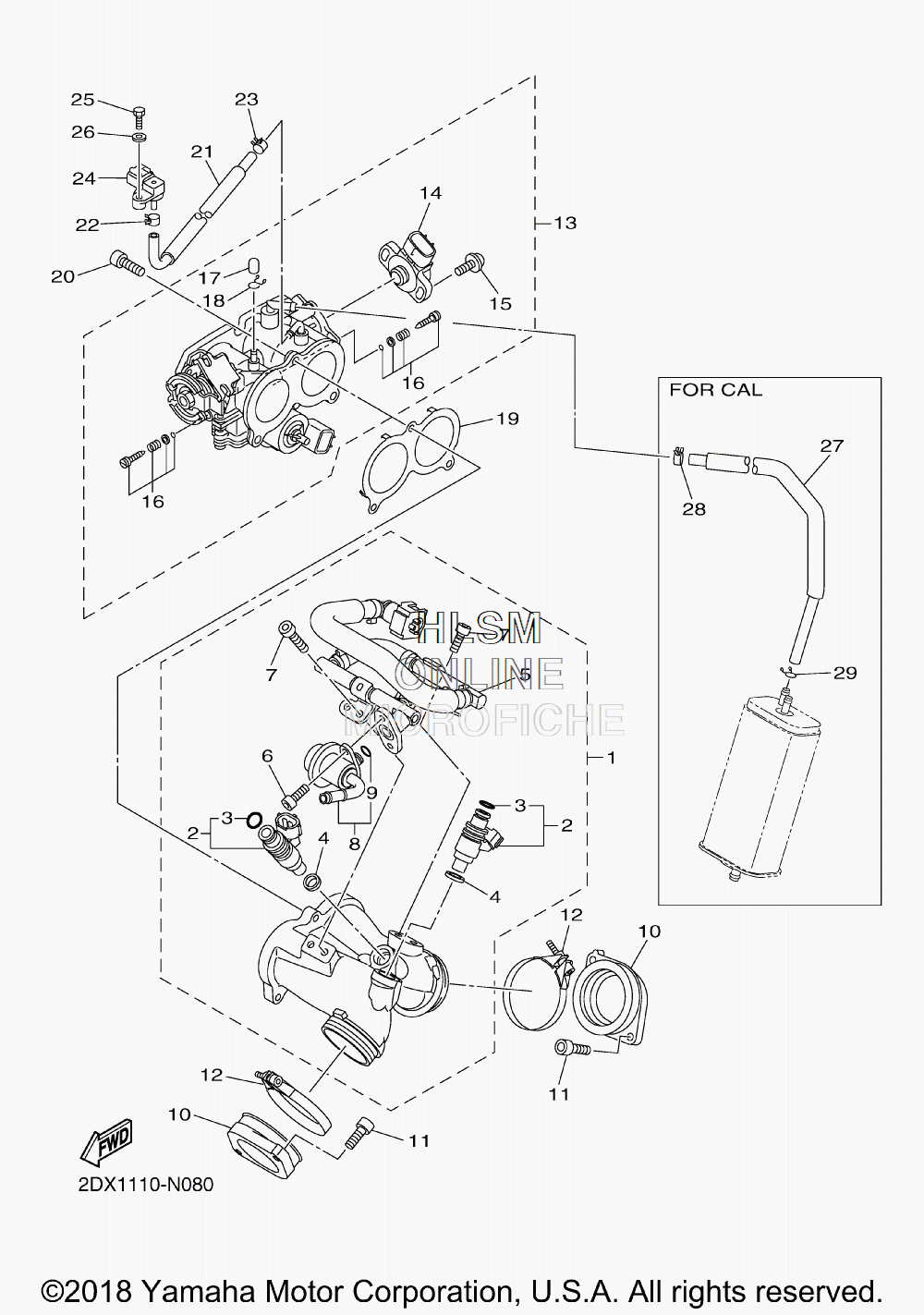

AIR INDUCTION SYSTEM для Yamaha BOLT - 2019 года выпуска`
-
№АртикулНазвание
-
11TP-13590-10-00 CARBURETOR JOINT ASSYCARBURETOR JOINT ASSY
-
25S7-13761-00-00 ...INJECTOR...INJECTOR
-
35PS-14147-00-00 ......O-RING......O-RING
-
48FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
51TP-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
691312-05010-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
790110-06168-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
81TP-13906-10-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
95S7-13769-00-00 ......O-RING......O-RING
-
105S7-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
1191312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290450-54006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
131TP-13750-01-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
131TP-13750-11-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
148GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
154KM-24453-00-00 ...SCREW...SCREW
-
163D8-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
17895-14169-00-00 ...CAP...CAP
-
188A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
19BL3-14467-00-00 SEALSEAL
-
2091312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
211TP-13895-00-00 HOSE, AIRHOSE, AIR
-
2290467-07093-00 CLIPCLIP
-
2390467-08092-00 CLIPCLIP
-
245S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2597002-05020-00 BOLTBOLT
-
2692902-05600-00 WASHER, PLATEWASHER, PLATE
-
271TP-14148-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
2890467-09037-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
2990467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
