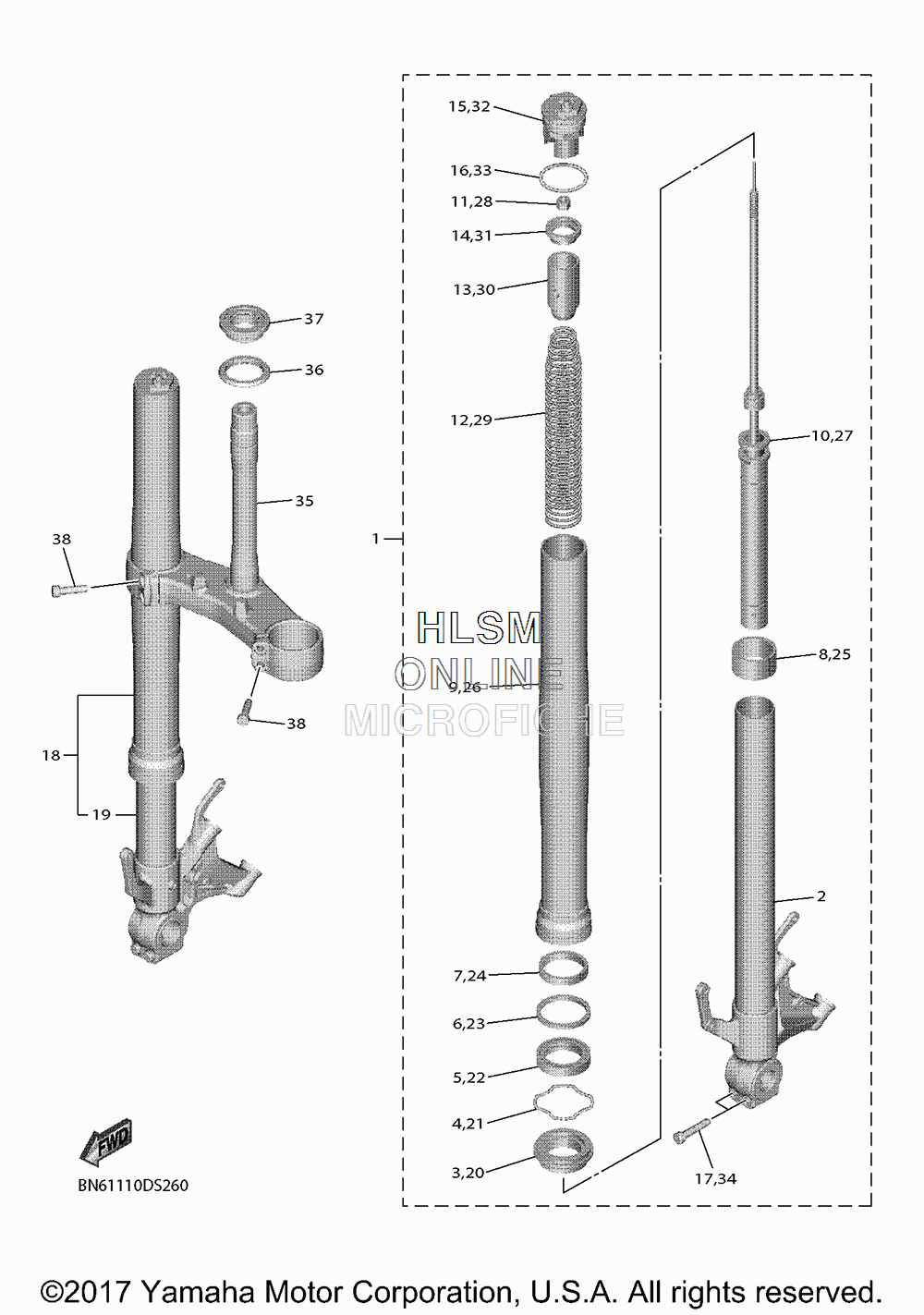

SUSPENSION - FRONT FORK для Yamaha YZFR6 - 2018 года выпуска`
-
№АртикулНазвание
-
1BN6-23102-00-00 FRONT FORK ASSY (L.H) (DPBMC - DEEP PURPLISH BLUE)FRONT FORK ASSY (L.H) (DPBMC - DEEP PURPLISH BLUE)
-
1BN6-23102-10-00 FRONT FORK ASSY (L.H) (MNM3 - MAT GRAY)FRONT FORK ASSY (L.H) (MNM3 - MAT GRAY)
-
1BN6-23102-10-00 FRONT FORK ASSY (L.H) (BWP1 - BLUISH WHITE)FRONT FORK ASSY (L.H) (BWP1 - BLUISH WHITE)
-
22CR-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
34PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
44V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
54PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
65PW-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
72CR-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
82CR-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
92CR-23136-00-00 ...TUBE, OUTER 2 (DPBMC - DEEP PURPLISH BLUE)...TUBE, OUTER 2 (DPBMC - DEEP PURPLISH BLUE)
-
92CR-23136-10-00 ...TUBE, OUTER 2 (MNM3 - MAT GRAY)...TUBE, OUTER 2 (MNM3 - MAT GRAY)
-
92CR-23136-10-00 ...TUBE, OUTER 2 (BWP1 - BLUISH WHITE)...TUBE, OUTER 2 (BWP1 - BLUISH WHITE)
-
10BN6-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
113LC-23357-00-00 ...NUT...NUT
-
12BN6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
132CR-23118-00-00 ...SPACER...SPACER
-
142CR-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
152CR-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
1639P-23147-00-00 ...O-RING...O-RING
-
1791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
18BN6-23103-00-00 FRONT FORK ASSY (R.H) (DPBMC - DEEP PURPLISH BLUE)FRONT FORK ASSY (R.H) (DPBMC - DEEP PURPLISH BLUE)
-
18BN6-23103-10-00 FRONT FORK ASSY (R.H) (MNM3 - MAT GRAY)FRONT FORK ASSY (R.H) (MNM3 - MAT GRAY)
-
18BN6-23103-10-00 FRONT FORK ASSY (R.H) (BWP1 - BLUISH WHITE)FRONT FORK ASSY (R.H) (BWP1 - BLUISH WHITE)
-
192CR-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
204PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
214V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
224PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
235PW-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
242CR-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
252CR-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
262CR-23136-00-00 ...TUBE, OUTER 2 (DPBMC - DEEP PURPLISH BLUE)...TUBE, OUTER 2 (DPBMC - DEEP PURPLISH BLUE)
-
262CR-23136-10-00 ...TUBE, OUTER 2 (MNM3 - MAT GRAY)...TUBE, OUTER 2 (MNM3 - MAT GRAY)
-
262CR-23136-10-00 ...TUBE, OUTER 2 (BWP1 - BLUISH WHITE)...TUBE, OUTER 2 (BWP1 - BLUISH WHITE)
-
27BN6-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
283LC-23357-00-00 ...NUT...NUT
-
29BN6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
302CR-23118-00-00 ...SPACER...SPACER
-
312CR-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
322CR-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
3339P-23147-00-00 ...O-RING...O-RING
-
3491314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
35BN6-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
363FV-23462-00-00 .SEAL, STEERING.SEAL, STEERING
-
3793399-99957-00 BEARINGBEARING
-
3891314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
