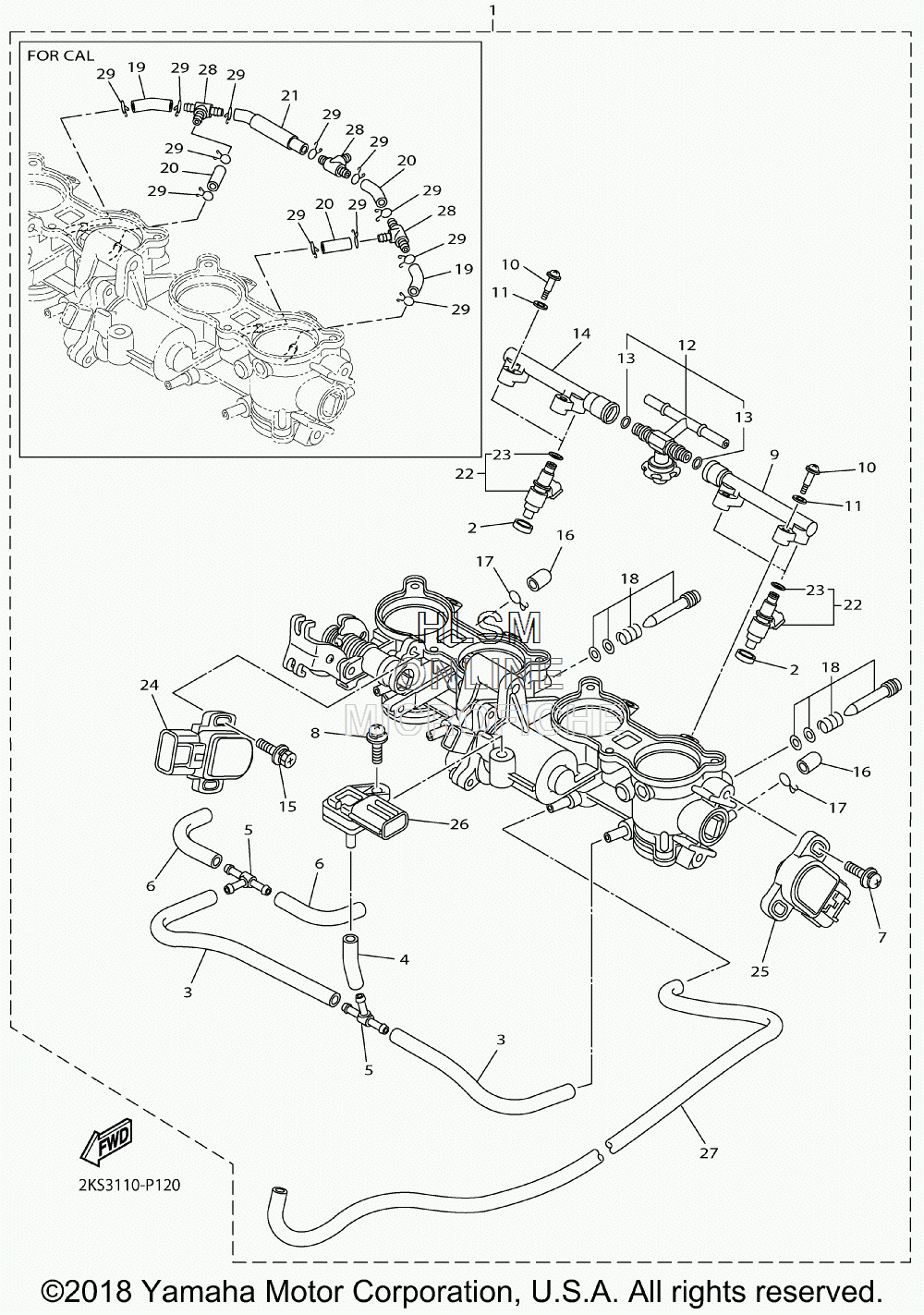

THROTTLE BODY ASSY для Yamaha YZFR1 - 2018 года выпуска`
-
№АртикулНазвание
-
12CR-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
12CR-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
35JW-14987-00-00 ...HOSE...HOSE
-
45FL-14348-10-00 ...PIPE 1...PIPE 1
-
568V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
68FP-14349-00-00 ...PIPE...PIPE
-
78CC-14216-10-00 ...SCREW...SCREW
-
82C0-14216-00-00 ...SCREW...SCREW
-
92CR-1393A-00-00 ...PIPE, INLET...PIPE, INLET
-
1014B-13573-00-00 ...BOLT 1...BOLT 1
-
11363-14198-00-00 ...GASKET...GASKET
-
122CR-13795-00-00 ...JOINT, THROTTLE BODY 1...JOINT, THROTTLE BODY 1
-
1339P-14147-00-00 ......O-RING......O-RING
-
142CR-1393B-00-00 ...PIPE, INLET 2...PIPE, INLET 2
-
155FL-14216-00-00 ...SCREW...SCREW
-
16895-14169-00-00 ...CAP...CAP
-
178A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
182C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
1914B-14466-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
2014B-14465-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
212CR-1443J-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
222C0-13761-00-00 ...INJECTOR...INJECTOR
-
235PS-14147-00-00 ......O-RING......O-RING
-
241MC-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
2513S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
261WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
272CR-14349-00-00 ...PIPE...PIPE
-
2890413-06031-00 ...WAY 3 (CALIF ONLY)...WAY 3 (CALIF ONLY)
-
2990467-100A1-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
