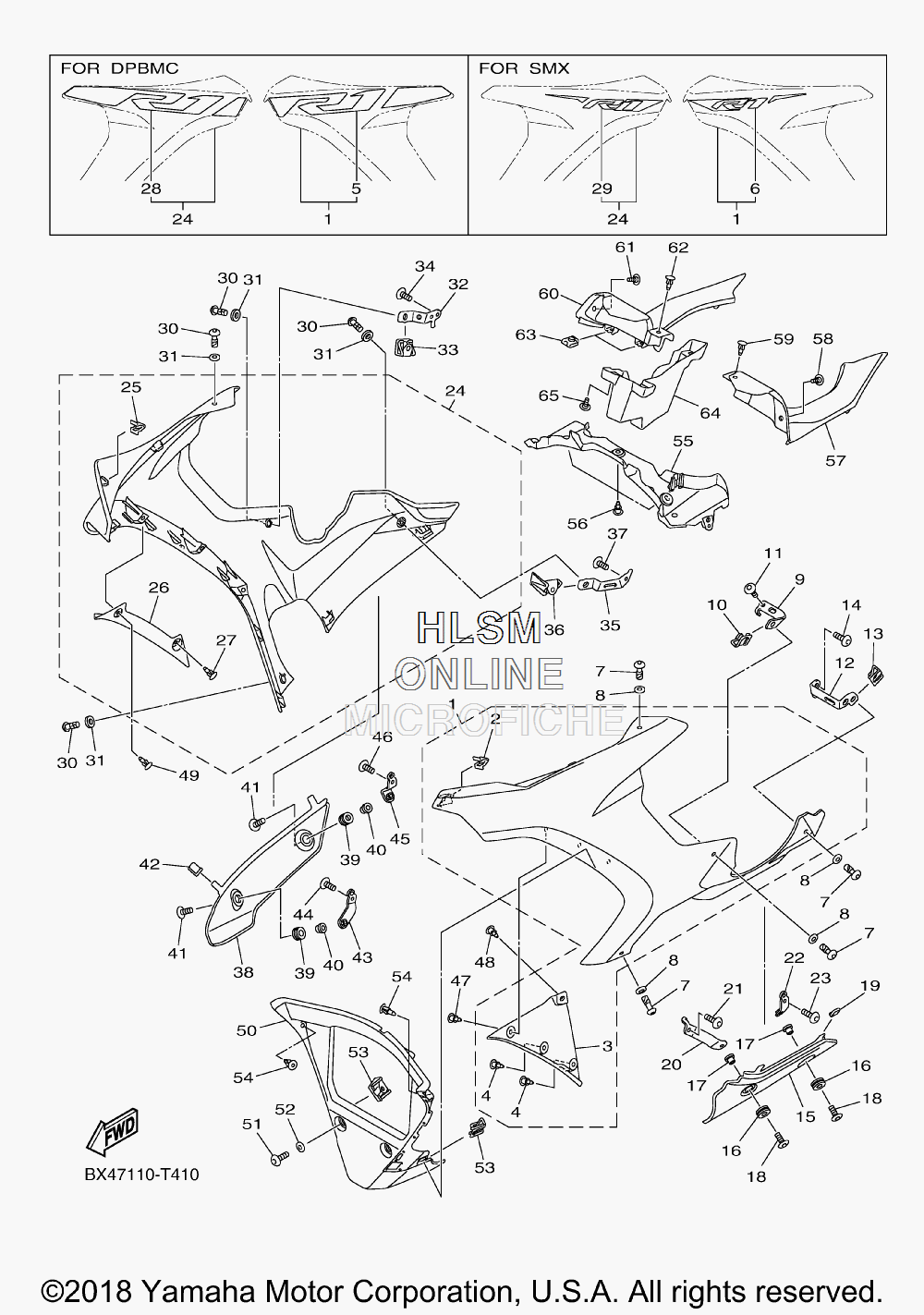

COWLING 2 для Yamaha YZFR1 - 2018 года выпуска
-
№АртикулНазвание
-
12CR-Y283U-E0-P4 PANEL ASSEMBLY 1 (DPBMC - DEEP PURPLISH BLUE)PANEL ASSEMBLY 1 (DPBMC - DEEP PURPLISH BLUE)
-
12CR-Y283U-F0-P2 PANEL ASSEMBLY 1 (SMX - BLACK METALLIC)PANEL ASSEMBLY 1 (SMX - BLACK METALLIC)
-
290468-040A0-00 ...CLIP...CLIP
-
32CR-2836K-00-00 ...PANEL, INNER 1...PANEL, INNER 1
-
490269-06008-00 ...RIVET...RIVET
-
5BX4-28391-20-00 ...GRAPHIC 1 (DPBMC - DEEP PURPLISH BLUE)...GRAPHIC 1 (DPBMC - DEEP PURPLISH BLUE)
-
6BX4-28391-30-00 ...GRAPHIC 1 (SMX - BLACK METALLIC)...GRAPHIC 1 (SMX - BLACK METALLIC)
-
72CR-28386-00-00 HEADHEAD
-
88HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
92CR-2833K-00-00 BRACKET 13BRACKET 13
-
102CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
122CR-2833L-00-00 BRACKET 14BRACKET 14
-
132CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
152CR-2834V-10-00 PROTECTOR 1PROTECTOR 1
-
1690480-14477-00 GROMMETGROMMET
-
1790387-06307-00 COLLARCOLLAR
-
1890111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
195PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
202CR-2833R-00-00 BRACKET, 17BRACKET, 17
-
2190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
222CR-2833T-00-00 BRACKET, 18BRACKET, 18
-
2390111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
242CR-Y283V-E0-P4 PANEL ASSEMBLY 2 (DPBMC - DEEP PURPLISH BLUE)PANEL ASSEMBLY 2 (DPBMC - DEEP PURPLISH BLUE)
-
242CR-Y283V-F0-P2 PANEL ASSEMBLY 2 (SMX - BLACK METALLIC)PANEL ASSEMBLY 2 (SMX - BLACK METALLIC)
-
2590468-040A0-00 ...CLIP...CLIP
-
262CR-2836L-00-00 ...PANEL, INNER 2...PANEL, INNER 2
-
2790269-06008-00 ...RIVET...RIVET
-
28BX4-28392-20-00 ...GRAPHIC 2 (DPBMC - DEEP PURPLISH BLUE)...GRAPHIC 2 (DPBMC - DEEP PURPLISH BLUE)
-
29BX4-28392-30-00 ...GRAPHIC 2 (SMX - BLACK METALLIC)...GRAPHIC 2 (SMX - BLACK METALLIC)
-
302CR-28386-00-00 HEADHEAD
-
318HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
322CR-2833M-00-00 BRACKET 15BRACKET 15
-
332CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
352CR-2833N-00-00 BRACKET 16BRACKET 16
-
362CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3790111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
382CR-2834W-10-00 PROTECTOR 2PROTECTOR 2
-
3990480-14477-00 GROMMETGROMMET
-
4090387-06307-00 COLLARCOLLAR
-
4190111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
425PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
432CR-2833U-00-00 BRACKET, 19BRACKET, 19
-
4490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
452CR-2833V-00-00 BRACKET, 20BRACKET, 20
-
4690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790269-06001-00 RIVETRIVET
-
4890269-06008-00 RIVETRIVET
-
4990269-06001-00 RIVETRIVET
-
502CR-2836M-00-P2 PANEL, INNER 3 (SMX - BLACK METALLIC)PANEL, INNER 3 (SMX - BLACK METALLIC)
-
502CR-2836M-00-P5 PANEL, INNER 3 (DPBMC - DEEP PURPLISH BLUE)PANEL, INNER 3 (DPBMC - DEEP PURPLISH BLUE)
-
5190149-06302-00 SCREWSCREW
-
5290387-06309-00 COLLARCOLLAR
-
532CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
5490269-06008-00 RIVETRIVET
-
552CR-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
5690269-06008-00 RIVETRIVET
-
572CR-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
5890111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5990269-06008-00 RIVETRIVET
-
602CR-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
6190111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6290269-06008-00 RIVETRIVET
-
6390183-05076-00 NUT, SPRINGNUT, SPRING
-
642CR-2838K-00-00 BOX 1BOX 1
-
6590111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
