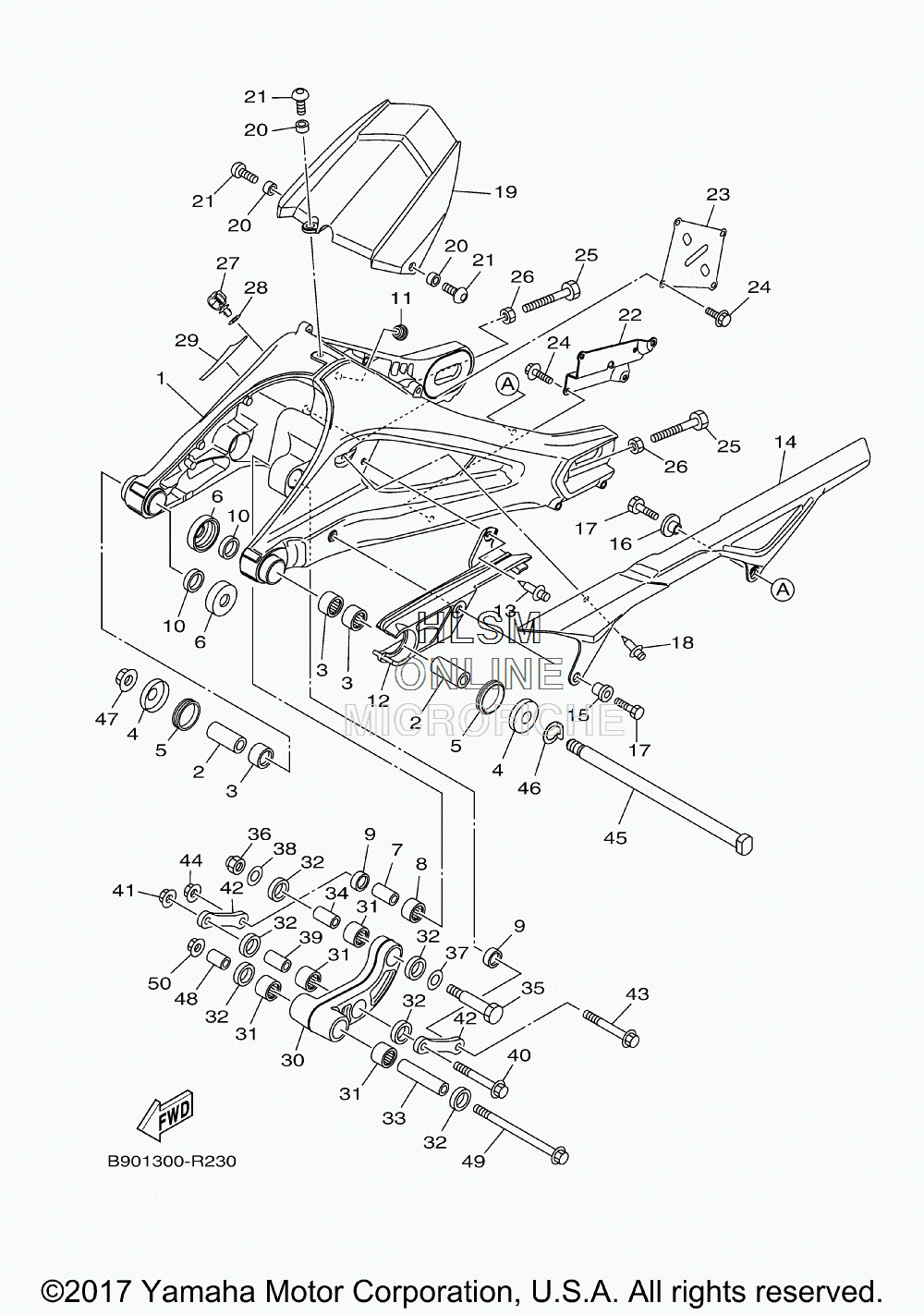

SUSPENSION - REAR ARM для Yamaha XSR 900 - 2018 года выпуска`
-
№АртикулНазвание
-
1B90-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
290380-16134-00 BUSH, SOLIDBUSH, SOLID
-
393317-22262-00 BEARINGBEARING
-
430X-2219X-00-00 COVERCOVER
-
593108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
620S-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
790387-102R4-00 COLLARCOLLAR
-
893315-31758-00 BEARINGBEARING
-
993109-17071-00 OIL SEALOIL SEAL
-
1093106-22002-00 OIL SEALOIL SEAL
-
1190480-12012-00 GROMMETGROMMET
-
121RC-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1390269-07007-00 RIVETRIVET
-
141RC-22311-00-00 CASE, CHAINCASE, CHAIN
-
1590387-062X0-00 COLLARCOLLAR
-
1690387-06066-00 COLLARCOLLAR
-
1797002-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1890269-07007-00 RIVETRIVET
-
191RC-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
2090387-06022-00 COLLARCOLLAR
-
2190111-06161-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
221RC-2221A-00-00 BRACKET 1BRACKET 1
-
231RC-2221B-00-00 BRACKET 2BRACKET 2
-
2490105-06126-00 BOLT, FLANGEBOLT, FLANGE
-
2590101-08013-00 BOLTBOLT
-
2695302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
2790464-18002-00 CLAMPCLAMP
-
2890202-07164-00 WASHER, PLATEWASHER, PLATE
-
291RC-22358-00-00 SEAL 1SEAL 1
-
301RC-2217A-00-00 ARM, RELAYARM, RELAY
-
3193315-31758-00 BEARINGBEARING
-
3293109-17071-00 OIL SEALOIL SEAL
-
333GB-23448-00-00 SPACERSPACER
-
3490387-127W0-00 COLLARCOLLAR
-
3590109-10027-00 BOLTBOLT
-
3695612-10100-00 NUT, UNUT, U
-
3790201-13015-00 WASHER, PLATEWASHER, PLATE
-
3890201-10035-00 WASHER, PLATEWASHER, PLATE
-
3990387-102R4-00 COLLARCOLLAR
-
4090105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
4195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
421RC-2217M-00-00 ARM 1ARM 1
-
4390105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
4495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4546X-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
461RC-22159-00-00 WASHER, SPRING LOWERWASHER, SPRING LOWER
-
4795602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890387-10106-00 COLLARCOLLAR
-
4990105-10174-00 BOLT, FLANGEBOLT, FLANGE
-
5095602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
