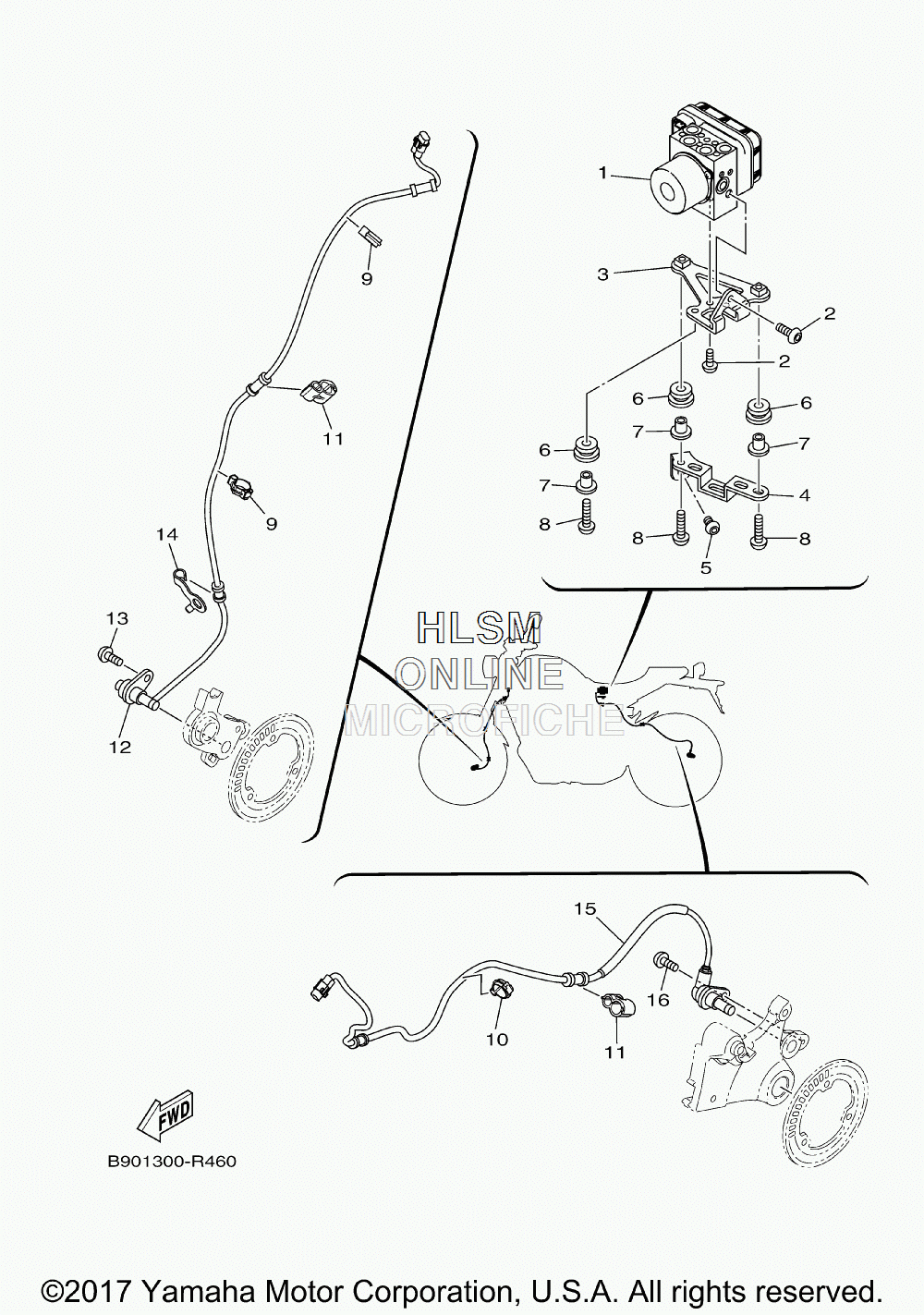

ELECTRICAL 3 для Yamaha XSR 900 - 2018 года выпуска`
-
№АртикулНазвание
-
1B50-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
32DR-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
42DR-85542-00-00 BRACKETBRACKET
-
590111-06085-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
690480-13567-00 GROMMETGROMMET
-
790387-06160-00 COLLARCOLLAR
-
892012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990464-12013-00 CLAMPCLAMP
-
1090464-14003-00 CLAMPCLAMP
-
1190464-10233-00 CLAMPCLAMP
-
12B90-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
1392014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
142DR-23318-00-00 WIRE, HOLDER 1WIRE, HOLDER 1
-
152DR-85980-01-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1692014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
