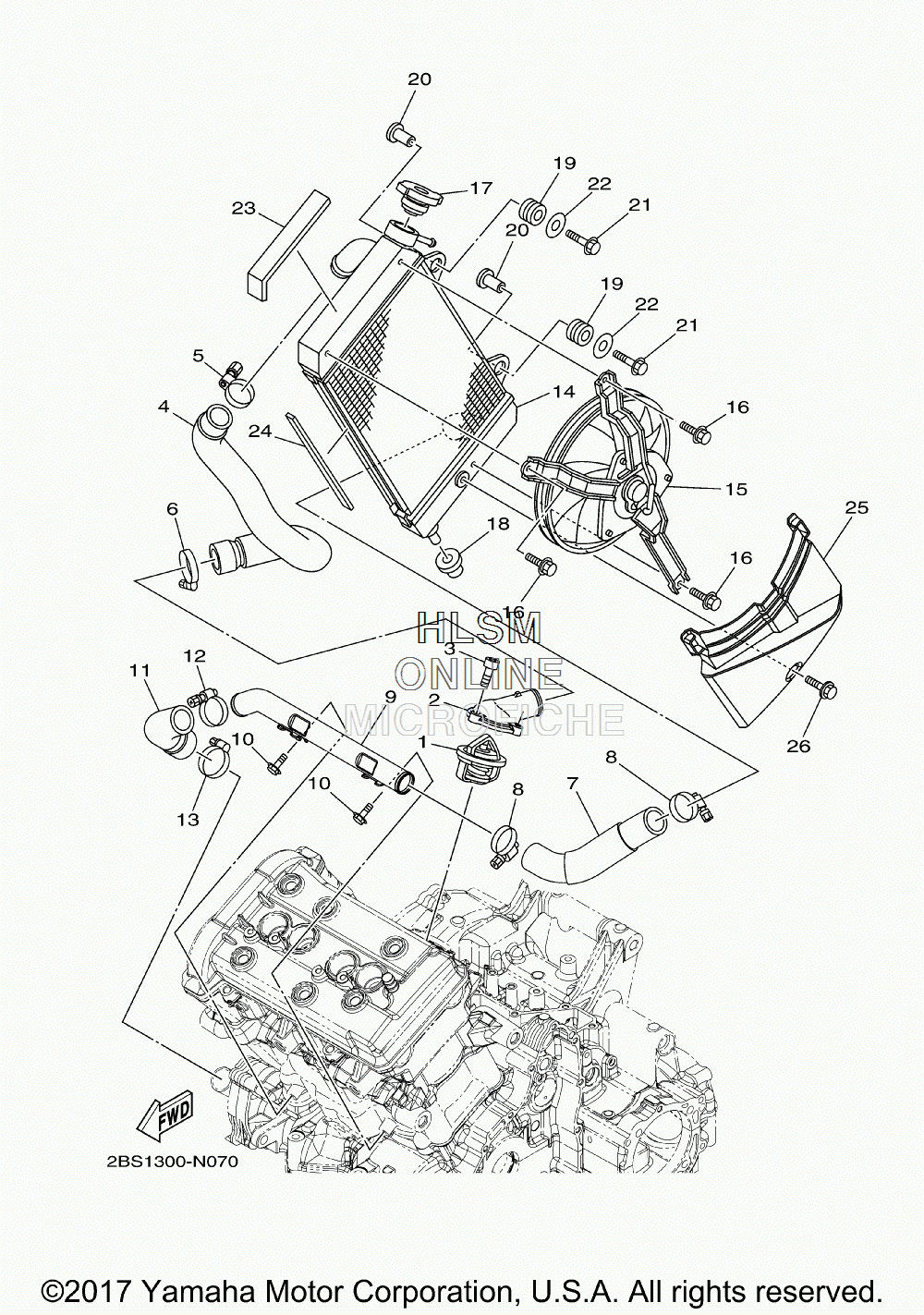

RADIATOR для Yamaha SUPER TENERE - 2018 года выпуска`
-
№АртикулНазвание
-
123P-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
223P-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
391312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
423P-12576-00-00 HOSE 1HOSE 1
-
590450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
690450-38003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
723P-12578-00-00 HOSE 3HOSE 3
-
890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
923P-12483-00-00 PIPE 3PIPE 3
-
1095824-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1123P-12588-00-00 HOSE 5HOSE 5
-
1290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390450-38003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1423P-12461-00-00 RADIATOR COMPRADIATOR COMP
-
1523P-12405-01-00 BLOWER ASSYBLOWER ASSY
-
163D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
1722W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
1890480-20003-00 GROMMETGROMMET
-
1990480-17010-00 GROMMETGROMMET
-
2090387-06256-00 COLLARCOLLAR
-
2195812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2290201-06095-00 WASHER, PLATEWASHER, PLATE
-
234D9-21747-00-00 DAMPERDAMPER
-
244FU-21747-00-00 DAMPERDAMPER
-
2523P-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
2690119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
