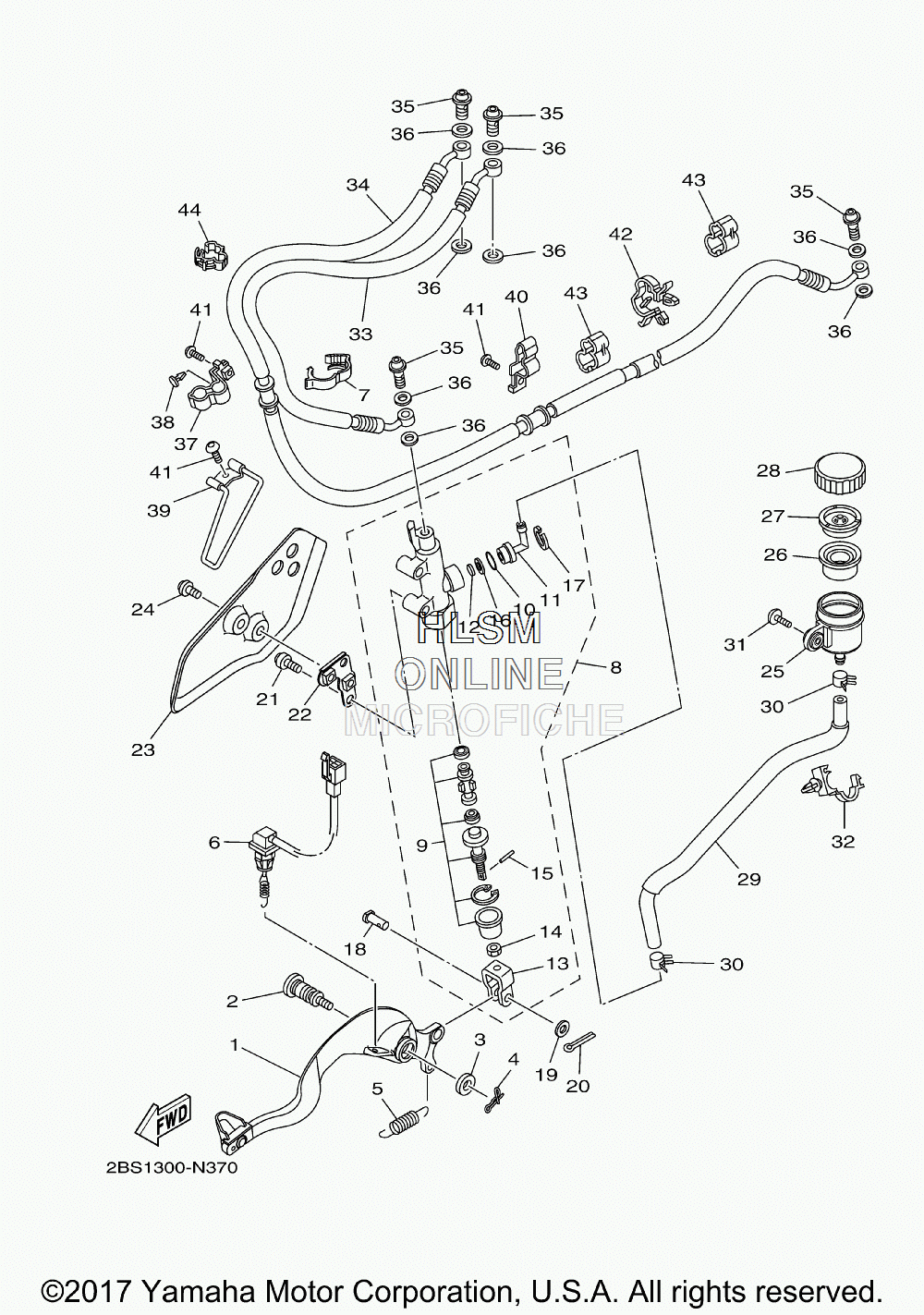

BRAKE - REAR MASTER CYLINDER для Yamaha SUPER TENERE - 2018 года выпуска`
-
№АртикулНазвание
-
123P-27200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25XC-27217-90-00 BOLTBOLT
-
390201-08060-00 WASHER, PLATEWASHER, PLATE
-
490468-16191-00 CLIPCLIP
-
590506-20193-00 SPRING, TENSIONSPRING, TENSION
-
62BS-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
790464-16003-00 CLAMPCLAMP
-
823P-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
923P-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
1093210-15620-00 ...O-RING...O-RING
-
114ML-2582A-50-00 ...JOINT...JOINT
-
1223P-2586G-00-00 ...FILTER...FILTER
-
1323P-27222-00-00 ...JOINT...JOINT
-
144SS-27218-00-00 ...NUT...NUT
-
153KW-27234-00-00 ...PIN, BRAKE ROD...PIN, BRAKE ROD
-
1623P-2586H-00-00 ...PLATE, FILTER...PLATE, FILTER
-
172VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
1890240-08120-00 PIN, CLEVISPIN, CLEVIS
-
1990201-08044-00 WASHER, PLATEWASHER, PLATE
-
2091402-20012-00 PIN, COTTERPIN, COTTER
-
2192012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
222BS-27432-00-00 BRACKET 1BRACKET 1
-
232BS-27446-00-00 PLATE 2PLATE 2
-
2490111-08037-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
252D1-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
265SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
275SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
285SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
2923P-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
3090467-120A3-00 CLIPCLIP
-
3190119-05021-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290464-17003-00 CLAMPCLAMP
-
3323P-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
3423P-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
3590401-10172-00 BOLT, UNIONBOLT, UNION
-
3690430-10005-00 GASKETGASKET
-
3723P-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3890269-07011-00 RIVETRIVET
-
3923P-27911-00-00 HOLDERHOLDER
-
4023P-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4290464-23239-00 CLAMPCLAMP
-
4390464-10233-00 CLAMPCLAMP
-
4490464-12013-00 CLAMPCLAMP
