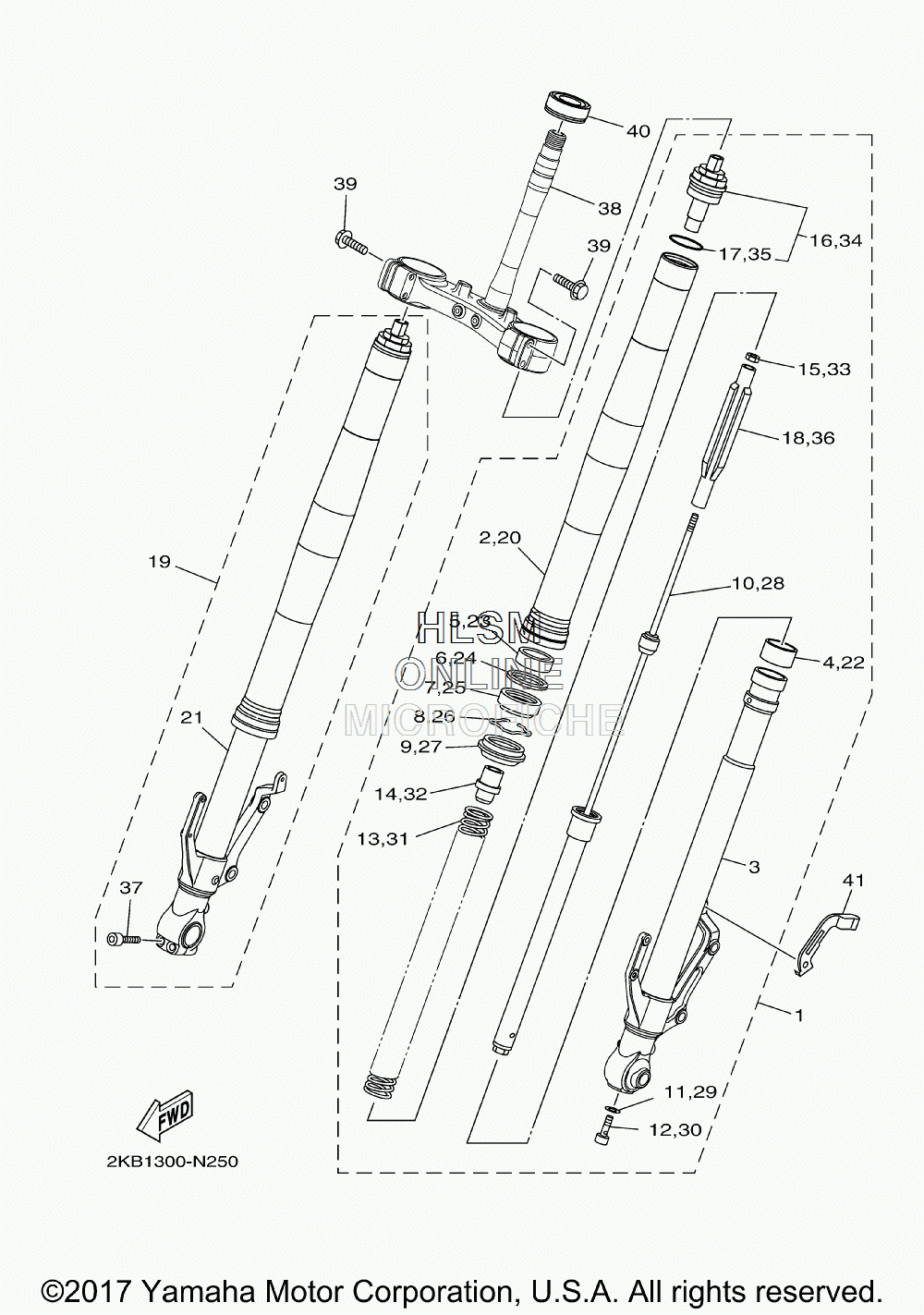

SUSPENSION - FRONT FORK для Yamaha SUPER TENERE ES - 2018 года выпуска`
-
№АртикулНазвание
-
12KB-23102-20-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
22BS-23136-20-00 ...TUBE, OUTER 2 (LEFT)...TUBE, OUTER 2 (LEFT)
-
32KB-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
45EB-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
55EB-23125-00-00 ...METAL, SLIDE 1 (KYB)...METAL, SLIDE 1 (KYB)
-
64V4-23146-L0-00 ...WASHER, OIL SEAL (KYB)...WASHER, OIL SEAL (KYB)
-
74PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
84V4-23153-L0-00 ...RING, SNAP (KYB)...RING, SNAP (KYB)
-
94PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
102KB-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
11509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
12278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
132KB-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
142KB-23118-00-00 ...SPACER...SPACER
-
153LC-23357-00-00 ...NUT...NUT
-
162KB-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1739P-23147-00-00 ......O-RING......O-RING
-
182KB-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
192KB-23103-20-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
202BS-23136-20-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
212KB-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
225EB-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
235EB-23125-00-00 ...METAL, SLIDE 1 (KYB)...METAL, SLIDE 1 (KYB)
-
244V4-23146-L0-00 ...WASHER, OIL SEAL (KYB)...WASHER, OIL SEAL (KYB)
-
254PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
264V4-23153-L0-00 ...RING, SNAP (KYB)...RING, SNAP (KYB)
-
274PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
282KB-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
29509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
30278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
312KB-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
322KB-23118-00-00 ...SPACER...SPACER
-
333LC-23357-00-00 ...NUT...NUT
-
342KB-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3539P-23147-00-00 ......O-RING......O-RING
-
362KB-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
3791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3823P-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3995022-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4093332-00081-00 BEARINGBEARING
-
4123P-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
