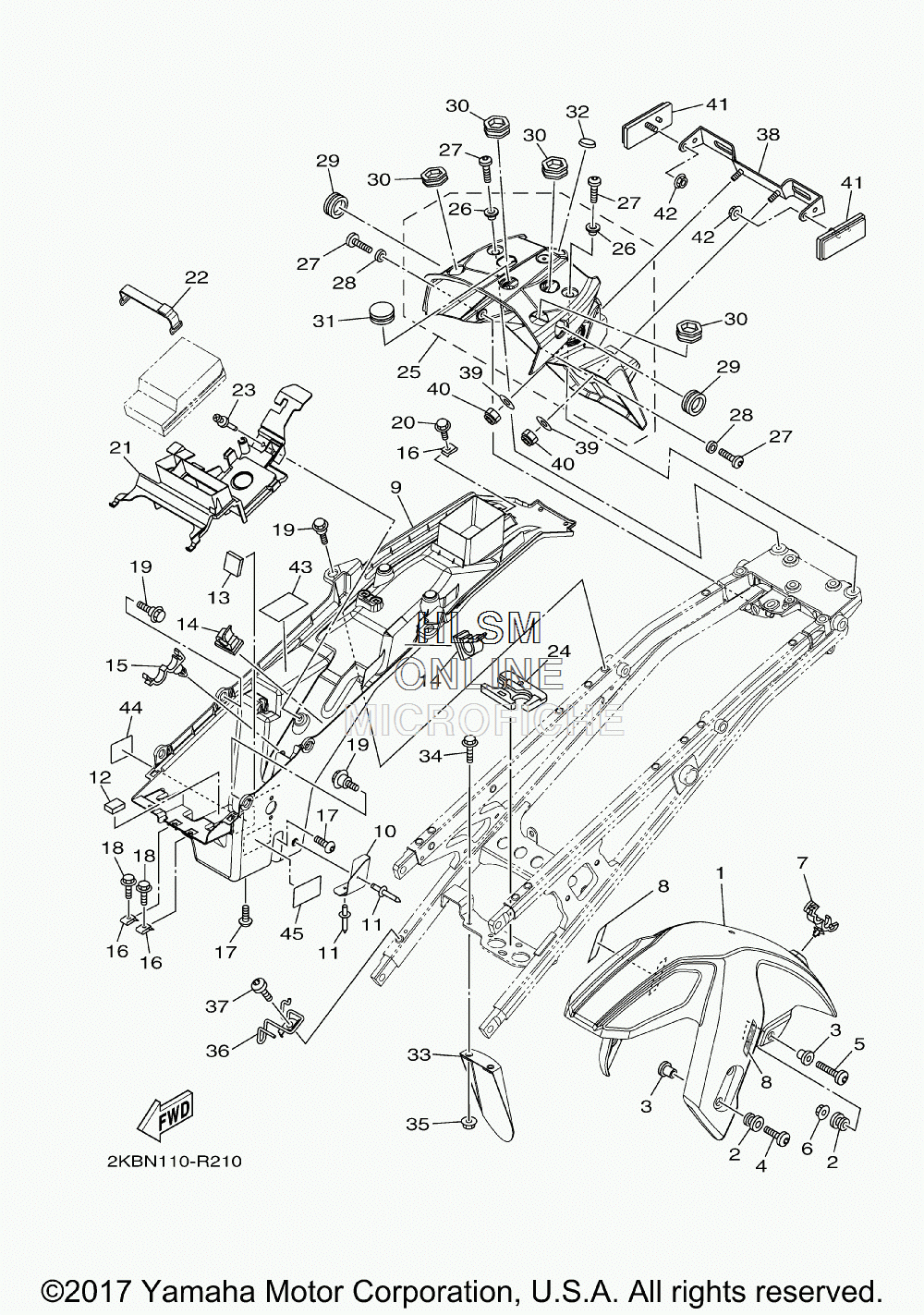

FENDER - FRONT / REAR для Yamaha SUPER TENERE ES - 2018 года выпуска`
-
№АртикулНазвание
-
123P-21511-00-P6 FENDER, FRONT (MBL2 - MAT BLACK FOR DPBMC - BLUE)FENDER, FRONT (MBL2 - MAT BLACK FOR DPBMC - BLUE)
-
290480-12072-00 GROMMETGROMMET
-
390387-06265-00 COLLARCOLLAR
-
490110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790464-18002-00 CLAMPCLAMP
-
82BS-21578-00-00 EMBLEMEMBLEM
-
923P-2160E-00-00 BOXBOX
-
1023P-21652-00-00 PROTECTORPROTECTOR
-
1190267-40076-00 RIVET, BLINDRIVET, BLIND
-
124D9-24741-00-00 PAD, SEATPAD, SEAT
-
133KJ-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
1490464-20021-00 CLAMPCLAMP
-
1590464-20010-00 CLAMPCLAMP
-
1690183-060A6-00 NUT, SPRINGNUT, SPRING
-
1792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1990109-06208-00 BOLTBOLT
-
2095802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
212KB-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
222D1-82131-00-00 BAND, BATTERYBAND, BATTERY
-
2390269-06081-00 RIVETRIVET
-
2423P-21639-00-00 DAMPER 2DAMPER 2
-
2523P-21685-10-00 BRACKET, LICENSEBRACKET, LICENSE
-
2690387-06648-00 ...COLLAR...COLLAR
-
2790111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890201-06778-00 WASHER, PLATEWASHER, PLATE
-
2923P-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
3023P-21649-00-00 DAMPERDAMPER
-
3190338-28239-00 PLUGPLUG
-
324XV-2341B-00-00 EMBLEMEMBLEM
-
3323P-21642-00-00 GUARD, FLAPGUARD, FLAP
-
3490119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590179-06403-00 NUTNUT
-
362KB-21339-00-00 GUIDE, WIREGUIDE, WIRE
-
3792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3823P-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3990201-062A8-00 WASHER, PLATEWASHER, PLATE
-
4095602-06100-00 NUT, S/LNUT, S/L
-
413Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4295707-05500-00 NUT, FLANGENUT, FLANGE
-
435PS-21668-10-00 LABEL, TIRELABEL, TIRE
-
445RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
4534B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
