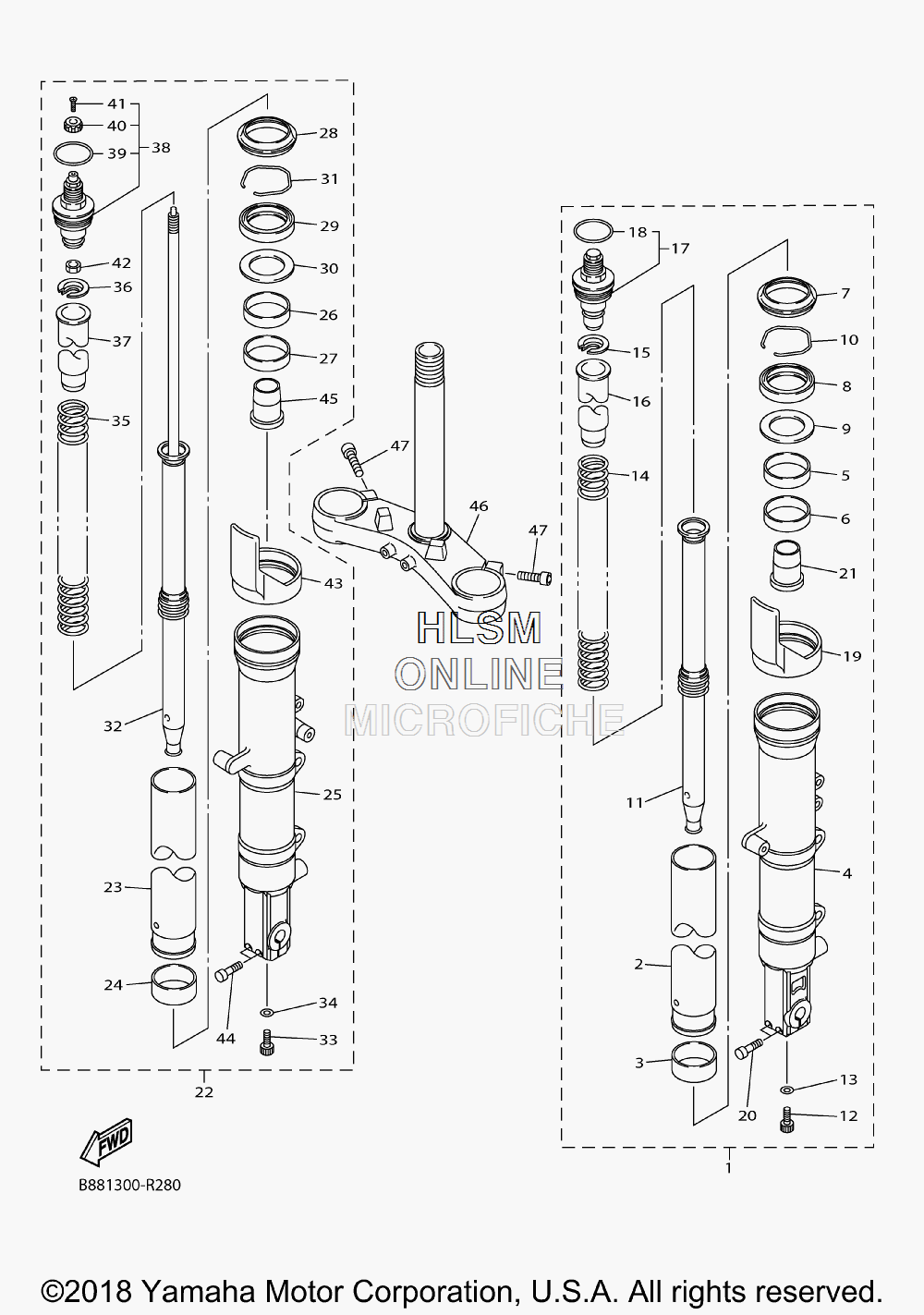

SUSPENSION - FRONT FORK для Yamaha FJR1300P POLICE - 2018 года выпуска`
-
№АртикулНазвание
-
11MC-23102-10-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
21MC-23110-10-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
35XE-23171-L0-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
41MC-23126-10-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
55XE-23125-L0-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
63P6-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
74SV-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
84SV-23145-01-00 ...OIL SEAL...OIL SEAL
-
91MC-23115-10-00 ...SEAT 1...SEAT 1
-
101MC-23156-10-00 ...RING, SNAP...RING, SNAP
-
111MC-2315K-10-00 ...CYLINDER COMP., 2...CYLINDER COMP., 2
-
125UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
13509-23158-L0-00 ...GASKET...GASKET
-
141MC-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
155UX-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
161MC-23118-20-00 ...SPACER...SPACER
-
171MC-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
181C3-23188-L0-00 ......O-RING......O-RING
-
194SV-2331G-00-00 ...COVER...COVER
-
2091314-08045-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
211MC-23173-10-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
221MC-23103-10-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
231MC-23110-10-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
245XE-23171-L0-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
251MC-23107-10-00 ...OUTER TUBE COMP....OUTER TUBE COMP.
-
265XE-23125-L0-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
273P6-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
284SV-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
294SV-23145-01-00 ...OIL SEAL...OIL SEAL
-
301MC-23115-10-00 ...SEAT 1...SEAT 1
-
311MC-23156-10-00 ...RING, SNAP...RING, SNAP
-
321MC-2315L-10-00 ......CYLINDER COMP., 3......CYLINDER COMP., 3
-
335UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
34509-23158-L0-00 ...GASKET...GASKET
-
351MC-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
365UX-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
371MC-23118-20-00 ...SPACER...SPACER
-
381MC-2311J-10-00 ...BOLT, CAP 2...BOLT, CAP 2
-
391C3-23188-L0-00 ......O-RING......O-RING
-
405JW-2319W-00-00 ......KNOB (TEN)......KNOB (TEN)
-
411MC-23119-10-00 ......SCREW......SCREW
-
425UX-23778-00-00 ...NUT...NUT
-
434SV-2331G-00-00 ...COVER...COVER
-
4491314-08045-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
451MC-23173-10-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
461MC-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4791312-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
