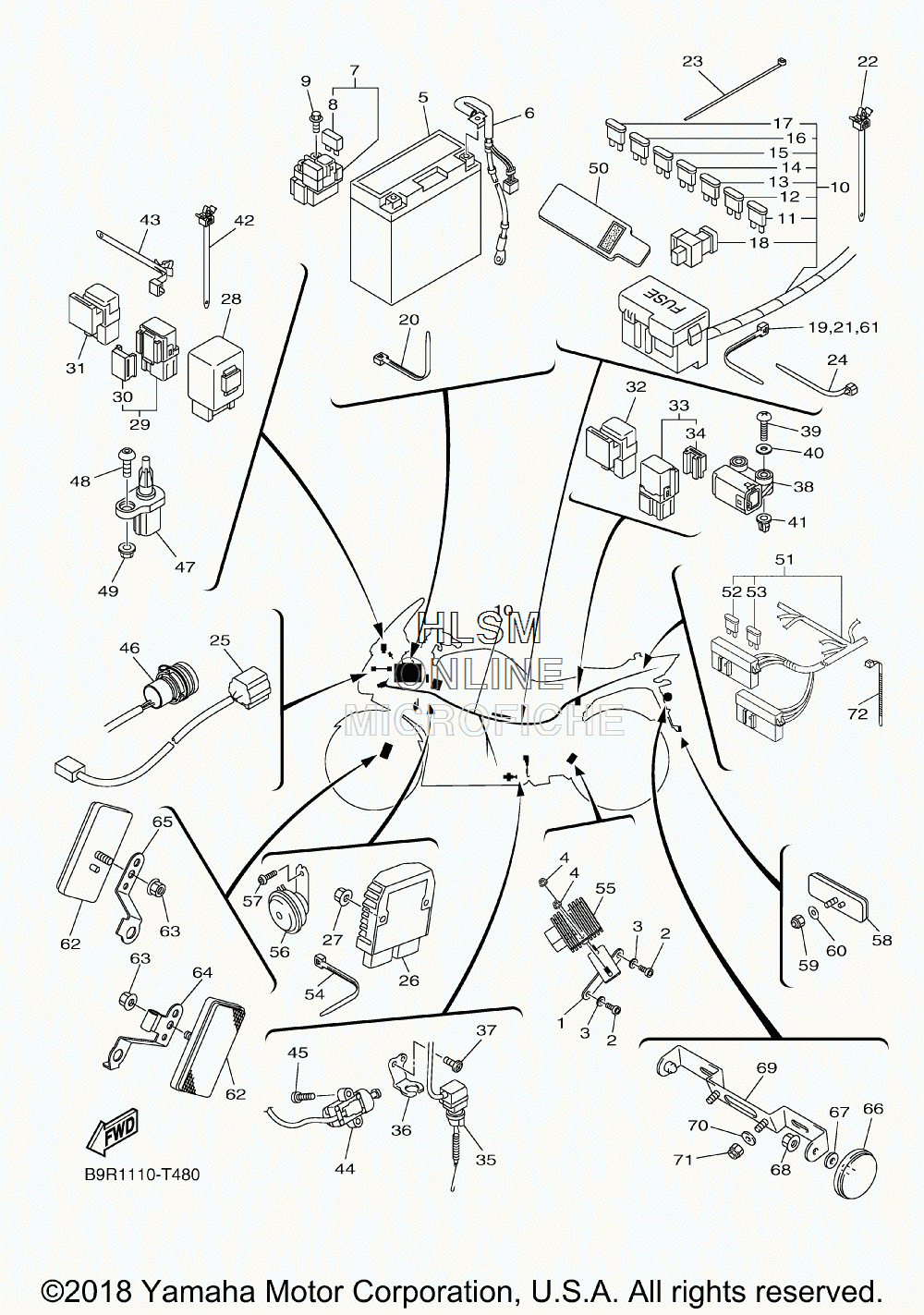

ELECTRICAL 2 для Yamaha FJR1300P POLICE - 2018 года выпуска`
-
№АртикулНазвание
-
15P5-21287-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
291317-08016-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
392907-08600-00 WASHER, PLATEWASHER, PLATE
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
55EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
61MC-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
73D7-81940-00-00 STARTER RELAY ASSY (RC19-076A)STARTER RELAY ASSY (RC19-076A)
-
81AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
995022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
10B9R-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
115JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
125JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
135JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
145JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
155JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
165JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
171MC-82151-00-00 ...FUSE (1A-BL)...FUSE (1A-BL)
-
185JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
191UA-82591-00-00 BANDBAND
-
2090465-10098-00 CLAMPCLAMP
-
211UA-82591-00-00 BANDBAND
-
2290464-12036-00 CLAMPCLAMP
-
235Y9-12491-00-00 CLAMP 1CLAMP 1
-
2490464-13073-00 CLAMPCLAMP
-
251MC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
261D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
285VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
291ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
305JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
315DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
325DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
331TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
345EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
351MC-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
361MC-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3798902-05008-00 SCREW, BINDSCREW, BIND
-
385PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3997702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
4090201-04030-00 WASHER, PLATEWASHER, PLATE
-
414B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
4290464-12036-00 CLAMPCLAMP
-
4390464-20213-00 CLAMPCLAMP
-
441MC-82566-01-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4590157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
463P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
475YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4892012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4995702-05500-00 NUT, FLANGENUT, FLANGE
-
502D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
512BC-82507-00-00 WIRE, LEADWIRE, LEAD
-
525JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
535JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
541UA-82591-00-00 BANDBAND
-
555P5-81970-00-00 RECTIFIER ASSYRECTIFIER ASSY
-
56B88-83371-00-00 HORNHORN
-
5792012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
583Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5995602-05100-00 NUT, UNUT, U
-
6090201-05043-00 WASHER, PLATEWASHER, PLATE
-
611UA-82591-00-00 BANDBAND
-
6211H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
6395702-05500-00 NUT, FLANGENUT, FLANGE
-
643P6-85112-10-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
653P6-85122-01-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
66449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
6790201-05036-00 WASHER, PLATEWASHER, PLATE
-
6895702-05500-00 NUT, FLANGENUT, FLANGE
-
69B88-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
7090201-06076-00 WASHER, PLATEWASHER, PLATE
-
7195602-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
7290464-25004-00 CLAMPCLAMP
