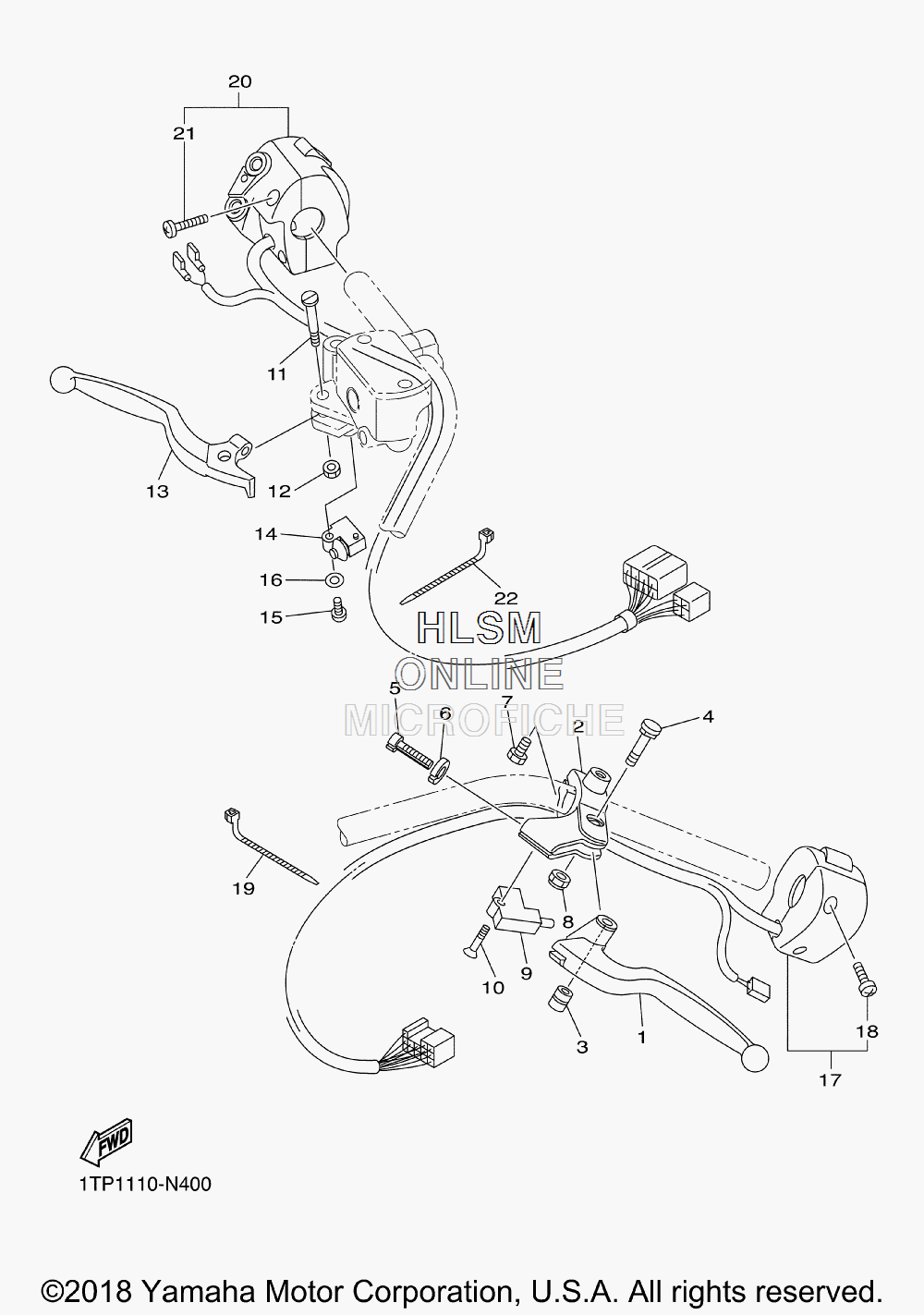

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BOLT - 2018 года выпуска`
-
№АртикулНазвание
-
15BN-83912-20-00 LEVER 1LEVER 1
-
25BN-82911-20-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
34TR-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
44TR-83945-10-00 BOLT, LEVERBOLT, LEVER
-
590123-08083-00 BOLTBOLT
-
690179-08316-00 NUTNUT
-
797007-06020-00 BOLTBOLT
-
895607-06100-00 NUT, UNUT, U
-
93YX-82917-01-00 SWITCHSWITCH
-
1098702-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
115VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1295602-06100-00 NUT, S/LNUT, S/L
-
133D8-83922-10-00 LEVER 2LEVER 2
-
1436Y-82917-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1598502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692902-04600-00 WASHER, PLATEWASHER, PLATE
-
171TP-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1898507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1990464-13073-00 CLAMPCLAMP
-
201TP-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
2198507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2290464-13073-00 CLAMPCLAMP
