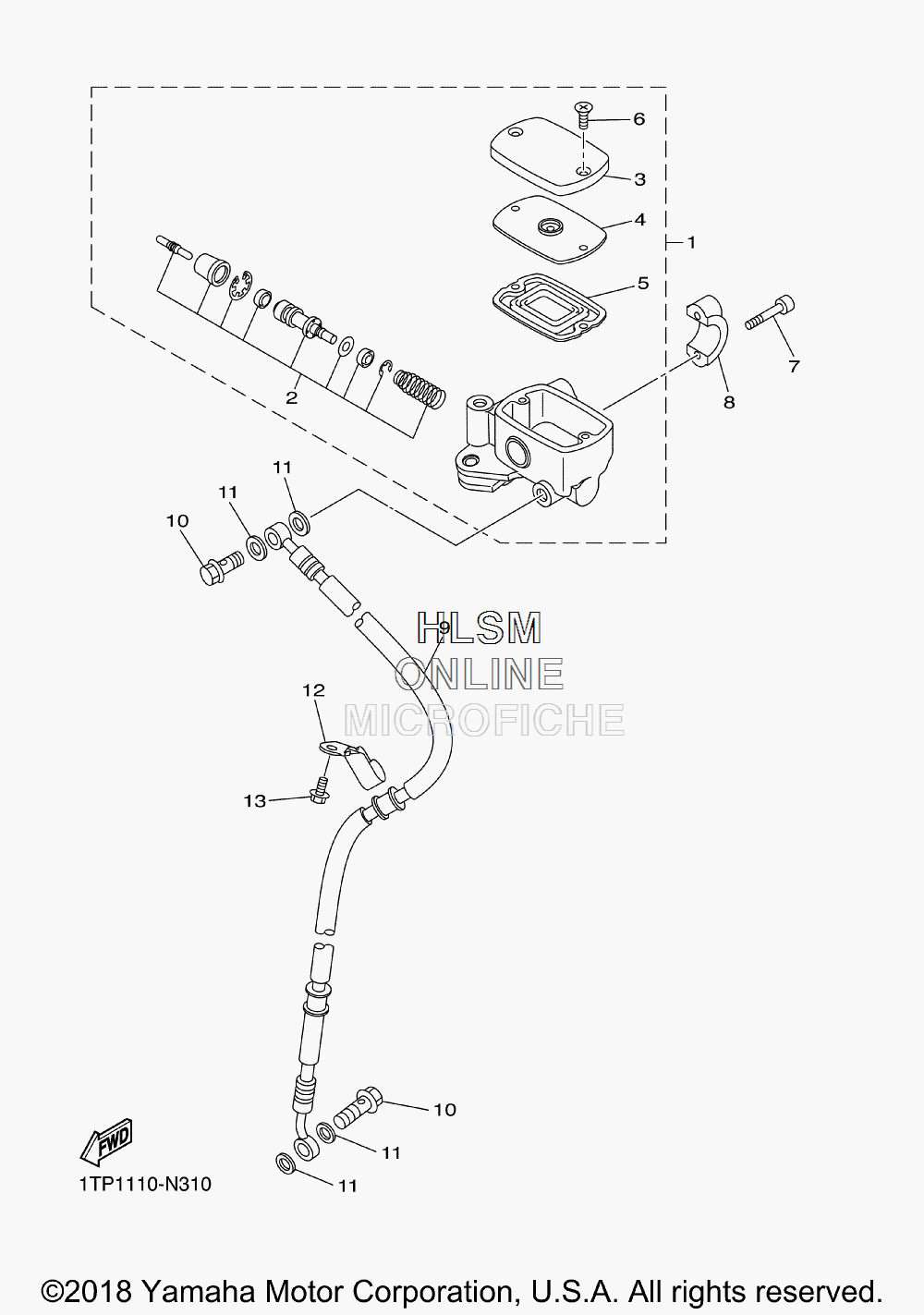

BRAKE - FRONT MASTER CYLINDER для Yamaha BOLT - 2018 года выпуска`
-
№АртикулНазвание
-
11TP-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
21TP-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34B5-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
44B5-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
54B5-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-26332-00-00 BOLTBOLT
-
83D8-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
91TP-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090401-10020-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
-
121TP-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
1395027-06010-00 BOLT, FLANGEBOLT, FLANGE
