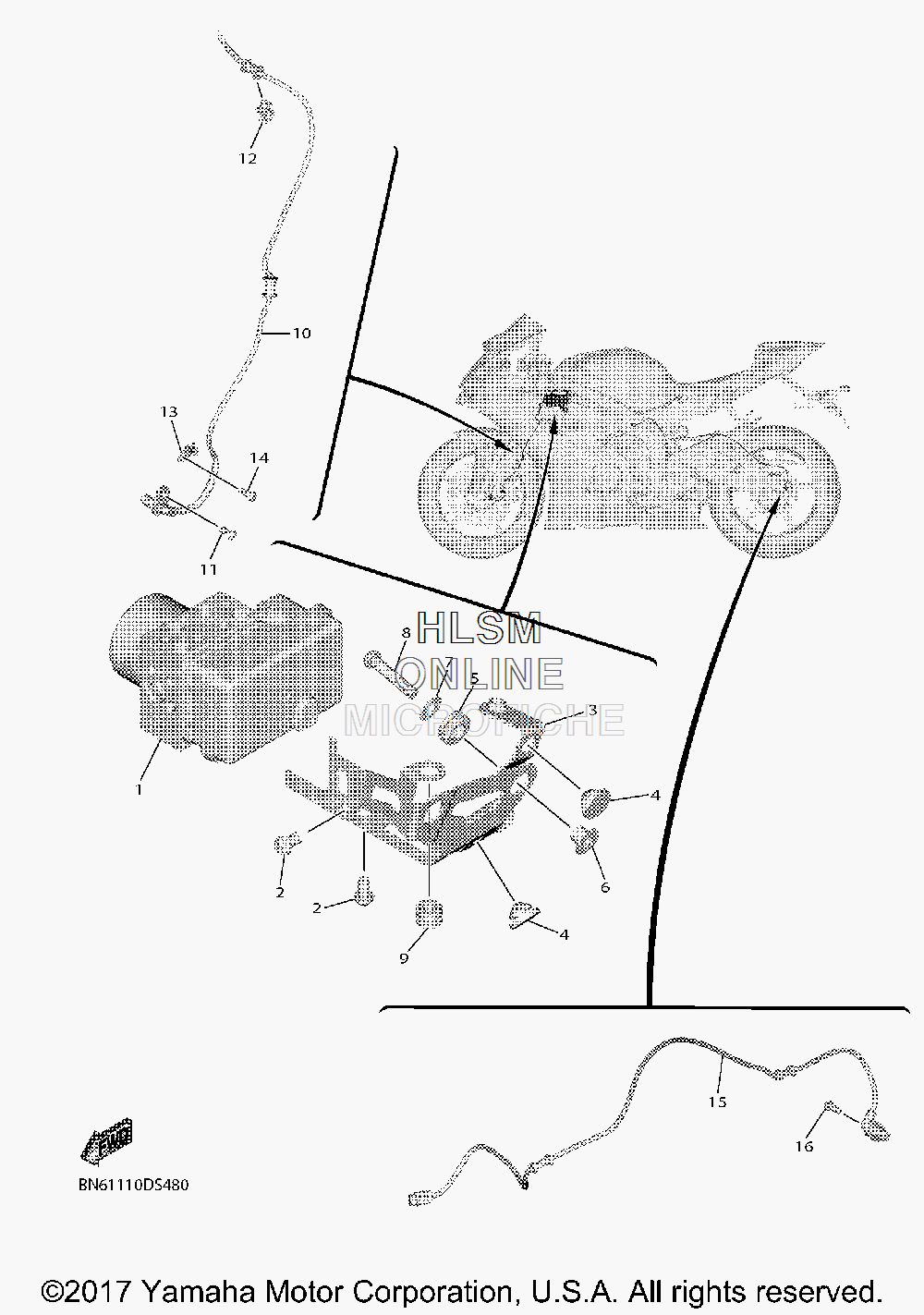

ELECTRICAL 3 для Yamaha YZFR6 - 2017 года выпуска`
-
№АртикулНазвание
-
1BN6-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3BN6-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
490338-09127-00 PLUGPLUG
-
590480-13003-00 GROMMETGROMMET
-
690560-06201-00 SPACERSPACER
-
790201-06089-00 WASHER, PLATEWASHER, PLATE
-
892012-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990480-10517-00 GROMMETGROMMET
-
10BN6-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
1192017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290464-09129-00 CLAMPCLAMP
-
132CR-23317-00-00 HOLDER, CABLEHOLDER, CABLE
-
1492017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
15BN6-85980-00-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1692017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
