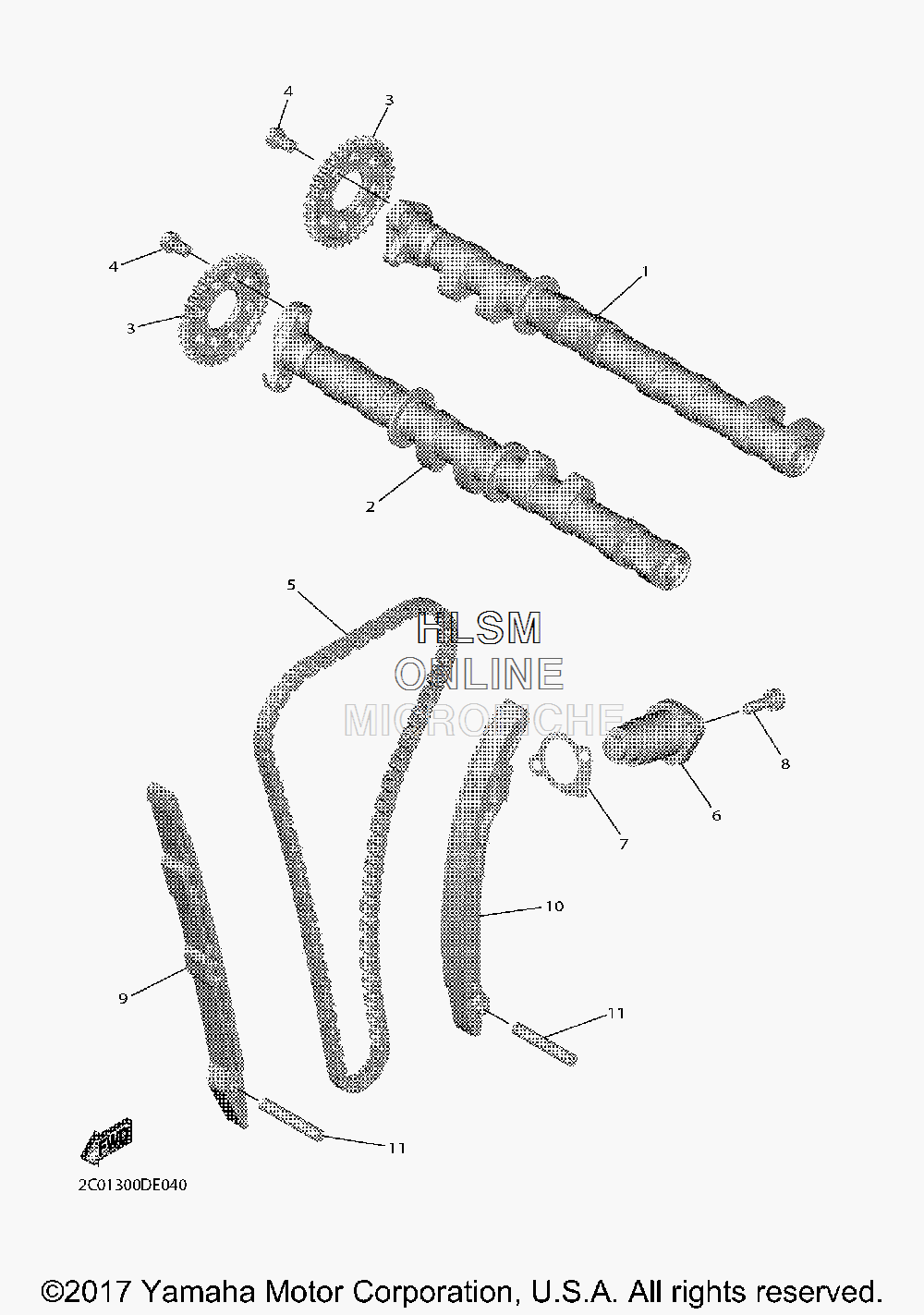

CAMSHAFT W/ CHAIN для Yamaha YZFR6 - 2017 года выпуска`
-
№АртикулНазвание
-
113S-12170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
213S-12180-01-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
32C0-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-64118-00 CHAINCHAIN
-
613S-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
72C0-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
890110-06106-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
92C0-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
1013S-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1193607-44002-00 PIN, DOWELPIN, DOWEL
