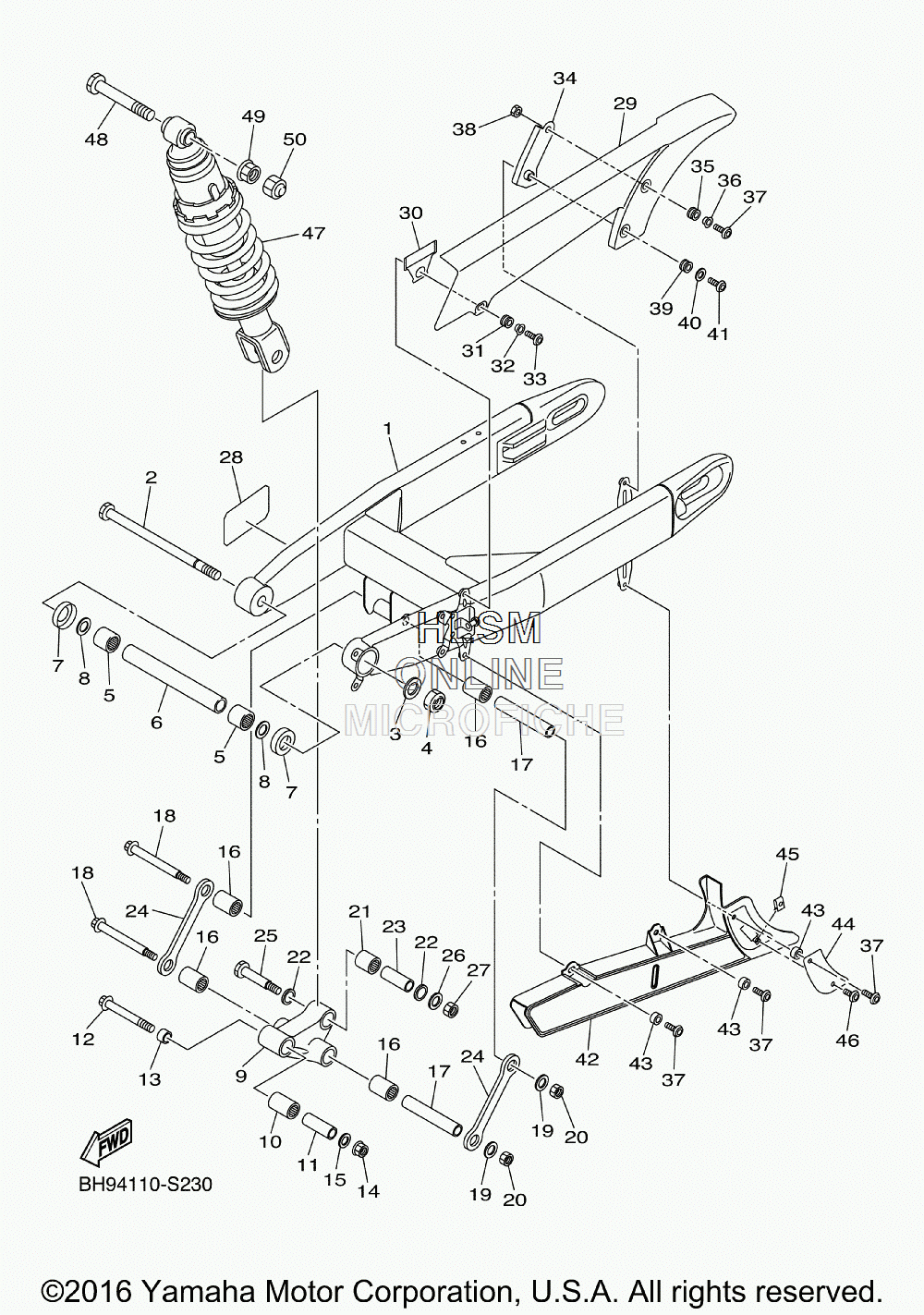

SUSPENSION - REAR ARM для Yamaha V STAR 1300 TOURER - 2017 года выпуска`
-
№АртикулНазвание
-
13D8-22110-30-00 REAR ARM COMP.REAR ARM COMP.
-
23D8-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
390201-16018-00 WASHER, PLATEWASHER, PLATE
-
490185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
593320-32403-00 BEARINGBEARING
-
63D8-22124-00-00 BUSH 2BUSH 2
-
75EL-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
890201-243U9-00 WASHER, PLATEWASHER, PLATE
-
93D8-2217A-00-00 ARM, RELAYARM, RELAY
-
1093317-42060-00 BEARINGBEARING
-
1190387-100T8-00 COLLARCOLLAR
-
1290105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-10049-00 COLLARCOLLAR
-
1495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1693317-41761-00 BEARINGBEARING
-
1790387-126T1-00 COLLARCOLLAR
-
1890101-12027-00 BOLTBOLT
-
1990201-12045-00 WASHER, PLATEWASHER, PLATE
-
2095612-12100-00 NUT, UNUT, U
-
2193317-31771-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
2390387-127W0-00 COLLARCOLLAR
-
243D8-2217M-00-00 ARM 1ARM 1
-
2590109-10024-00 BOLTBOLT
-
2690201-10035-00 WASHER, PLATEWASHER, PLATE
-
2795612-10100-00 NUT, UNUT, U
-
285PX-21652-00-00 PROTECTORPROTECTOR
-
293D8-22311-10-00 CASE, CHAINCASE, CHAIN
-
303D8-22351-00-00 REINF.,1REINF.,1
-
3190480-13080-00 GROMMETGROMMET
-
3290387-06146-00 COLLARCOLLAR
-
3390149-06302-00 SCREWSCREW
-
343D8-2213J-00-00 STAY, CHAIN CASESTAY, CHAIN CASE
-
3590480-13004-00 GROMMETGROMMET
-
3690387-06171-00 COLLARCOLLAR
-
3790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3895302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
3990480-13004-00 GROMMETGROMMET
-
4090201-06095-00 WASHER, PLATEWASHER, PLATE
-
4190149-06302-00 SCREWSCREW
-
423D8-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
4390387-06372-00 COLLARCOLLAR
-
443D8-22341-10-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
4590183-06053-00 NUT, SPRINGNUT, SPRING
-
4690111-06078-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
472CA-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
4890109-10028-00 BOLTBOLT
-
4995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
505YU-2143A-00-00 CAPCAP
