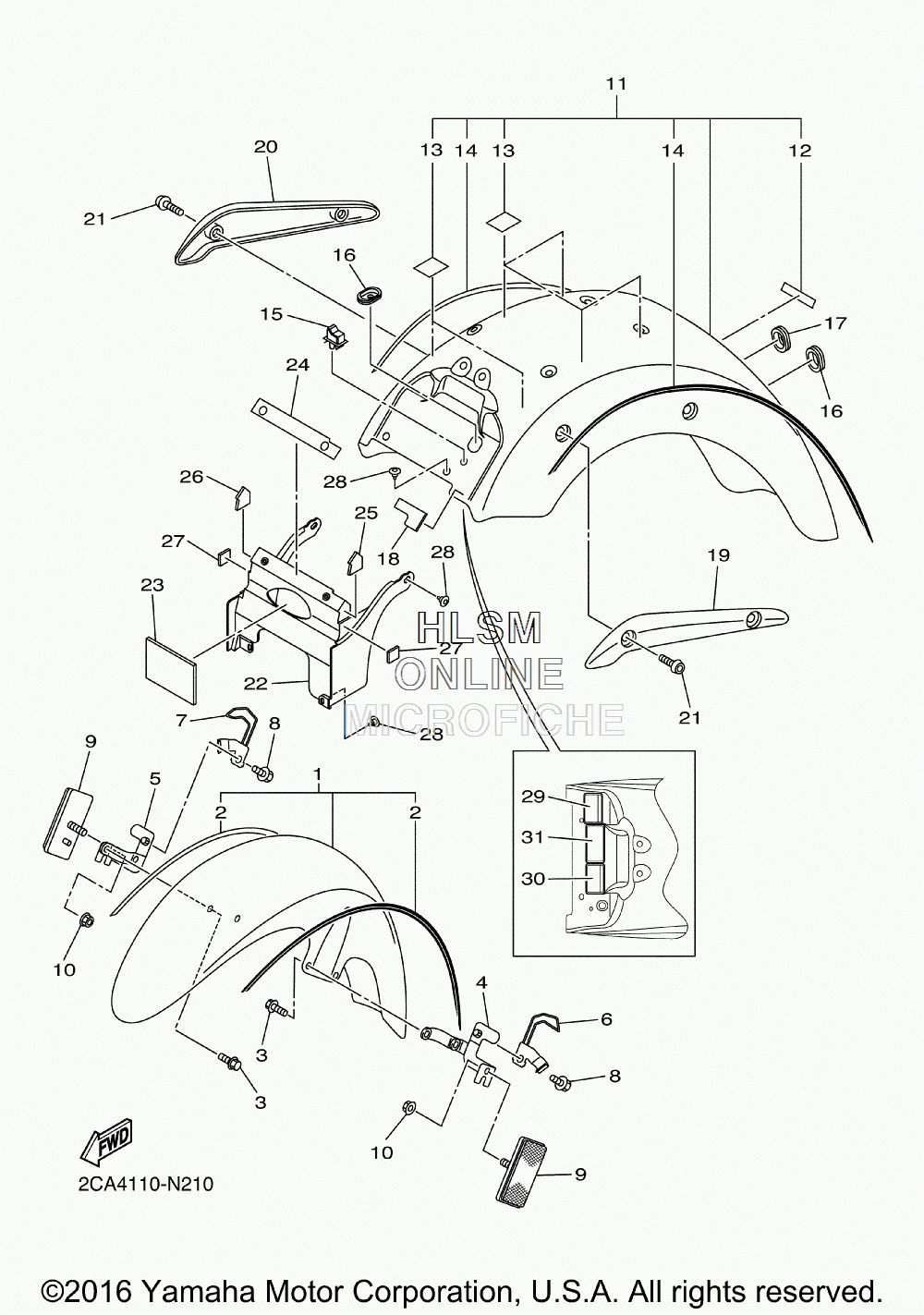

FENDER - FRONT / REAR для Yamaha V STAR 1300 TOURER - 2017 года выпуска`
-
№АртикулНазвание
-
13D8-Y2151-61-P7 FRONT FENDER ASSY (DPBML - BLUE METALLIC)FRONT FENDER ASSY (DPBML - BLUE METALLIC)
-
25S6-21570-60-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
395812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
43D8-21587-00-00 STAY 1STAY 1
-
53D8-21588-00-00 STAY 2STAY 2
-
63D8-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
73D8-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
911H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1095707-05500-00 NUT, FLANGENUT, FLANGE
-
113D8-W216R-C0-PA REAR FENDER ASSY (DPBML - BLUE METALLIC)REAR FENDER ASSY (DPBML - BLUE METALLIC)
-
121D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
135PX-21669-01-00 ...SEAL...SEAL
-
145S6-2165A-60-00 ...GRAPHIC SET, REAR FENDER...GRAPHIC SET, REAR FENDER
-
1590464-16021-00 CLAMPCLAMP
-
1690480-01015-00 GROMMETGROMMET
-
1790338-20004-00 PLUGPLUG
-
183D8-21747-00-00 DAMPERDAMPER
-
193D8-2164F-10-00 STAY 1STAY 1
-
203D8-2164G-10-00 STAY 2STAY 2
-
2190111-08033-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
223D8-21629-00-P1 GUARD, MUD (DPBML - BLUE METALLIC)GUARD, MUD (DPBML - BLUE METALLIC)
-
233D8-21621-00-00 FLAPFLAP
-
243D8-21638-00-00 DAMPER 1DAMPER 1
-
253D8-21639-00-00 DAMPER 2DAMPER 2
-
263D8-21649-00-00 DAMPERDAMPER
-
273D8-21652-00-00 PROTECTORPROTECTOR
-
2890269-07077-00 RIVETRIVET
-
295RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
3034B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
311D7-21668-00-00 LABEL, TIRELABEL, TIRE
