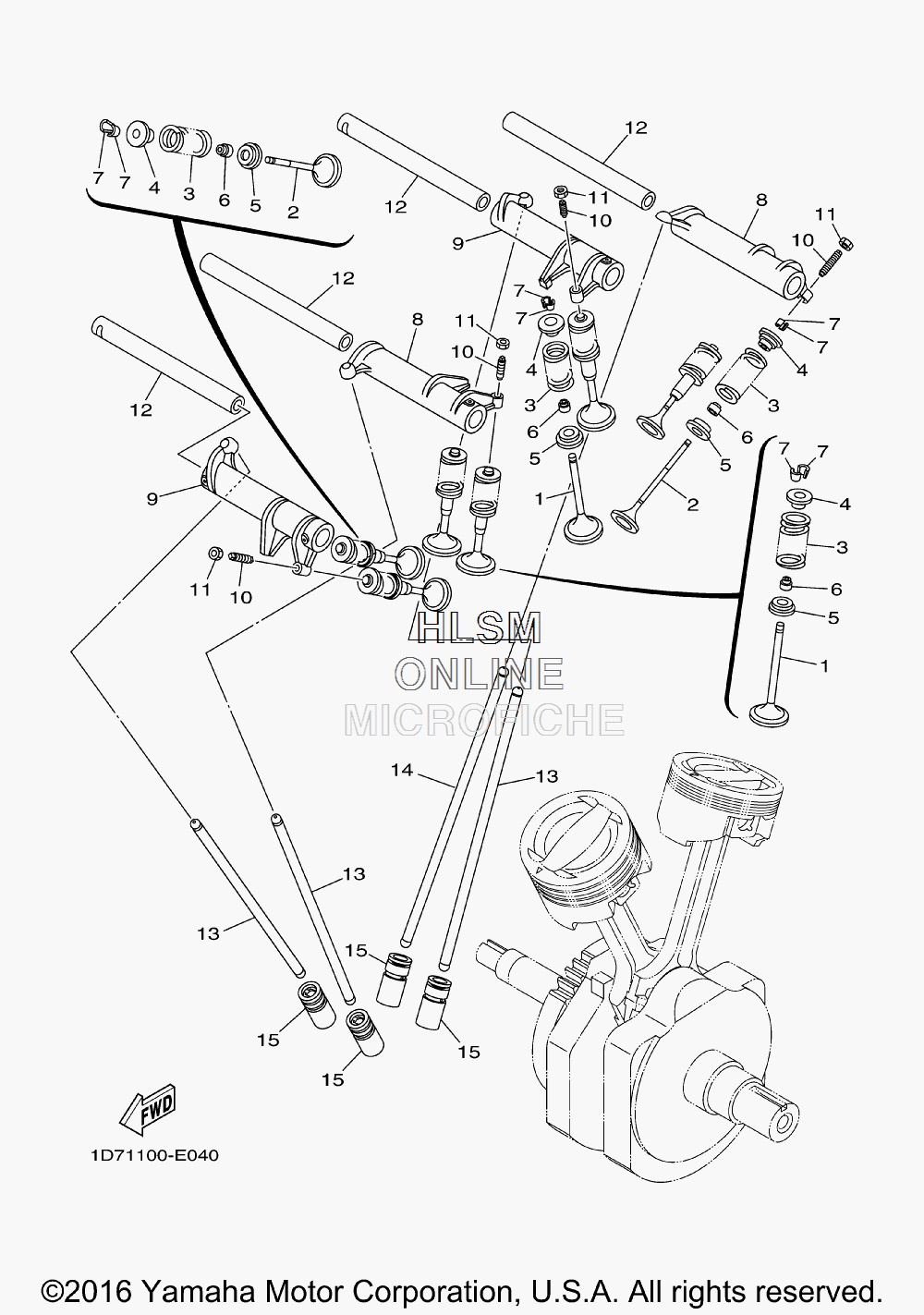

VALVE для Yamaha RAIDER - 2017 года выпуска`
-
№АртикулНазвание
-
11D7-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
21D7-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
31D7-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
43YF-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
51D7-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
64KM-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
74G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
81D7-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
91D7-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
1031G-12159-02-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1131G-12158-00-00 NUT, LOCKNUT, LOCK
-
121D7-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
131D7-12154-00-00 ROD, VALVE PUSHROD, VALVE PUSH
-
141D7-12144-00-00 ROD, VALVE PUSH 2ROD, VALVE PUSH 2
-
154WM-12153-20-00 LIFTER, VALVELIFTER, VALVE
