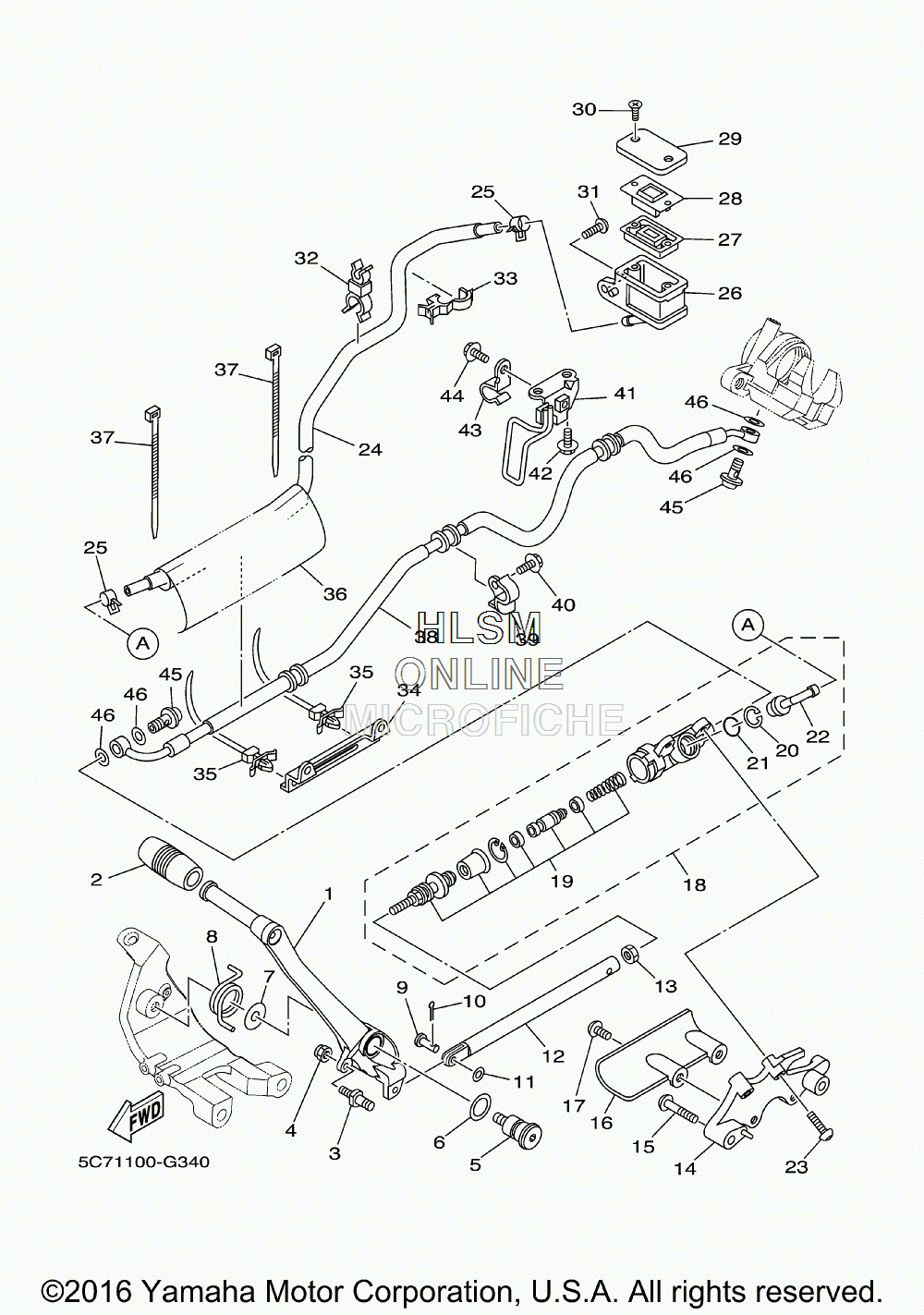

BRAKE - REAR MASTER CYLINDER для Yamaha RAIDER - 2017 года выпуска`
-
№АртикулНазвание
-
15C7-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25VN-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
35C7-27813-01-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
495604-06100-00 NUT, UNUT, U
-
55C7-27434-00-00 BOLTBOLT
-
690201-18022-00 WASHER, PLATEWASHER, PLATE
-
790201-08061-00 WASHER, PLATEWASHER, PLATE
-
85C7-27316-00-00 SPRING, SIDE STANDSPRING, SIDE STAND
-
991701-06018-00 PINPIN
-
1091402-16012-00 PIN, COTTERPIN, COTTER
-
1192902-06200-00 WASHERWASHER
-
125C7-27222-00-00 JOINTJOINT
-
1395307-08700-00 NUTNUT
-
141D7-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1592014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
165PX-27491-00-00 PROTECTORPROTECTOR
-
1792014-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
181D7-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
191FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
202VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
2193210-15620-00 ...O-RING...O-RING
-
222VN-2582A-50-00 ...JOINT...JOINT
-
2392014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
241D7-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2590467-12191-00 CLIPCLIP
-
265YU-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
2755U-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
283GM-2585B-20-00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
295YU-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
3098706-04040-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
3192012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3290464-14005-00 CLAMPCLAMP
-
3390464-15192-00 CLAMPCLAMP
-
341D7-21374-00-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
3590464-14006-00 CLAMPCLAMP
-
361D7-25881-00-00 PROTECTOR, BRAKE HOSEPROTECTOR, BRAKE HOSE
-
3712R-82591-00-00 BANDBAND
-
385C7-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
391D7-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
4095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
415C7-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4290105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
435GJ-25886-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4590401-10172-00 BOLT, UNIONBOLT, UNION
-
4690430-10005-00 GASKETGASKET
