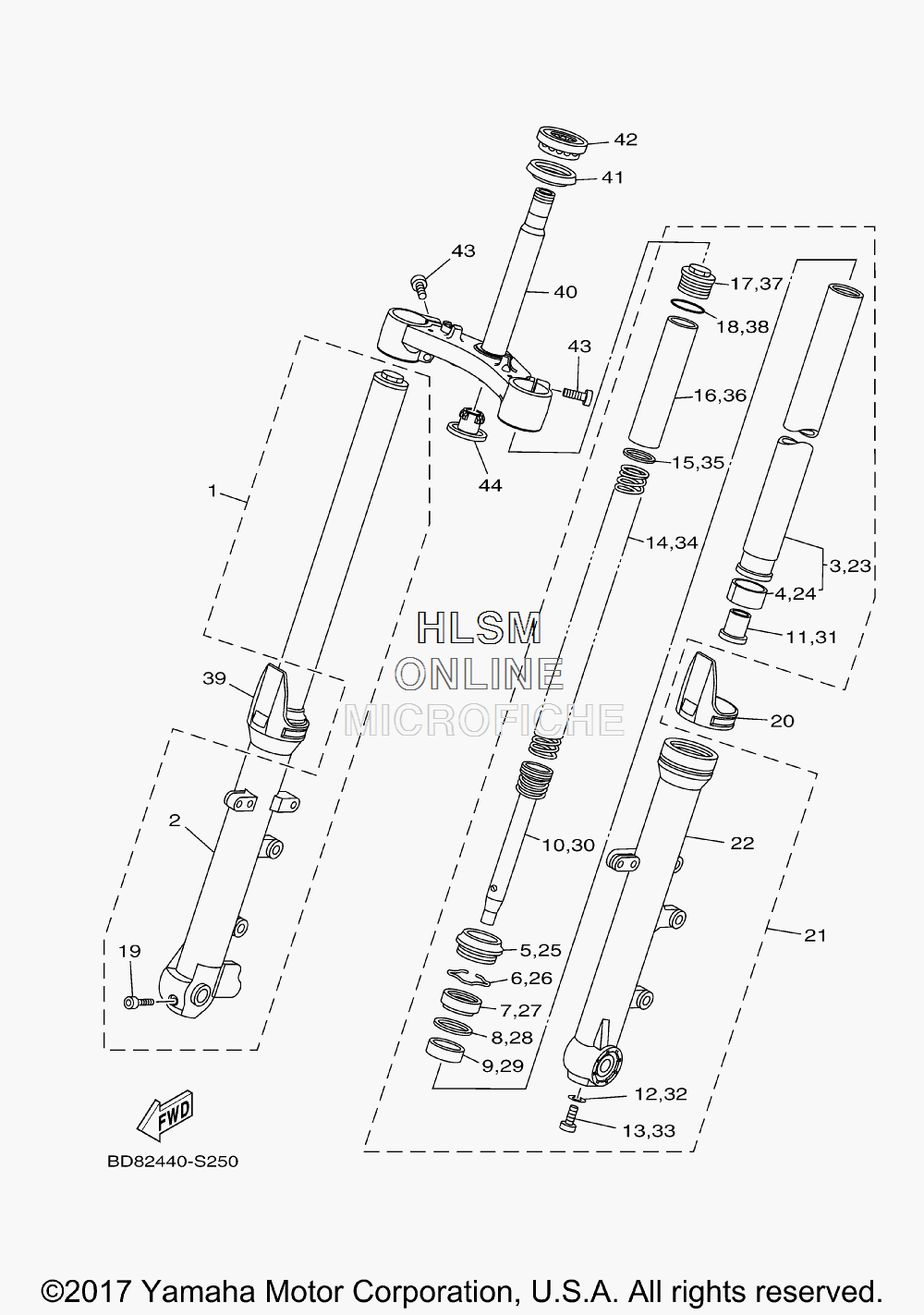

SUSPENSION - FRONT FORK для Yamaha FZ07 - 2017 года выпуска`
-
№АртикулНазвание
-
11WS-23103-00-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
21WS-23136-00-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
31WS-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
45BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
54EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
626H-23156-00-00 ...RING, SNAP...RING, SNAP
-
74EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
836Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
94FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
101WS-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
114YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
12509-23158-L0-00 ...GASKET...GASKET
-
13278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
141WS-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
153EN-23149-50-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
163FW-23118-00-00 ...SPACER...SPACER
-
171D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1843F-23188-10-00 ...O-RING...O-RING
-
1991314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
201WS-2331G-00-00 COVERCOVER
-
211WS-23102-00-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
221WS-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
231WS-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
245BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
254EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2626H-23156-00-00 ...RING, SNAP...RING, SNAP
-
274EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2836Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
294FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
301WS-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
314YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
32509-23158-L0-00 ...GASKET...GASKET
-
33278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
341WS-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
353EN-23149-50-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
363FW-23118-00-00 ...SPACER...SPACER
-
371D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3843F-23188-10-00 ...O-RING...O-RING
-
391WS-2331G-00-00 COVERCOVER
-
401WS-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
413FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4293399-99932-00 BEARINGBEARING
-
4391314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
444KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
