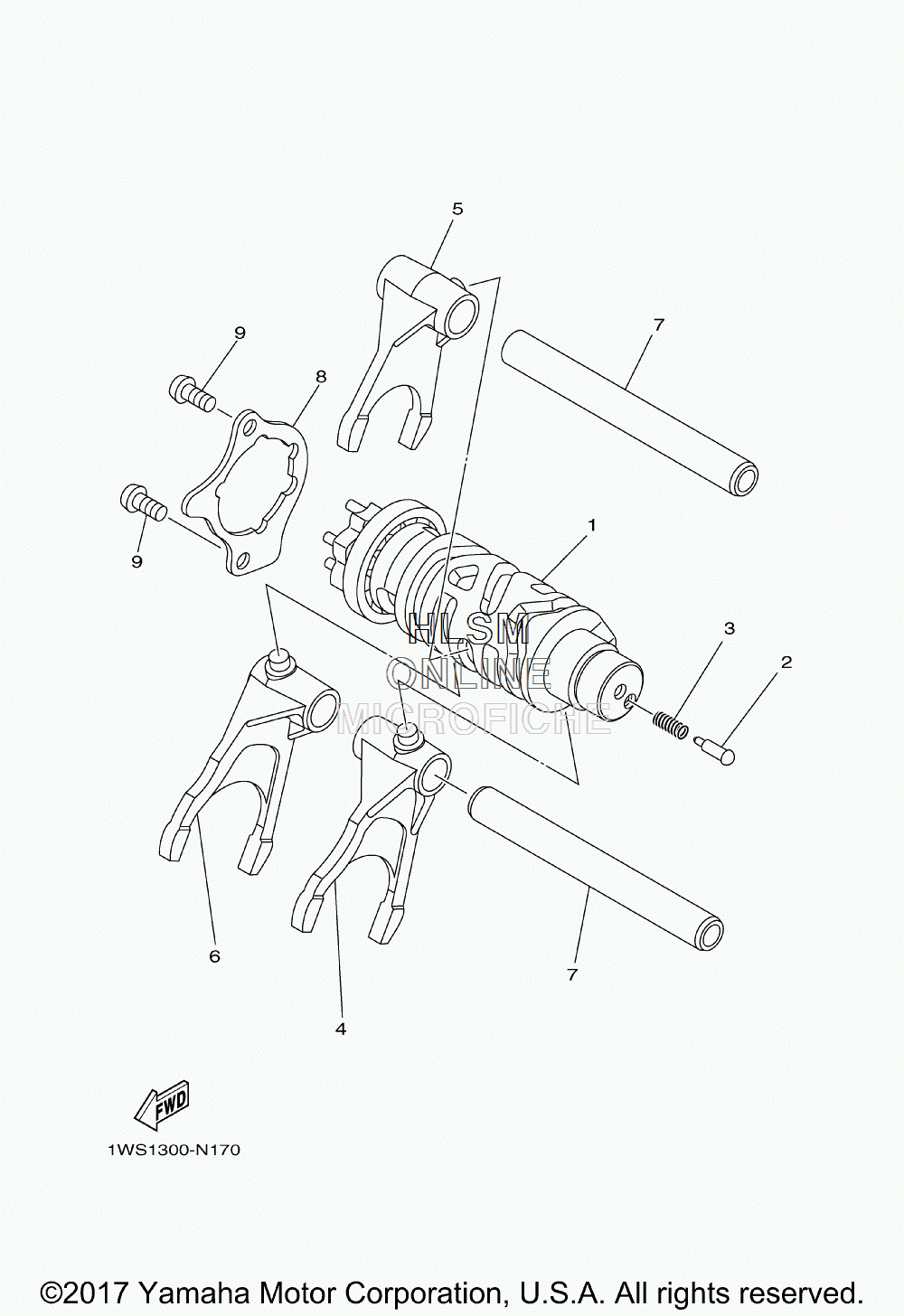

SHIFT CAM W/ FORK для Yamaha FZ07 - 2017 года выпуска`
-
№АртикулНазвание
-
11WS-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
23D7-18542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
390501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
41WS-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
51WS-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
61WS-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
720S-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
81WS-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
990149-06158-00 SCREWSCREW
