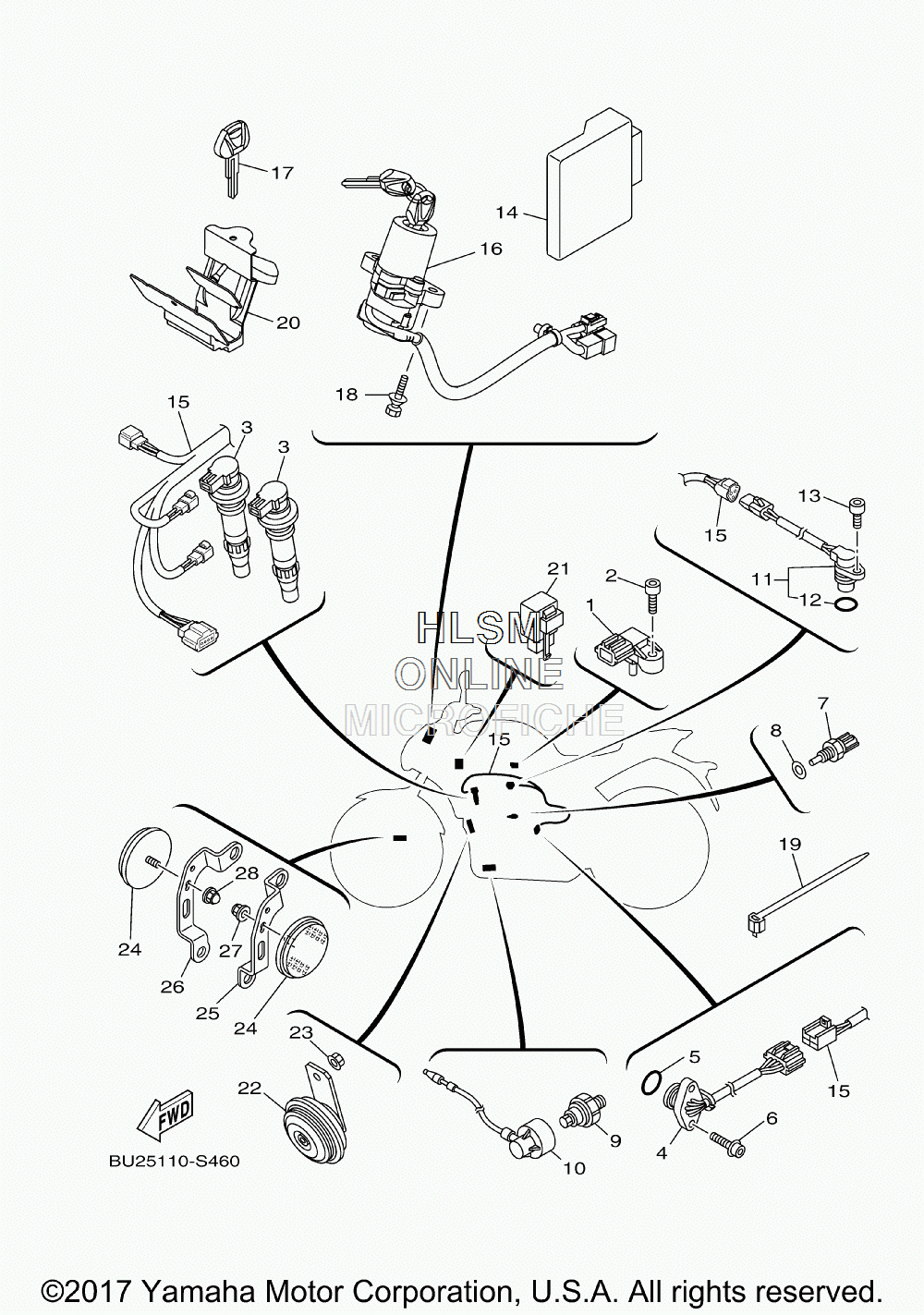

ELECTRICAL 2 для Yamaha FZ07 ABS - 2017 года выпуска`
-
№АртикулНазвание
-
11WS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
291312-05020-00 BOLTBOLT
-
31WS-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
41WS-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
593210-21001-00 O-RINGO-RING
-
690110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
74P9-83591-00-00 THERMO UNITTHERMO UNIT
-
890430-10004-00 GASKETGASKET
-
91WS-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
101WS-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
113P6-15399-00-00 PLUG, BLINDPLUG, BLIND
-
1293210-15566-00 ...O-RING...O-RING
-
1391312-06016-00 BOLTBOLT
-
142RC-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
151XB-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
16BU2-82501-30-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
174BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1890109-08195-00 BOLTBOLT
-
1990465-13M24-00 CLAMPCLAMP
-
202RC-81662-00-00 COVER, CONNECTERCOVER, CONNECTER
-
215C4-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
221WS-83371-00-00 HORNHORN
-
2395707-06500-00 NUT, FLANGENUT, FLANGE
-
244AG-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
251WS-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
261XB-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
2795702-06500-00 NUT, FLANGENUT, FLANGE
-
2890176-06014-00 NUT, CROWNNUT, CROWN
