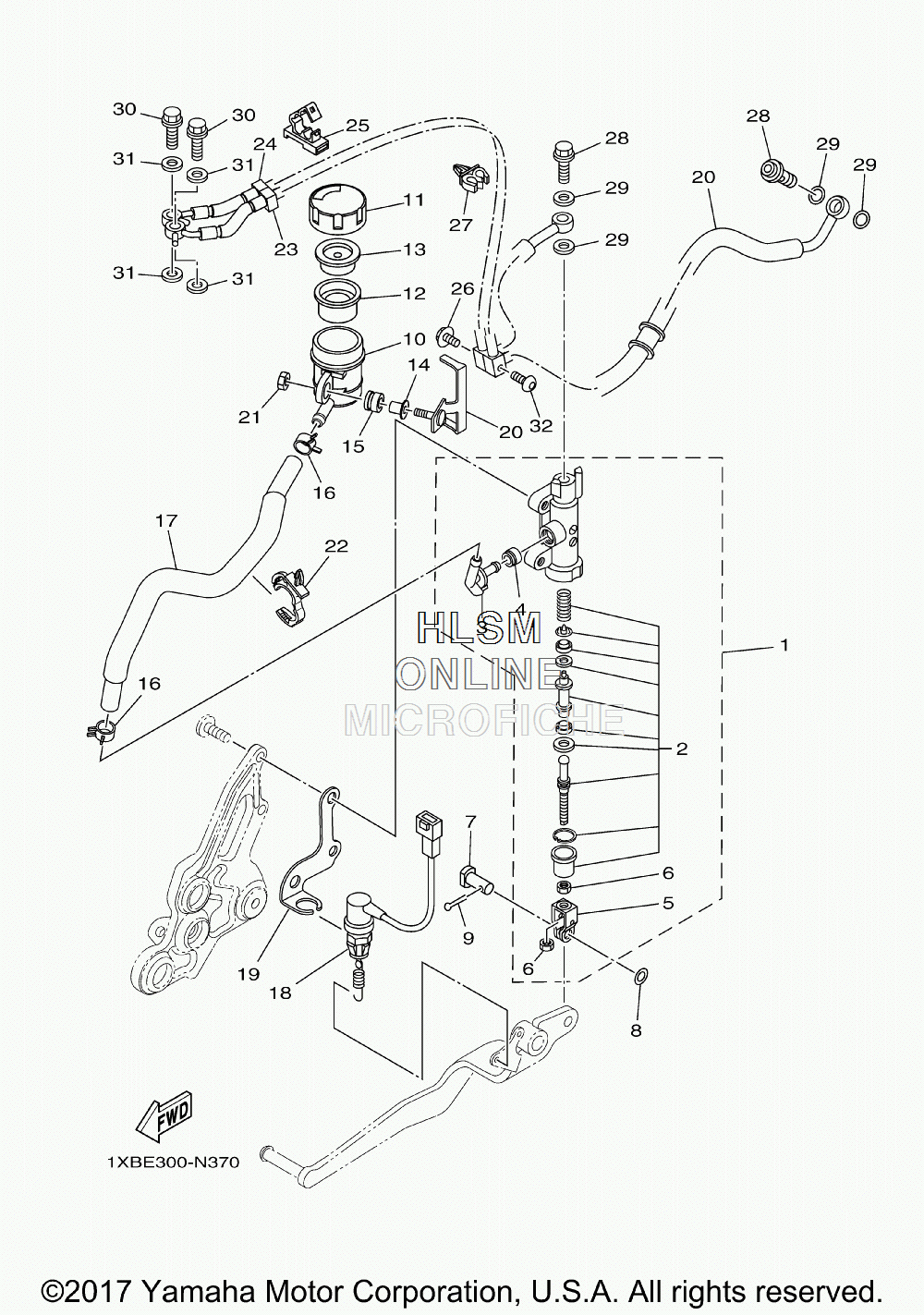

BRAKE - REAR MASTER CYLINDER для Yamaha FZ07 ABS - 2017 года выпуска`
-
№АртикулНазвание
-
14P5-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
25VX-W0042-51-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
32D1-2582A-00-00 ...JOINT...JOINT
-
44BP-2585F-01-00 ...O-RING...O-RING
-
54BP-27222-02-00 ...JOINT...JOINT
-
690170-08010-00 ...NUT...NUT
-
790240-08005-00 PIN, CLEVISPIN, CLEVIS
-
890201-08070-00 WASHER, PLATEWASHER, PLATE
-
991401-20012-00 PIN, COTTERPIN, COTTER
-
1014B-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
112C0-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
122VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
132VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1490387-05028-00 COLLARCOLLAR
-
152C0-26326-00-00 GROMMETGROMMET
-
1690467-11044-00 CLIPCLIP
-
171WS-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
181WS-82530-01-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
191WS-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
201WS-2582E-00-00 HOLDER, RESERVE TANKHOLDER, RESERVE TANK
-
2195707-05500-00 NUT, FLANGENUT, FLANGE
-
2290464-17008-00 CLAMPCLAMP
-
231XB-2584D-00-00 HOSE, BRAKEHOSE, BRAKE
-
241XB-2584E-00-00 BRAKE HOSE ASSY 5BRAKE HOSE ASSY 5
-
2590464-07014-00 CLAMPCLAMP
-
2690105-06148-00 BOLT, FLANGEBOLT, FLANGE
-
2790464-07009-00 CLAMPCLAMP
-
2890401-10020-00 BOLT, UNIONBOLT, UNION
-
2990430-10005-00 GASKETGASKET
-
3090401-10172-00 BOLT, UNIONBOLT, UNION
-
3190430-10005-00 GASKETGASKET
-
3292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
