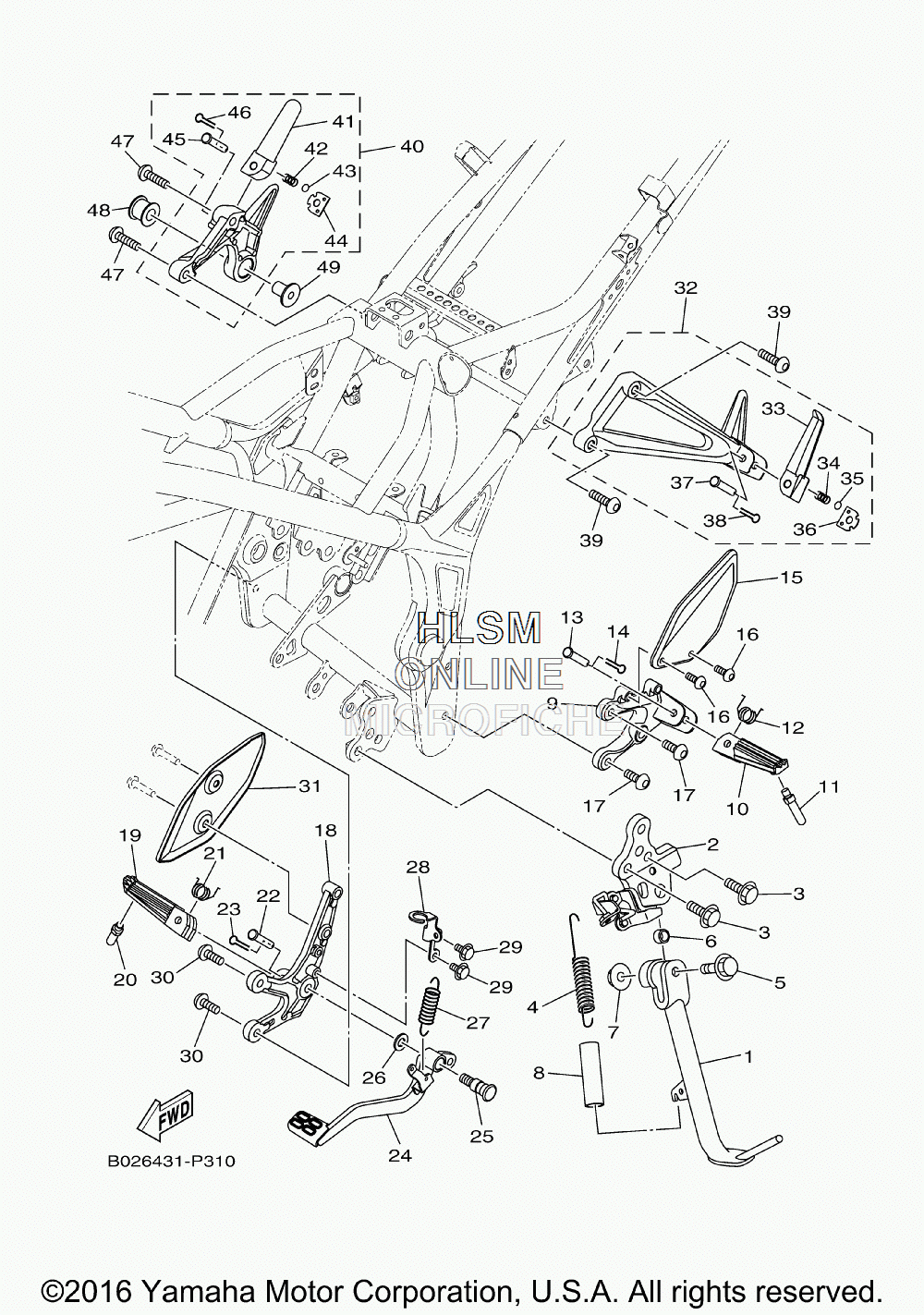

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha YZFR3 [YZFR3GGY] - 2016 года выпуска`
-
№АртикулНазвание
-
11WD-F7311-00-00 STAND, SIDESTAND, SIDE
-
21WD-F7321-10-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
395817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
490506-23812-00 SPRING, TENSIONSPRING, TENSION
-
590105-106A7-00 BOLT, FLANGEBOLT, FLANGE
-
690387-10010-00 COLLARCOLLAR
-
795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
890445-217G3-00 HOSE (L70)HOSE (L70)
-
91WD-F7442-00-00 BRACKET 2BRACKET 2
-
101WD-F7451-00-00 FOOTRESTFOOTREST
-
111WD-F7435-00-00 BOLTBOLT
-
1290508-183B9-00 SPRING, TORSIONSPRING, TORSION
-
1390240-08145-00 PIN, CLEVISPIN, CLEVIS
-
1491401-25015-00 PIN, COTTERPIN, COTTER
-
152MS-F7445-00-00 PLATE 1PLATE 1
-
1690111-06013-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1790109-085G6-00 BOLTBOLT
-
181WD-F7443-00-00 BRACKET 3BRACKET 3
-
191WD-F7461-00-00 FOOTRESTFOOTREST
-
201WD-F7435-00-00 BOLTBOLT
-
2190508-183B9-00 SPRING, TORSIONSPRING, TORSION
-
2290240-08145-00 PIN, CLEVISPIN, CLEVIS
-
2391401-25015-00 PIN, COTTERPIN, COTTER
-
241WD-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
254BP-27261-00-00 SHAFTSHAFT
-
2690201-10021-00 WASHER, PLATEWASHER, PLATE
-
2790506-26807-00 SPRING, TENSIONSPRING, TENSION
-
281WD-F144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
2995802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3090109-085G6-00 BOLTBOLT
-
312MS-F7446-00-00 PLATE 2PLATE 2
-
321WD-F7430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
331WD-F7431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
3490501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3593501-04830-00 ...BALL...BALL
-
361WD-F7437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
3790240-08145-00 ...PIN, CLEVIS...PIN, CLEVIS
-
3891401-25015-00 ...PIN, COTTER...PIN, COTTER
-
3990110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
401WD-F7440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
411WD-F7441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
4290501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4393501-04830-00 ...BALL...BALL
-
441WD-F7437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
4590240-08145-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4691401-25015-00 ...PIN, COTTER...PIN, COTTER
-
4790110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
485TP-E4747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
4990387-08813-00 COLLARCOLLAR
