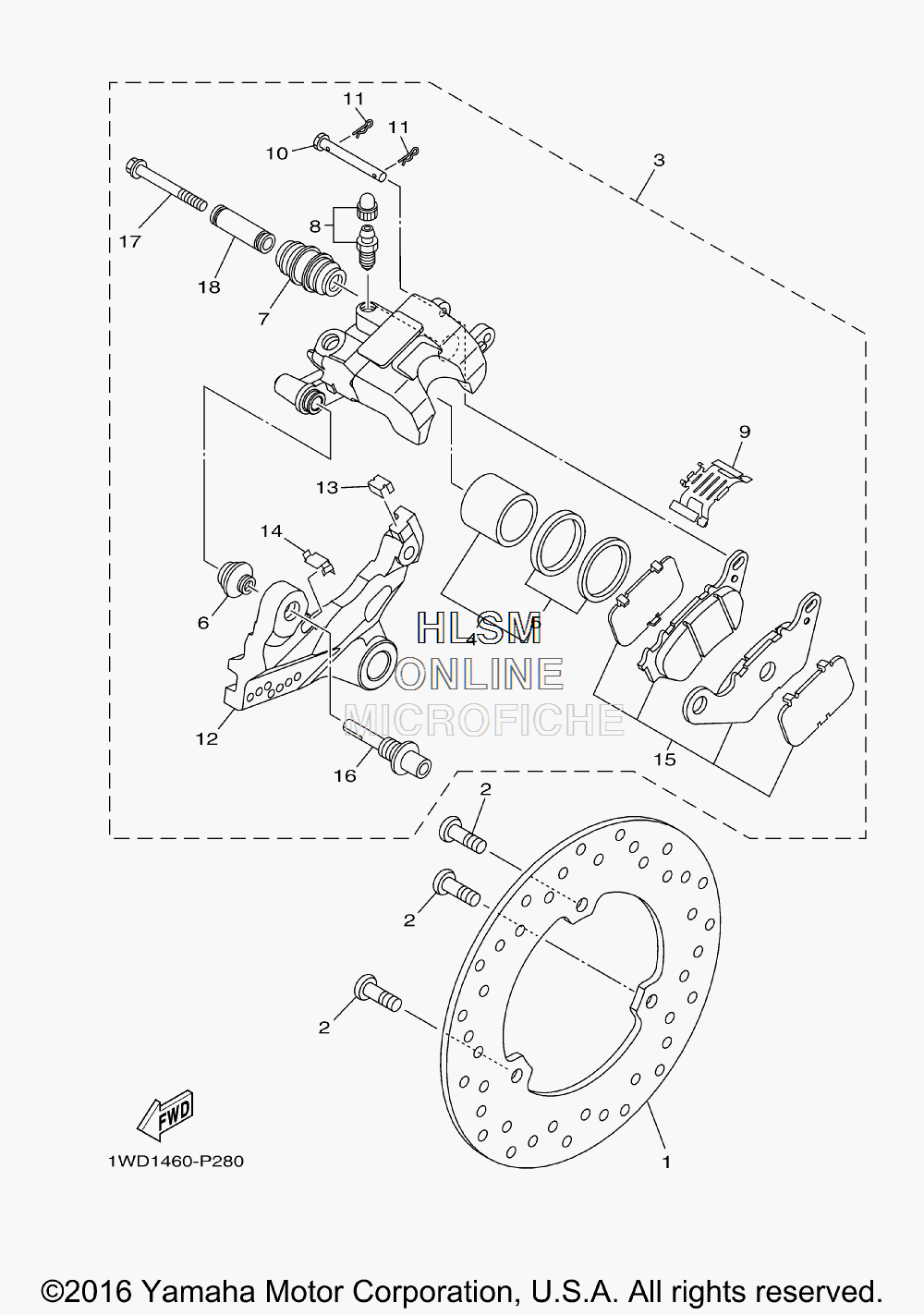

BRAKE - REAR CALIPER для Yamaha YZFR3 [YZFR3GGY] - 2016 года выпуска`
-
№АртикулНазвание
-
11WD-F582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290111-08815-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
31WD-F580W-01-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41WD-25802-50-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
51WD-25803-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65YP-F5917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
734X-25937-00-00 ...BOOT 2...BOOT 2
-
85YP-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
91WD-F5919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
101WD-F5924-50-00 ...PIN, PAD...PIN, PAD
-
115YP-F5925-01-00 ...CLIP...CLIP
-
121WD-F5921-51-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
131WD-F5939-51-00 ...CLIP, PAD...CLIP, PAD
-
141WD-F5939-61-00 ...CLIP, PAD...CLIP, PAD
-
151WD-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
161WD-F5914-50-00 ...PIN, SLIDE...PIN, SLIDE
-
175KN-25926-01-00 ...BOLT...BOLT
-
185TL-F5838-00-00 ...SLEEVE, CALIPER...SLEEVE, CALIPER
