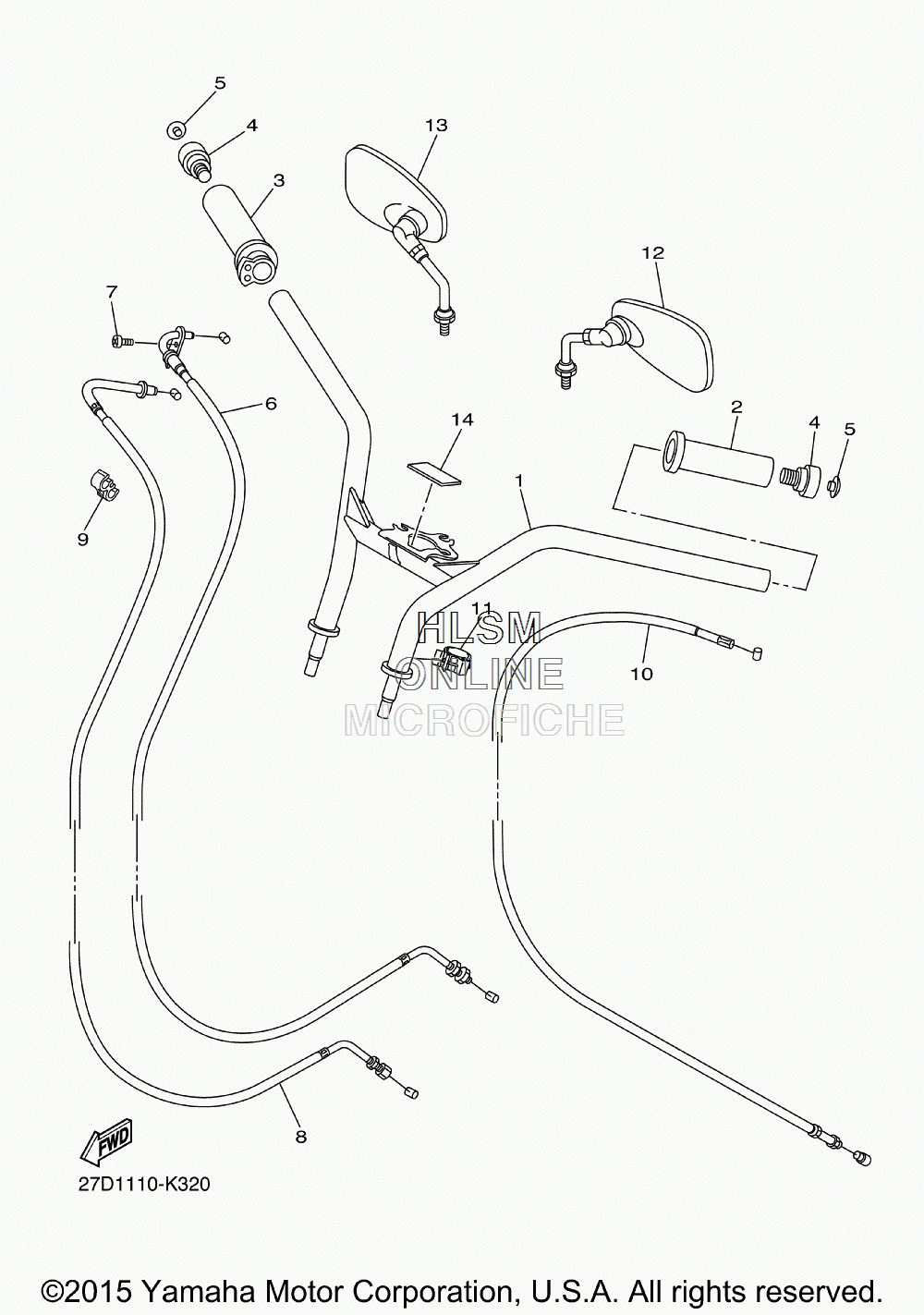

HANDLEBAR W/ CABLES - MIRRORS для Yamaha STRYKER (ORANGE) [XVS13CGO] - 2016 года выпуска`
-
№АртикулНазвание
-
127D-26111-10-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP(LEFT)GRIP(LEFT)
-
34XY-26240-00-00 GRIP ASSYGRIP ASSY
-
45EL-26246-00-00 END, GRIPEND, GRIP
-
590338-10164-00 PLUGPLUG
-
627D-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
798507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
827D-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
990464-06214-00 CLAMPCLAMP
-
1027D-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1190464-20191-00 CLAMPCLAMP
-
1227D-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
134NK-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1490520-04007-00 DAMPER, PLATEDAMPER, PLATE
