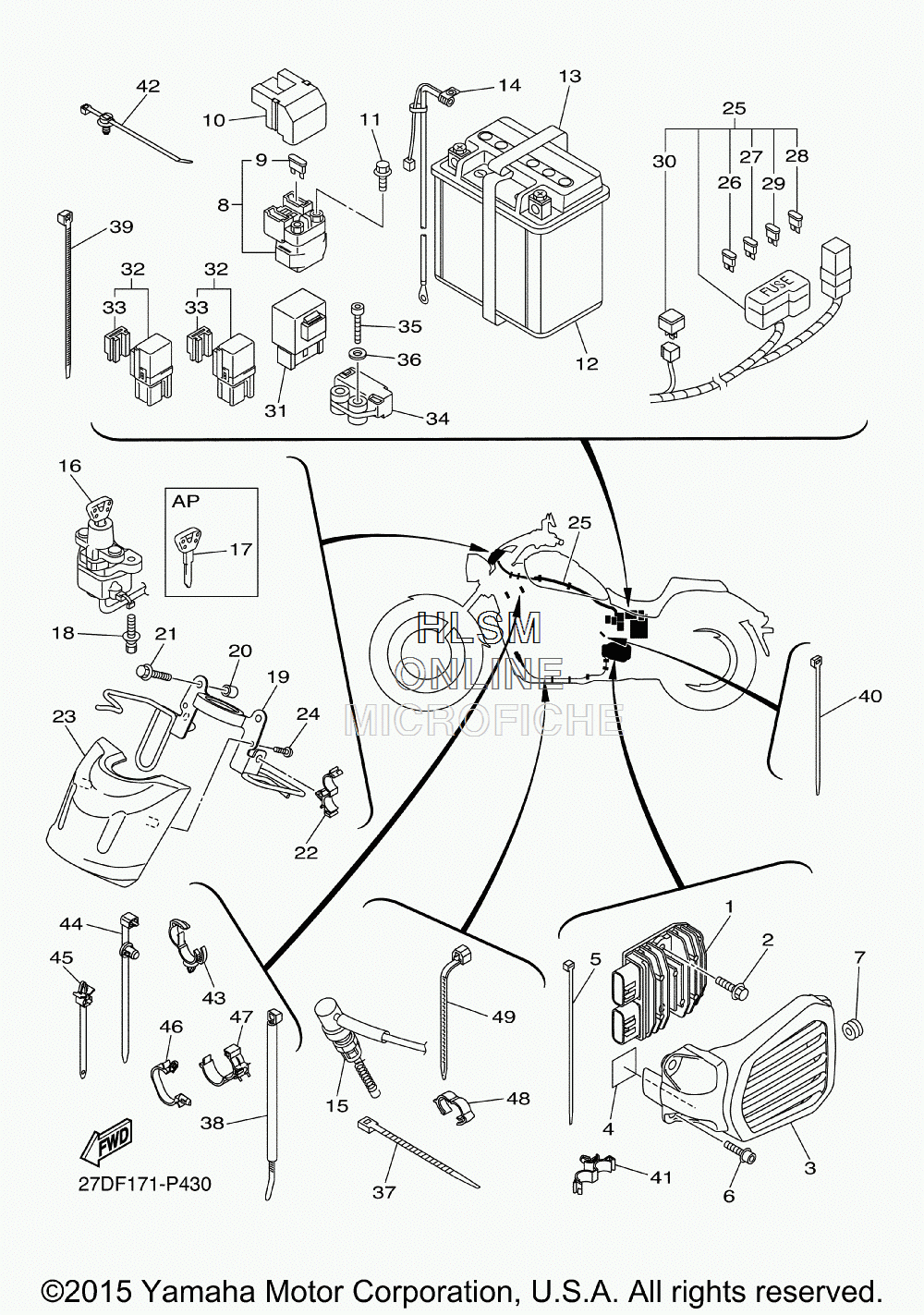

ELECTRICAL 2 для Yamaha STRYKER (ORANGE) [XVS13CGO] - 2016 года выпуска`
-
№АртикулНазвание
-
127D-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
290119-06225-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
33D8-21247-02-00 CASE, REGULATORCASE, REGULATOR
-
42GH-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
55Y9-12491-00-00 CLAMP 1CLAMP 1
-
690110-06215-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790480-12550-00 GROMMETGROMMET
-
83D8-81940-00-00 STARTER RELAY ASSY (RC19-074)STARTER RELAY ASSY (RC19-074)
-
942X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1195022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
124SH-82100-22-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
134AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
1427D-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1527D-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
163D8-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
174BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1890109-08195-00 BOLTBOLT
-
1927D-2334G-00-00 BRACKET 1BRACKET 1
-
2090387-065L7-00 COLLARCOLLAR
-
2195027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2290464-16006-00 CLAMPCLAMP
-
2327D-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
2497702-40014-00 SCREW, TAPPINGSCREW, TAPPING
-
2527D-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
265JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
275JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
285JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
295JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
303XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
315VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
321TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
335EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
345PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
3590110-04003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3690201-04027-00 WASHER, PLATEWASHER, PLATE
-
371UA-82591-00-00 BANDBAND
-
3827D-82360-00-00 CLAMP ASSYCLAMP ASSY
-
3990465-13M11-00 CLAMPCLAMP
-
4090464-80002-00 CLAMPCLAMP
-
4190464-16012-00 CLAMPCLAMP
-
425RU-12491-00-00 CLAMP 1CLAMP 1
-
4390464-20181-00 CLAMPCLAMP
-
4490464-40001-00 CLAMPCLAMP
-
4590464-12036-00 CLAMPCLAMP
-
4690464-24230-00 CLAMPCLAMP
-
4790464-25217-00 CLAMPCLAMP
-
4890464-16003-00 CLAMPCLAMP
-
4990464-12045-00 CLAMPCLAMP
