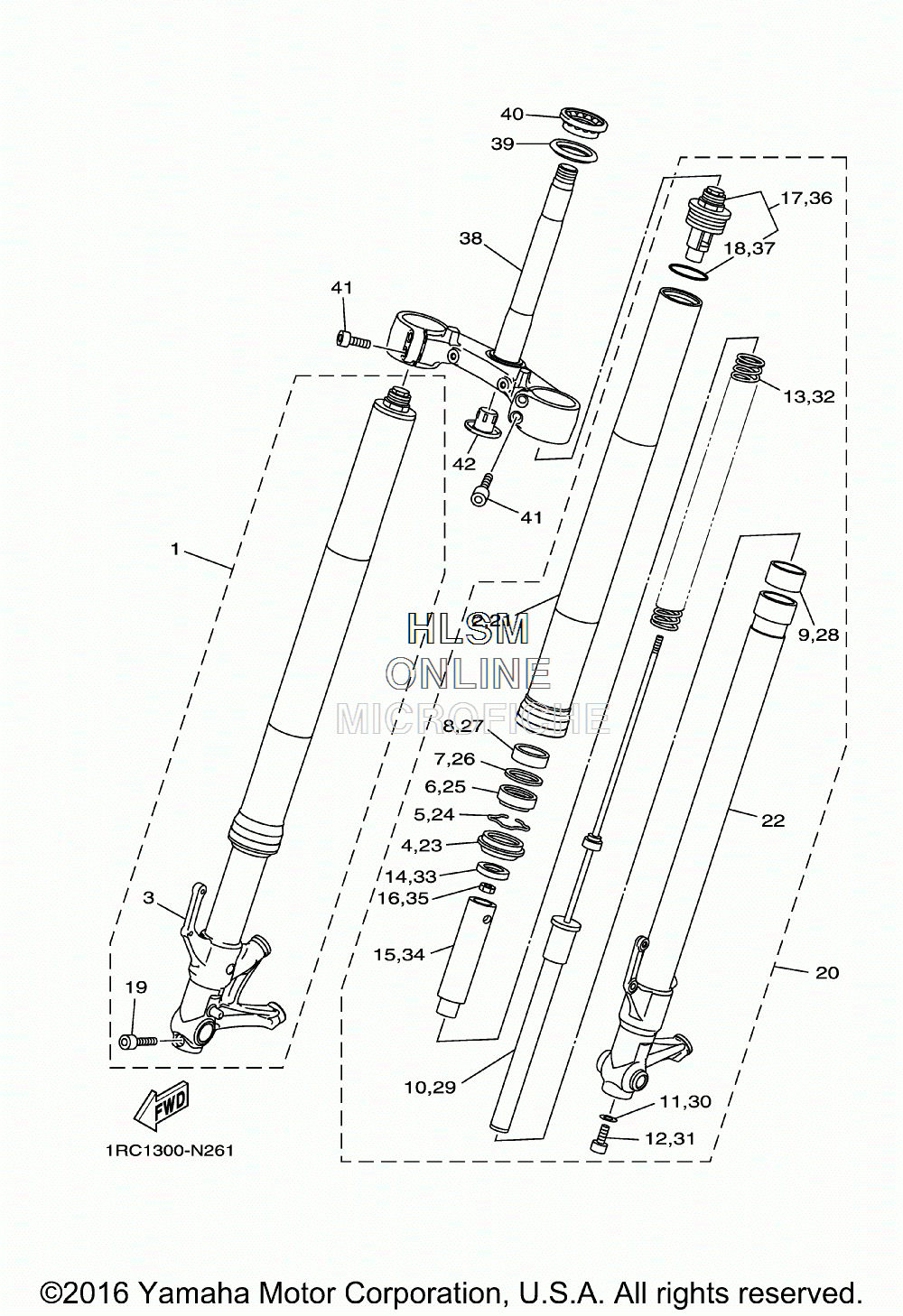

SUSPENSION - FRONT FORK для Yamaha FZ09 [FZ09GGY] - 2016 года выпуска`
-
№АртикулНазвание
-
11RC-23103-40-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
21RC-23126-40-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
31RC-23120-01-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
44EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
526H-23156-00-00 ...RING, SNAP...RING, SNAP
-
64EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
81RC-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94FM-23171-40-00 ...METAL, SLIDE...METAL, SLIDE
-
101RC-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
11509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
12278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
131RC-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
145VY-12277-00-00 ...WASHER...WASHER
-
151RC-23118-00-00 ...SPACER...SPACER
-
163LC-23357-00-00 ...NUT...NUT
-
172PP-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
183XJ-23147-L0-00 ......O-RING......O-RING
-
1991314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
201RC-23102-40-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
211RC-23126-40-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
221RC-23110-01-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
234EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2426H-23156-00-00 ...RING, SNAP...RING, SNAP
-
254EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2636Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
271RC-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
284FM-23171-40-00 ...METAL, SLIDE...METAL, SLIDE
-
291RC-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
30509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
31278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
321RC-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
335VY-12277-00-00 ...WASHER...WASHER
-
341RC-23118-00-00 ...SPACER...SPACER
-
353LC-23357-00-00 ...NUT...NUT
-
362PP-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
373XJ-23147-L0-00 ......O-RING......O-RING
-
381RC-23340-11-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
393FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4093399-99932-00 BEARINGBEARING
-
4191314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
424KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
