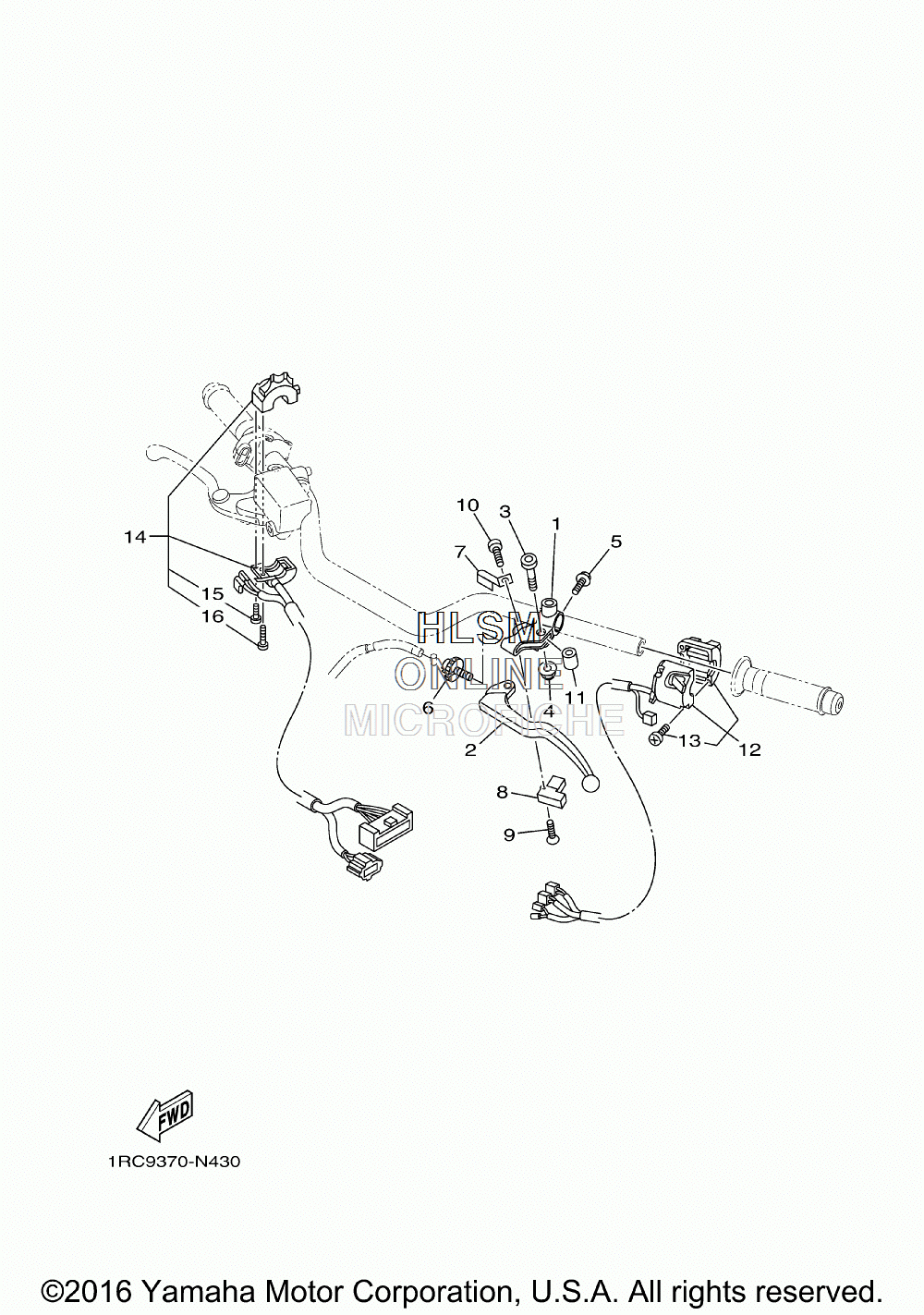

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ09 [FZ09GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11B3-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
25EB-83912-03-00 LEVER 1LEVER 1
-
32C0-83945-00-00 BOLT, LEVERBOLT, LEVER
-
495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
74XV-83929-00-00 PLATE, SPRINGPLATE, SPRING
-
83YX-82917-01-00 SWITCHSWITCH
-
998704-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1098507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
121RC-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
1398507-04025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
141RC-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1598507-04020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1698507-04030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
