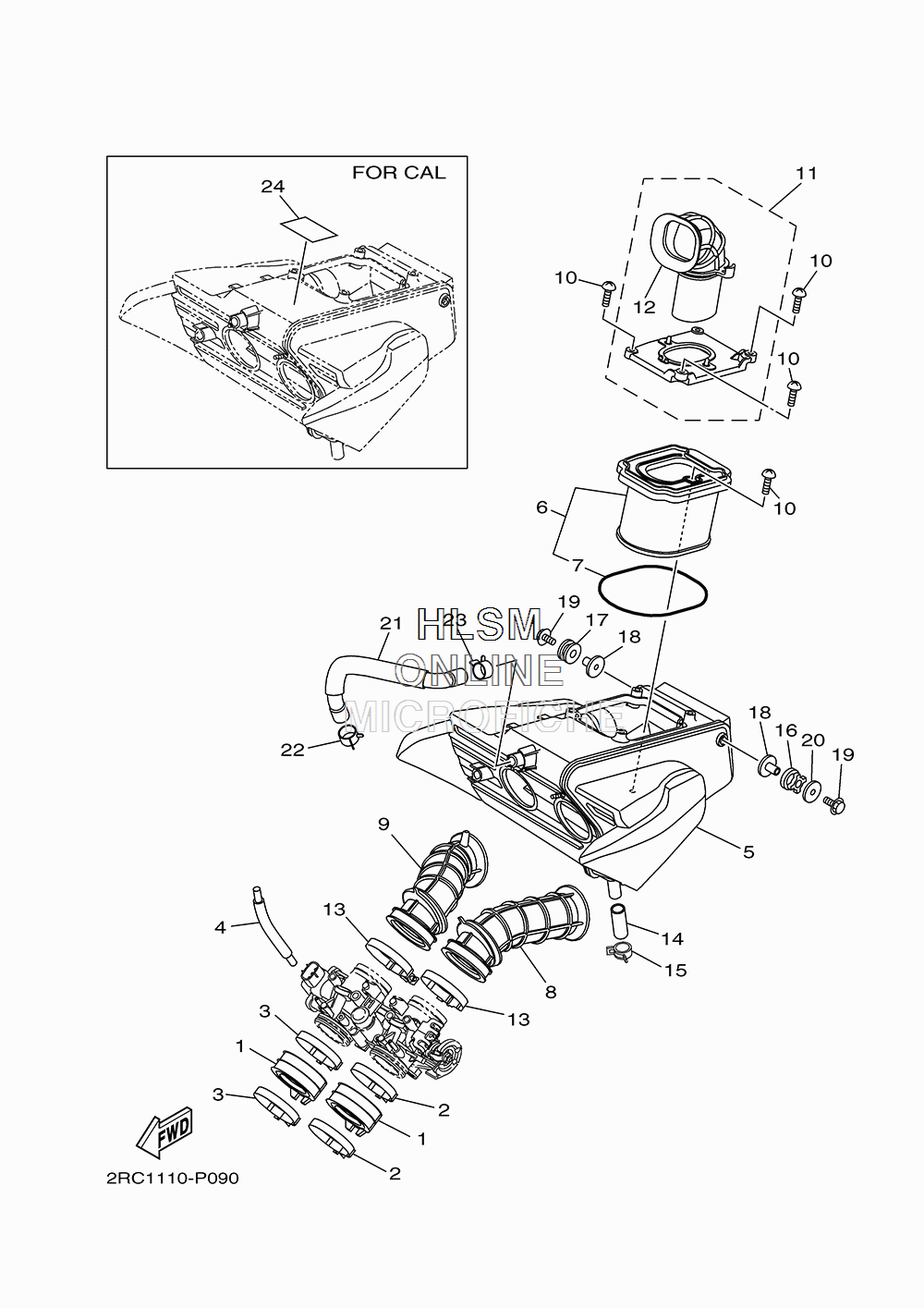

AIR CLEANER W/ INTAKE для Yamaha FZ-07 [FZ07GB] - 2016 года выпуска`
-
№АртикулНазвание
-
11WS-13635-00-00 JOINT, INTAKE 1JOINT, INTAKE 1
-
290450-56011-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390450-56012-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
41WS-13542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
51WS-14401-00-00 AIR CLEANER CASE ASSYAIR CLEANER CASE ASSY
-
61WS-14450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
71WS-14452-00-00 ...SEAL...SEAL
-
81WS-14469-00-00 FUNNEL, AIRFUNNEL, AIR
-
91WS-1446C-00-00 FUNNEL 2FUNNEL 2
-
1090160-05013-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
111WS-14430-10-00 DUCT ASSYDUCT ASSY
-
121WS-14437-10-00 ...DUCT...DUCT
-
1390450-56011-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
141WS-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1590467-13083-00 CLIPCLIP
-
1690480-15001-00 GROMMETGROMMET
-
1790480-15014-00 GROMMETGROMMET
-
1890387-06300-00 COLLARCOLLAR
-
1995817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-064K6-00 WASHER, PLATEWASHER, PLATE
-
211WS-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2290467-17128-00 CLIPCLIP
-
2390467-160A2-00 CLIPCLIP
