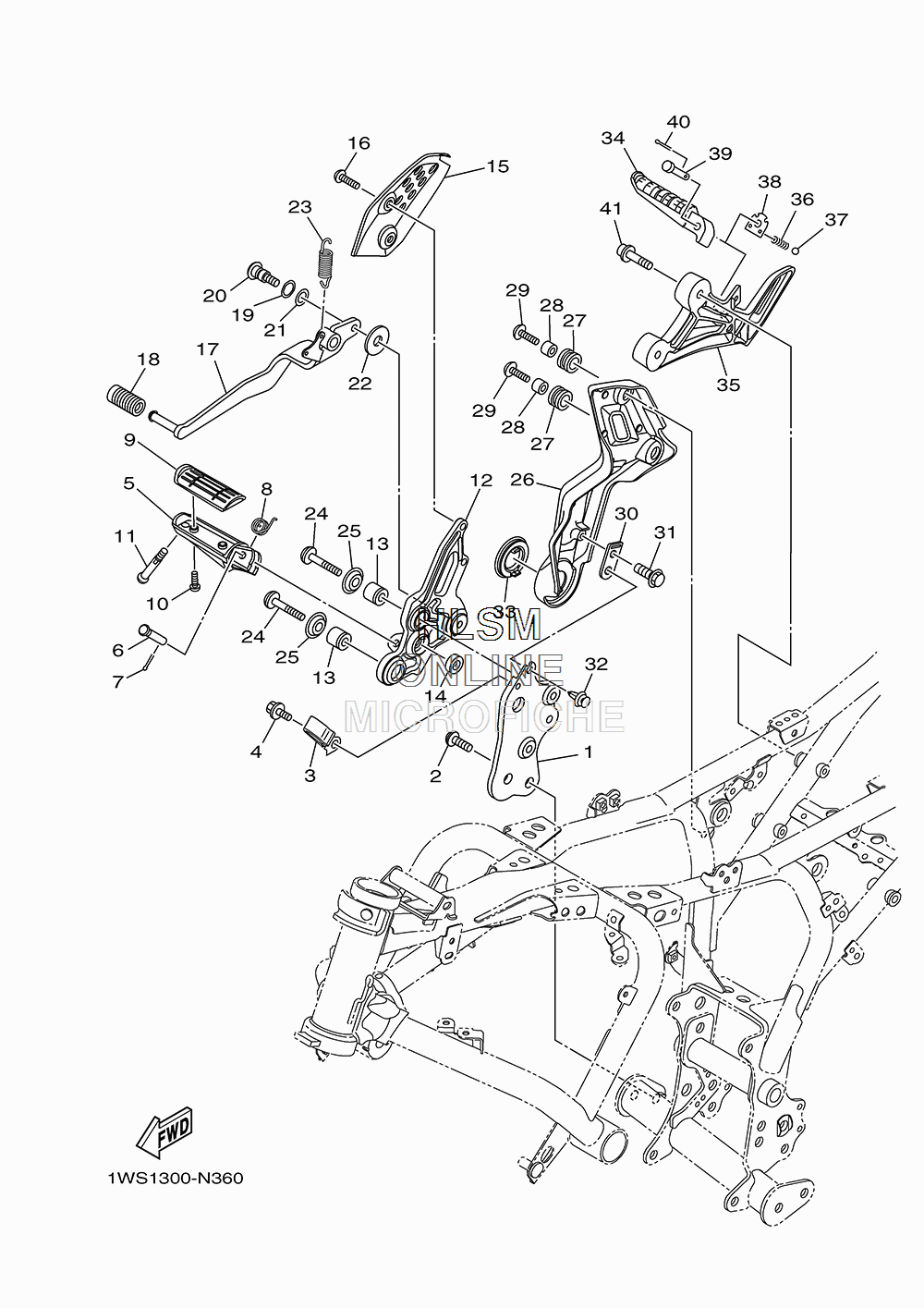

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha FZ-07 [FZ07GB] - 2016 года выпуска`
-
№АртикулНазвание
-
11WS-274A4-00-00 BRACKET, ADAPTER 2BRACKET, ADAPTER 2
-
290111-10060-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390465-08045-00 CLAMPCLAMP
-
495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
51WS-27461-00-00 FOOTRESTFOOTREST
-
691701-08040-00 PINPIN
-
791402-25015-00 PIN, COTTERPIN, COTTER
-
890508-18056-00 SPRING, TORSIONSPRING, TORSION
-
93YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1090157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1190109-086F8-00 BOLTBOLT
-
121WS-27443-00-00 BRACKET 3 (FOR SMX, MS1)BRACKET 3 (FOR SMX, MS1)
-
1336Y-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
145VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
151WS-27446-00-00 PLATE 2 (FOR SMX, MS1)PLATE 2 (FOR SMX, MS1)
-
1692014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
171WS-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
181WS-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
1990206-12074-00 WASHER, WAVEWASHER, WAVE
-
204BP-27434-01-00 BOLTBOLT
-
2190201-12051-00 WASHER, PLATEWASHER, PLATE
-
2290201-08053-00 WASHER, PLATEWASHER, PLATE
-
2390506-23008-00 SPRING, TENSIONSPRING, TENSION
-
2490110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590209-08295-00 WASHER SPEC'L SHAPWASHER SPEC'L SHAP
-
261WS-27463-00-00 COVER 2 (FOR SMX, MS1)COVER 2 (FOR SMX, MS1)
-
2790480-14003-00 GROMMETGROMMET
-
2890387-06057-00 COLLARCOLLAR
-
2990149-06105-00 SCREWSCREW
-
301WS-27425-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
3195802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3290269-08008-00 RIVETRIVET
-
331WS-27475-00-P0 CAP 1 (MBL2)CAP 1 (MBL2)
-
343VR-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
351WS-2742L-01-00 BRACKET 5BRACKET 5
-
3690501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3793501-04011-00 ...BALL 1/4...BALL 1/4
-
385VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
3991702-08040-00 PIN, CLEVISPIN, CLEVIS
-
4091401-25015-00 ...PIN, COTTER...PIN, COTTER
-
4190110-08231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
