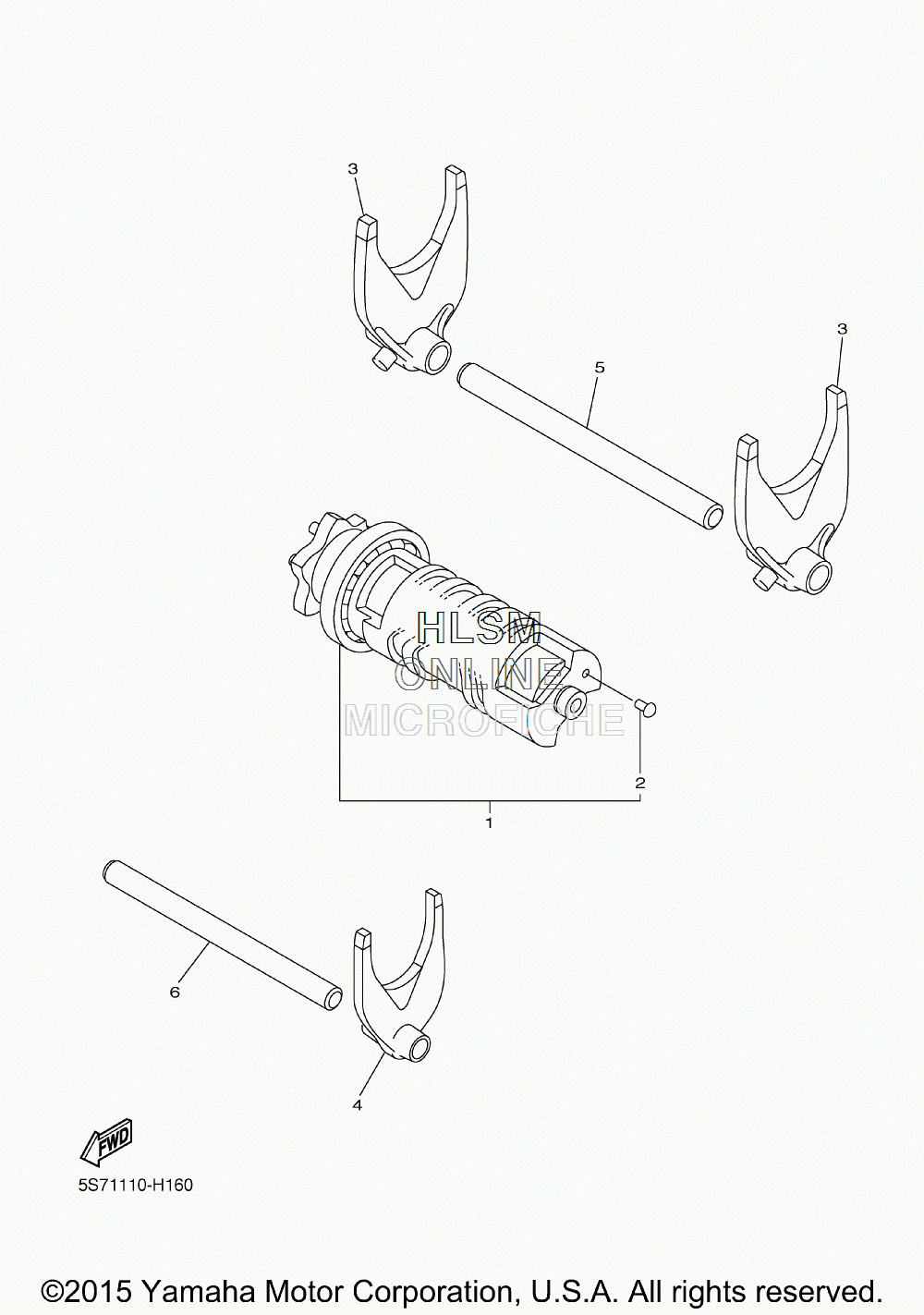

SHIFT CAM W/ FORK для Yamaha BOLT [XVS95CGB] - 2016 года выпуска`
-
№АртикулНазвание
-
15S7-18540-10-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2136-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
33D8-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
43D8-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
53D8-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
63D8-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
