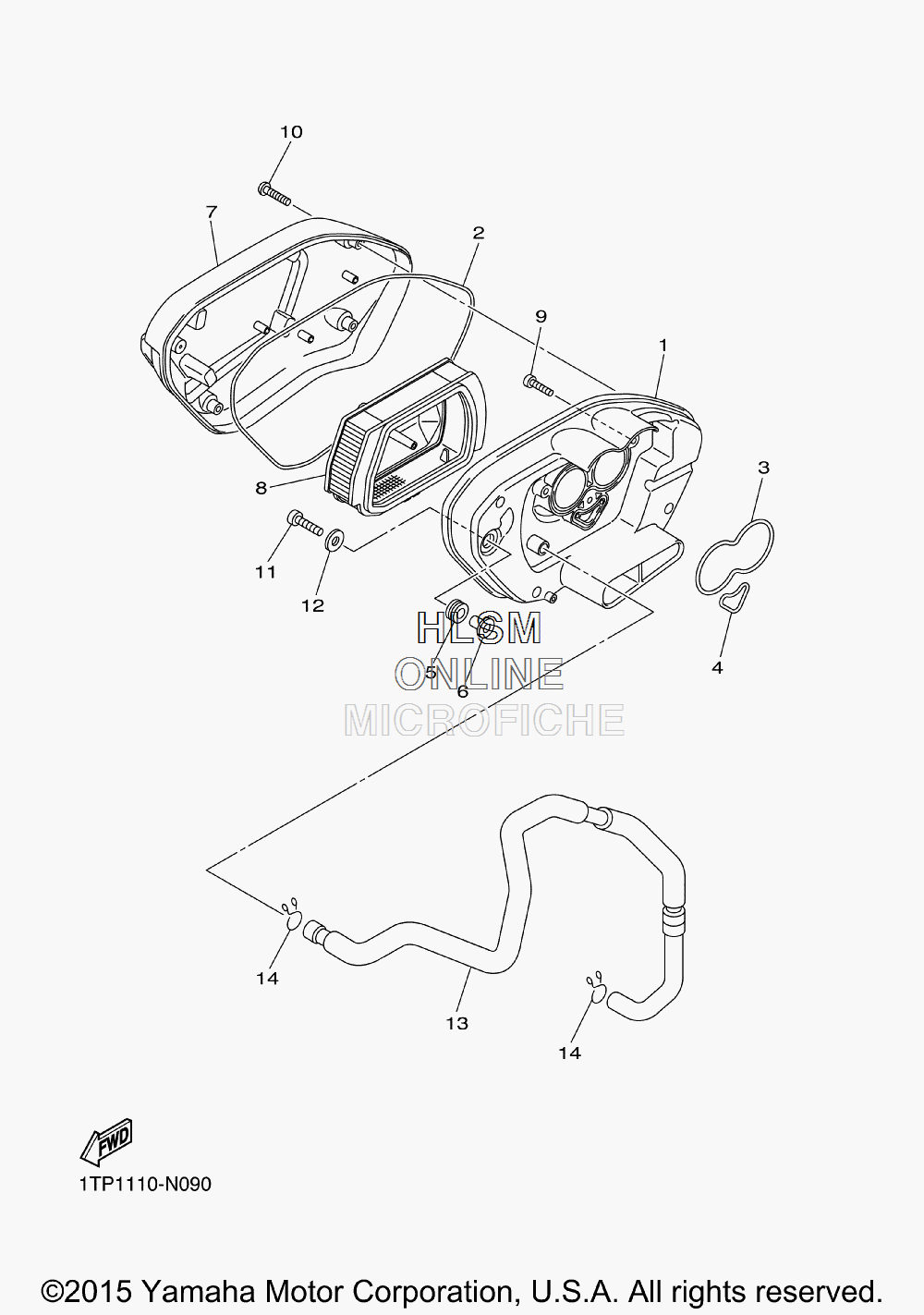

AIR CLEANER W/ INTAKE для Yamaha BOLT [XVS95CGB] - 2016 года выпуска`
-
№АртикулНазвание
-
11TP-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
21TP-14452-00-00 SEALSEAL
-
33D8-14457-00-00 SEALSEAL
-
43D8-14462-00-00 SEALSEAL
-
590480-14023-00 GROMMETGROMMET
-
690387-063E6-00 COLLARCOLLAR
-
71XC-14402-00-00 CAP ASSY, AIR CLEANERCAP ASSY, AIR CLEANER
-
81TP-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
991312-05025-00 BOLTBOLT
-
1090111-05024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1191312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290201-06062-00 WASHER, PLATEWASHER, PLATE
-
131TP-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1490467-16195-00 CLIPCLIP
