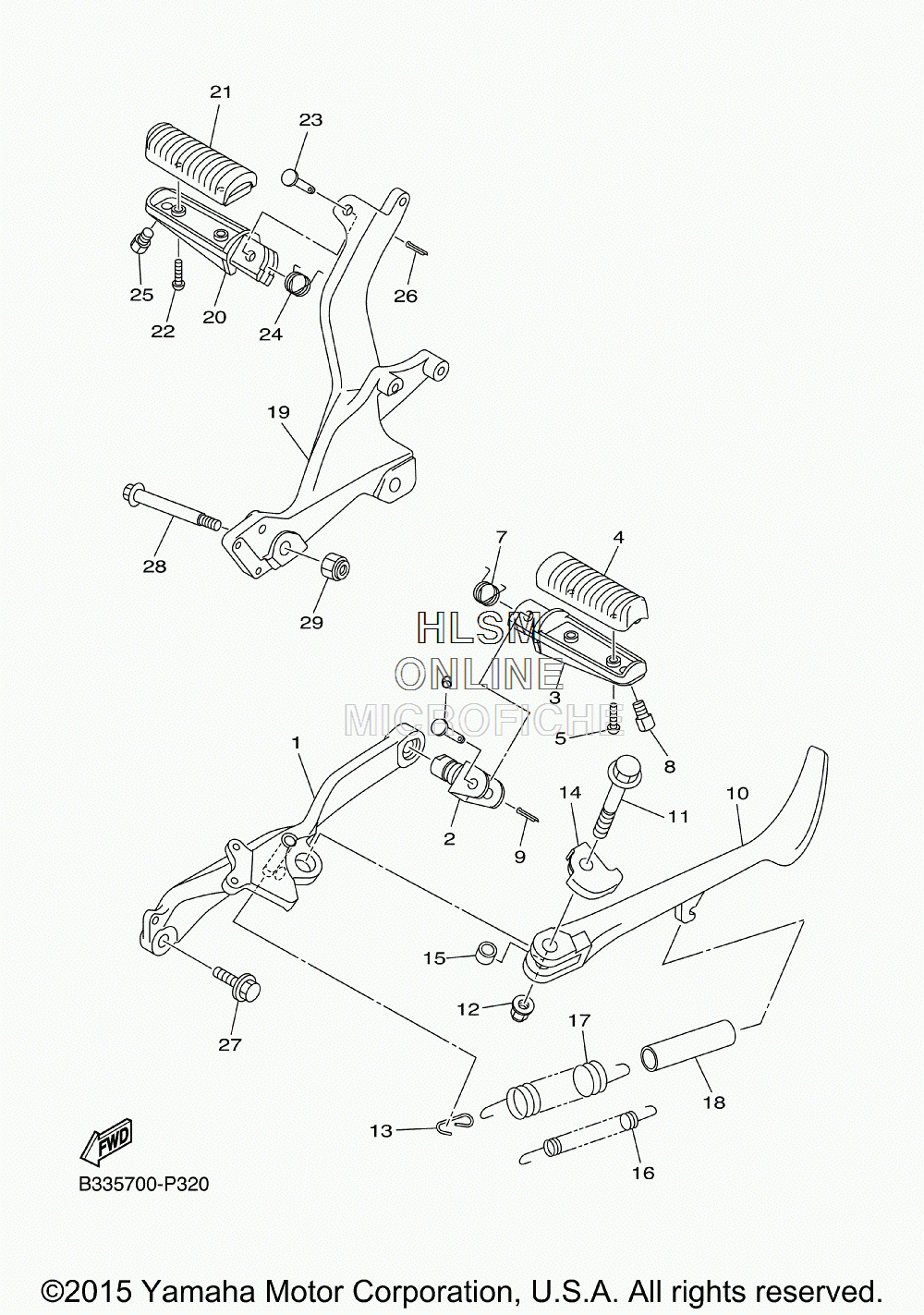

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска`
-
№АртикулНазвание
-
1B33-27411-00-00 FOOTREST 1FOOTREST 1
-
246X-27411-10-00 FOOTREST 1FOOTREST 1
-
34BH-27451-01-00 FOOTRESTFOOTREST
-
44BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
590157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
691701-08035-00 PINPIN
-
790508-20572-00 SPRING, TORSIONSPRING, TORSION
-
81D7-27435-00-00 BOLTBOLT
-
991401-25015-00 PIN, COTTERPIN, COTTER
-
101TP-27311-00-00 STAND, SIDESTAND, SIDE
-
1190105-10426-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
131TP-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
145S7-27322-00-00 WASHERWASHER
-
1590387-10020-00 COLLARCOLLAR
-
1690506-23015-00 SPRING, TENSIONSPRING, TENSION
-
1790506-29006-00 SPRING, TENSIONSPRING, TENSION
-
1890445-16641-00 HOSE (L60)HOSE (L60)
-
19B33-27421-00-00 FOOTREST 2FOOTREST 2
-
204BH-27461-01-00 FOOTRESTFOOTREST
-
214BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2290157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2391702-08040-00 PIN, CLEVISPIN, CLEVIS
-
2490508-20572-00 SPRING, TORSIONSPRING, TORSION
-
251D7-27435-00-00 BOLTBOLT
-
2691401-25015-00 PIN, COTTERPIN, COTTER
-
2790105-10424-00 BOLT, FLANGEBOLT, FLANGE
-
2890105-10364-00 BOLT, FLANGEBOLT, FLANGE
-
2990185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
