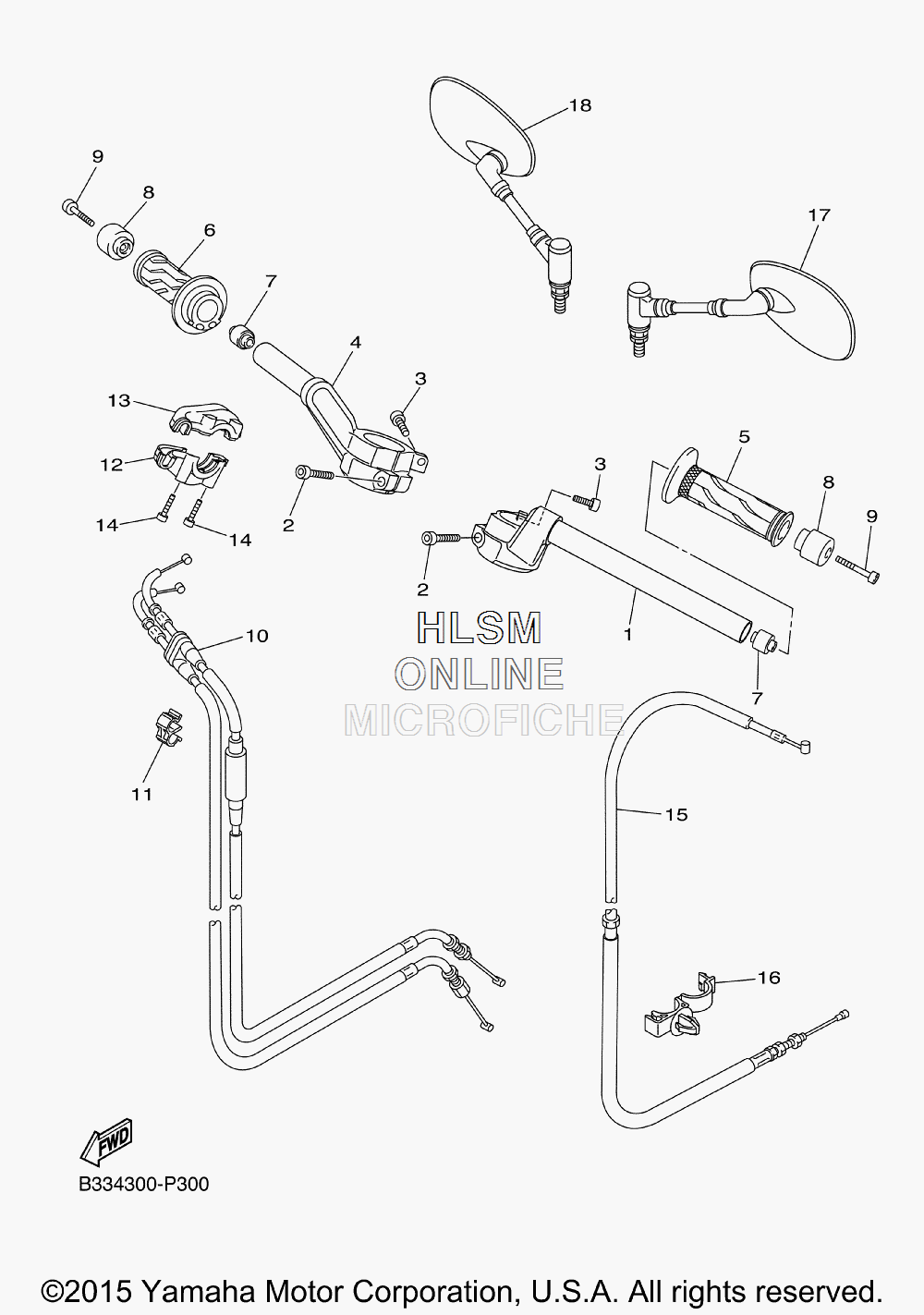

HANDLEBAR W/ CABLES - MIRRORS для Yamaha BOLT C SPEC [XVS95CRG] - 2016 года выпуска`
-
№АртикулНазвание
-
1B33-26121-00-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
291317-08030-00 BOLTBOLT
-
391317-06020-00 BOLTBOLT
-
4B33-26122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
52C0-26241-00-00 GRIPGRIP
-
64C8-26240-00-00 GRIP ASSYGRIP ASSY
-
74XV-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
84D9-26246-00-00 END, GRIPEND, GRIP
-
991317-06065-00 BOLTBOLT
-
10B33-26301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1190468-15139-00 CLIPCLIP
-
121WS-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
131WS-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
1491317-05040-00 BOLTBOLT
-
15B33-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1690464-17003-00 CLAMPCLAMP
-
17B33-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
18B33-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
