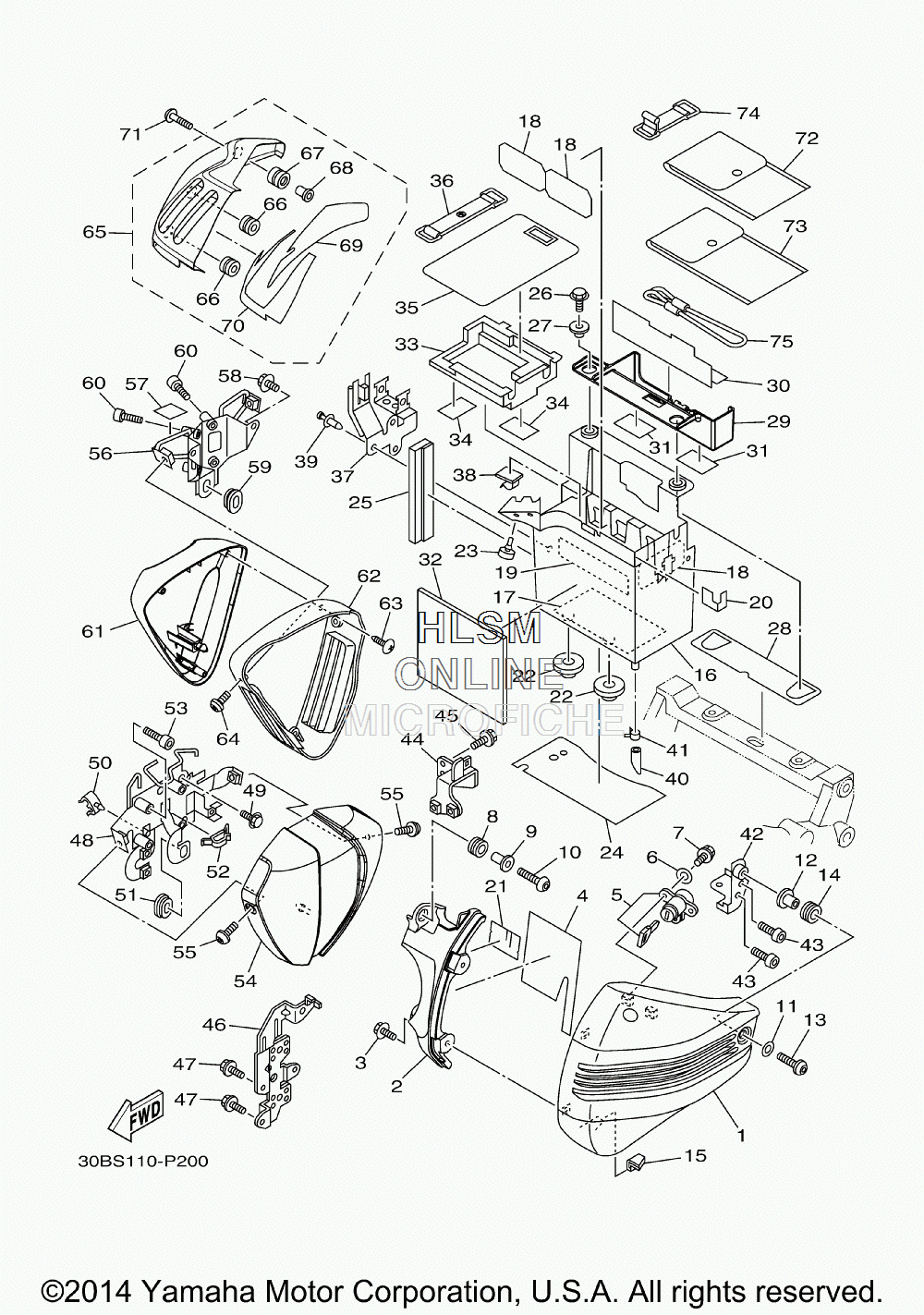

SIDE COVER для Yamaha RAIDER S - 2015 года выпуска`
-
№АртикулНазвание
-
11D7-21711-00-PL COVER, SIDE 1 (FOR DRCB)COVER, SIDE 1 (FOR DRCB)
-
21D7-2117X-00-00 COVER 9COVER 9
-
390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
41D7-21746-00-00 DAMPERDAMPER
-
55PX-W2470-00-00 ROTOR SETROTOR SET
-
690201-06034-00 WASHER, PLATEWASHER, PLATE
-
790105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
890480-14323-00 GROMMETGROMMET
-
990387-066Y6-00 COLLARCOLLAR
-
1092014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190201-06M01-00 WASHER, PLATEWASHER, PLATE
-
1290560-06201-00 SPACERSPACER
-
1390149-06023-00 SCREWSCREW
-
1490480-12007-00 GROMMETGROMMET
-
155PX-2171H-00-00 GUIDEGUIDE
-
161D7-2177G-02-00 BOX, BATTERYBOX, BATTERY
-
175C7-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
185PX-21652-00-00 PROTECTORPROTECTOR
-
195PX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
205C7-2173N-00-00 SEAL 4SEAL 4
-
215C7-21735-00-00 SEAL 2SEAL 2
-
2290480-20384-00 GROMMETGROMMET
-
231D7-2174X-00-00 DAMPERDAMPER
-
241D7-2177N-01-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
251D7-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2790387-06267-00 COLLARCOLLAR
-
285C7-21747-00-00 DAMPERDAMPER
-
295C7-28173-00-00 BOX, TOOLBOX, TOOL
-
305C7-2174Y-00-00 DAMPERDAMPER
-
313YL-12232-00-00 DAMPERDAMPER
-
321D7-21732-00-00 SEAL 1SEAL 1
-
335PX-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
345JW-2139X-00-00 DAMPERDAMPER
-
355VN-8412H-00-00 STAY SETTINGSTAY SETTING
-
36120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
371D7-2172K-00-00 BRACKET 1BRACKET 1
-
3890464-25160-00 CLAMPCLAMP
-
3990269-07077-00 RIVETRIVET
-
4090445-11027-00 HOSEHOSE
-
4190467-11090-00 CLIPCLIP
-
421D7-2175T-00-00 BRACKET 1BRACKET 1
-
4392012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
445C7-2172N-01-00 BRACKET 4BRACKET 4
-
4595807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
465PX-2174E-01-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
4795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
485C7-2175V-00-00 BRACKET 3BRACKET 3
-
4995802-08035-00 BOLT, FLANGEBOLT, FLANGE
-
5090464-09130-00 CLAMPCLAMP
-
5190480-01558-00 GROMMETGROMMET
-
5290464-14001-00 CLAMPCLAMP
-
5390110-06213-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
545C7-21731-01-00 COVER, SIDE 3COVER, SIDE 3
-
5590149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
561D7-2175W-00-00 BRACKET 4BRACKET 4
-
575C7-2173M-00-00 SEAL 3SEAL 3
-
5895022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5990480-01558-00 GROMMETGROMMET
-
6090110-06213-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
615C7-21741-01-00 COVER, SIDE 4COVER, SIDE 4
-
621D7-2171D-00-00 BODYBODY
-
6390167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
6490149-06022-00 SCREWSCREW
-
655C7-17471-00-PG PLATE, COVER (FOR DRCB)PLATE, COVER (FOR DRCB)
-
6690480-13007-00 ...GROMMET...GROMMET
-
6790480-13006-00 ...GROMMET...GROMMET
-
6890387-07007-00 ...COLLAR...COLLAR
-
695C7-15379-00-00 ...SEAL, CRANKCASE...SEAL, CRANKCASE
-
705C7-15663-00-00 ...SEAL...SEAL
-
7190111-06039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
725C7-28100-00-00 TOOL KITTOOL KIT
-
735C7-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
743TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
754HC-21398-00-00 HANGER, HELMETHANGER, HELMET
