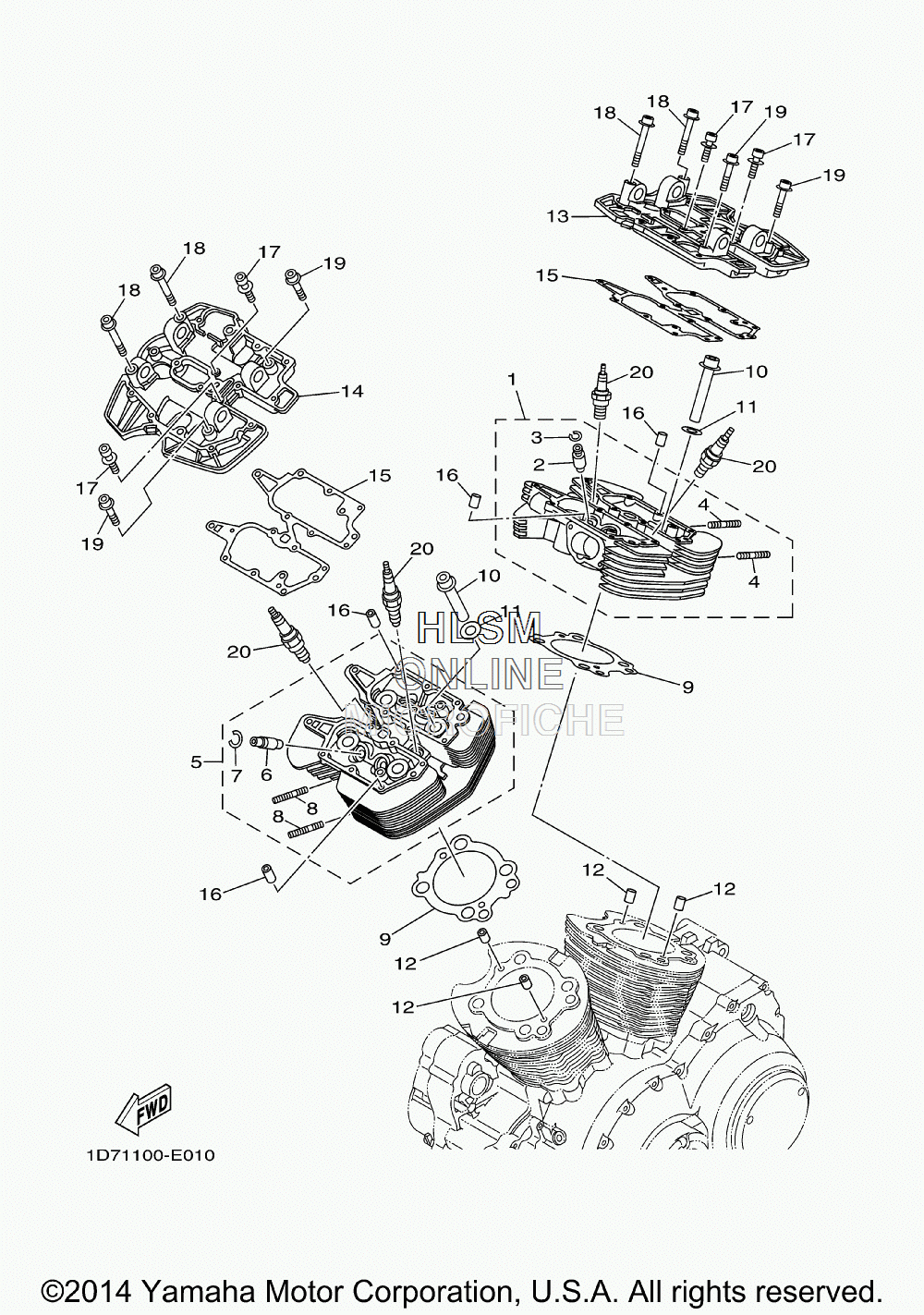

CYLINDER HEAD для Yamaha RAIDER S - 2015 года выпуска`
-
№АртикулНазвание
-
11D7-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24WM-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
495617-08625-00 ...BOLT, STUD...BOLT, STUD
-
51D7-11101-10-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
64WM-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
793440-12052-00 ...CIRCLIP...CIRCLIP
-
895617-08625-00 ...BOLT, STUD...BOLT, STUD
-
91D7-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
101D7-11171-00-00 NUT, HOLDINGNUT, HOLDING
-
1190201-18017-00 WASHER, PLATEWASHER, PLATE
-
1290387-062T5-00 COLLARCOLLAR
-
131D7-11131-00-00 HEAD, CYLINDER 3HEAD, CYLINDER 3
-
141D7-11141-00-00 HEAD, CYLINDER 4HEAD, CYLINDER 4
-
151D7-11182-10-00 GASKET, CYLINDER HEAD 2GASKET, CYLINDER HEAD 2
-
1691808-16023-00 PIN, DOWELPIN, DOWEL
-
1790110-06155-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890110-08075-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990110-08074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2094701-00242-00 PLUG, SPARK (ND X24EPR-U9) (OPT)PLUG, SPARK (ND X24EPR-U9) (OPT)
-
2094701-00241-00 PLUG, SPARK (NGK DPR8EA-9) (OPT)PLUG, SPARK (NGK DPR8EA-9) (OPT)
