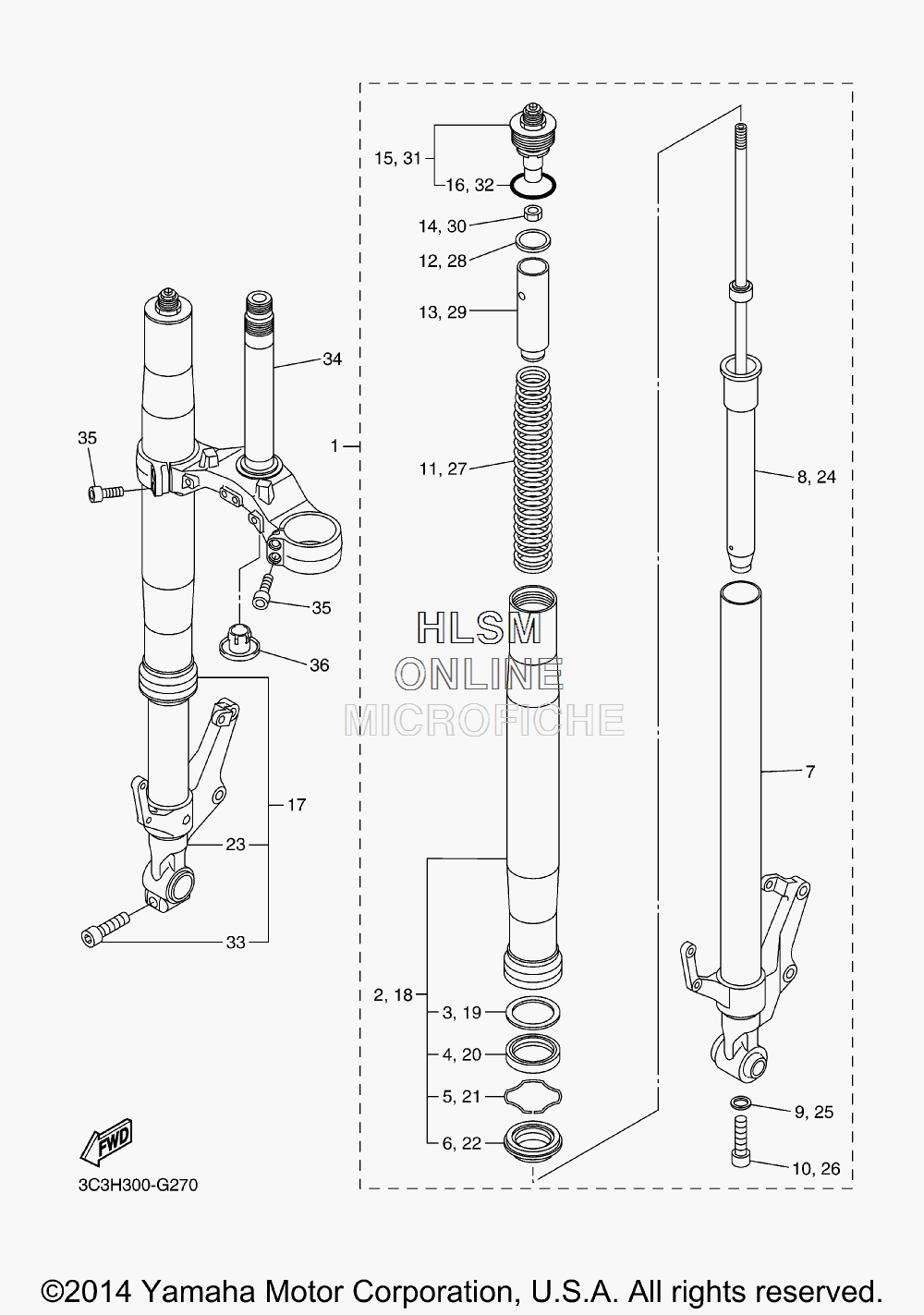

SUSPENSION - FRONT FORK для Yamaha FZ1 - 2015 года выпуска`
-
№АртикулНазвание
-
12D1-23102-03-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22D1-23136-00-00 ...TUBE, OUTER...TUBE, OUTER
-
34V4-23146-L0-00 ......WASHER, OIL SEAL (KYB)......WASHER, OIL SEAL (KYB)
-
44PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
54V4-23153-L0-00 ......RING, SNAP (KYB)......RING, SNAP (KYB)
-
64PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
72D1-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
82D1-23170-11-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
9509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
10278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
112D1-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
125VY-12277-00-00 ...WASHER...WASHER
-
135VY-23118-00-00 ...SPACER...SPACER
-
143LC-23357-00-00 ...NUT...NUT
-
152D1-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
163XJ-23147-L0-00 ......O-RING......O-RING
-
172D1-23103-03-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
182D1-23136-00-00 ...TUBE, OUTER...TUBE, OUTER
-
194V4-23146-L0-00 ......WASHER, OIL SEAL (KYB)......WASHER, OIL SEAL (KYB)
-
204PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
214V4-23153-L0-00 ......RING, SNAP (KYB)......RING, SNAP (KYB)
-
224PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
232D1-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
242D1-23170-01-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
25509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
26278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
272D1-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
285VY-12277-00-00 ...WASHER...WASHER
-
295VY-23118-00-00 ...SPACER...SPACER
-
303LC-23357-00-00 ...NUT...NUT
-
312D1-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
323XJ-23147-L0-00 ......O-RING......O-RING
-
3391314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
342D1-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3591312-08030-00 BOLTBOLT
-
364KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
