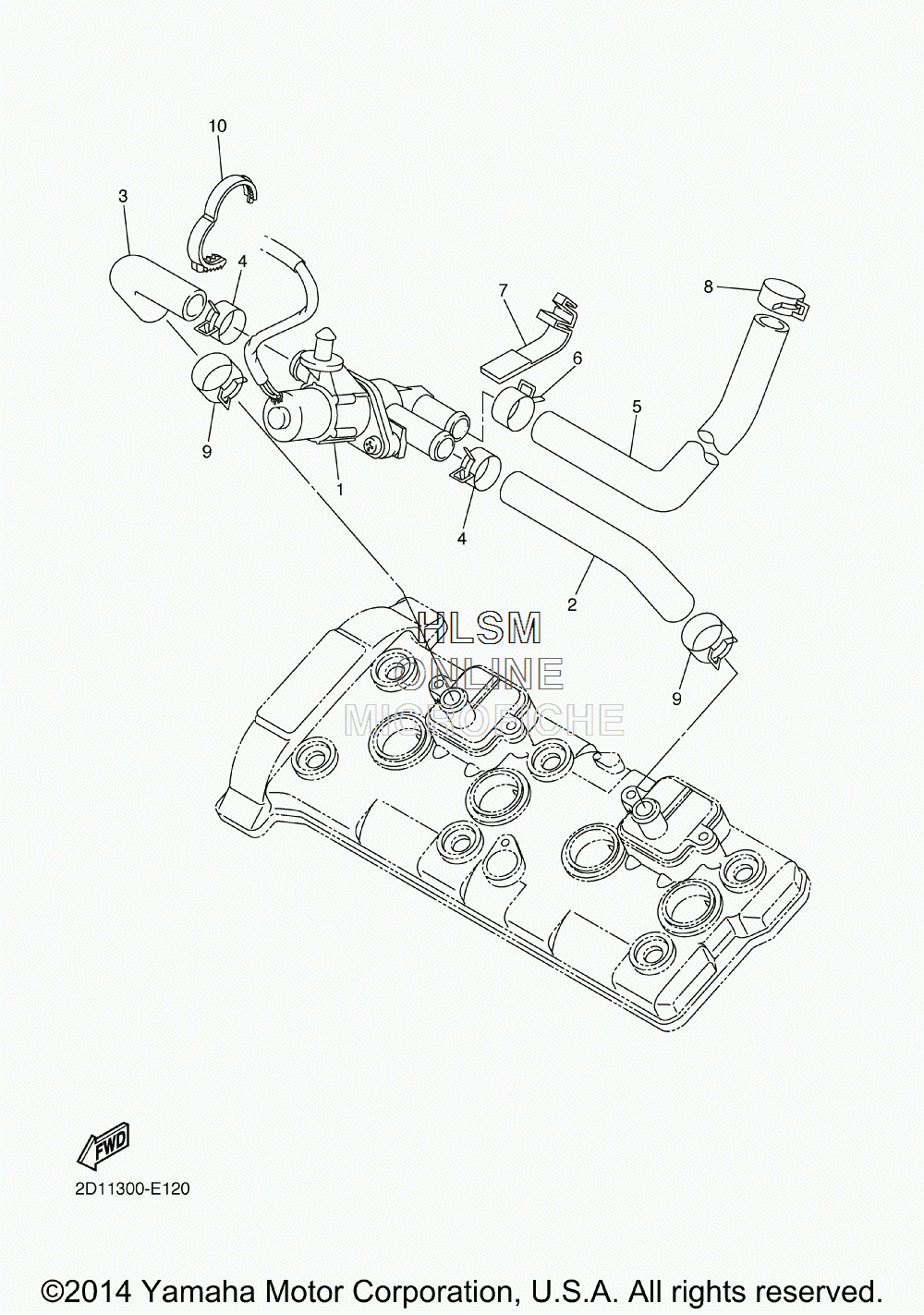

AIR INDUCTION SYSTEM для Yamaha FZ1 - 2015 года выпуска`
-
№АртикулНазвание
-
12D1-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
25VY-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
35VY-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
490467-18172-00 CLIPCLIP
-
55VY-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
690467-18172-00 CLIPCLIP
-
75JW-14723-00-00 COVER 1COVER 1
-
890467-17128-00 CLIPCLIP
-
990467-180A0-00 CLIPCLIP
-
1090464-28003-00 CLAMPCLAMP
