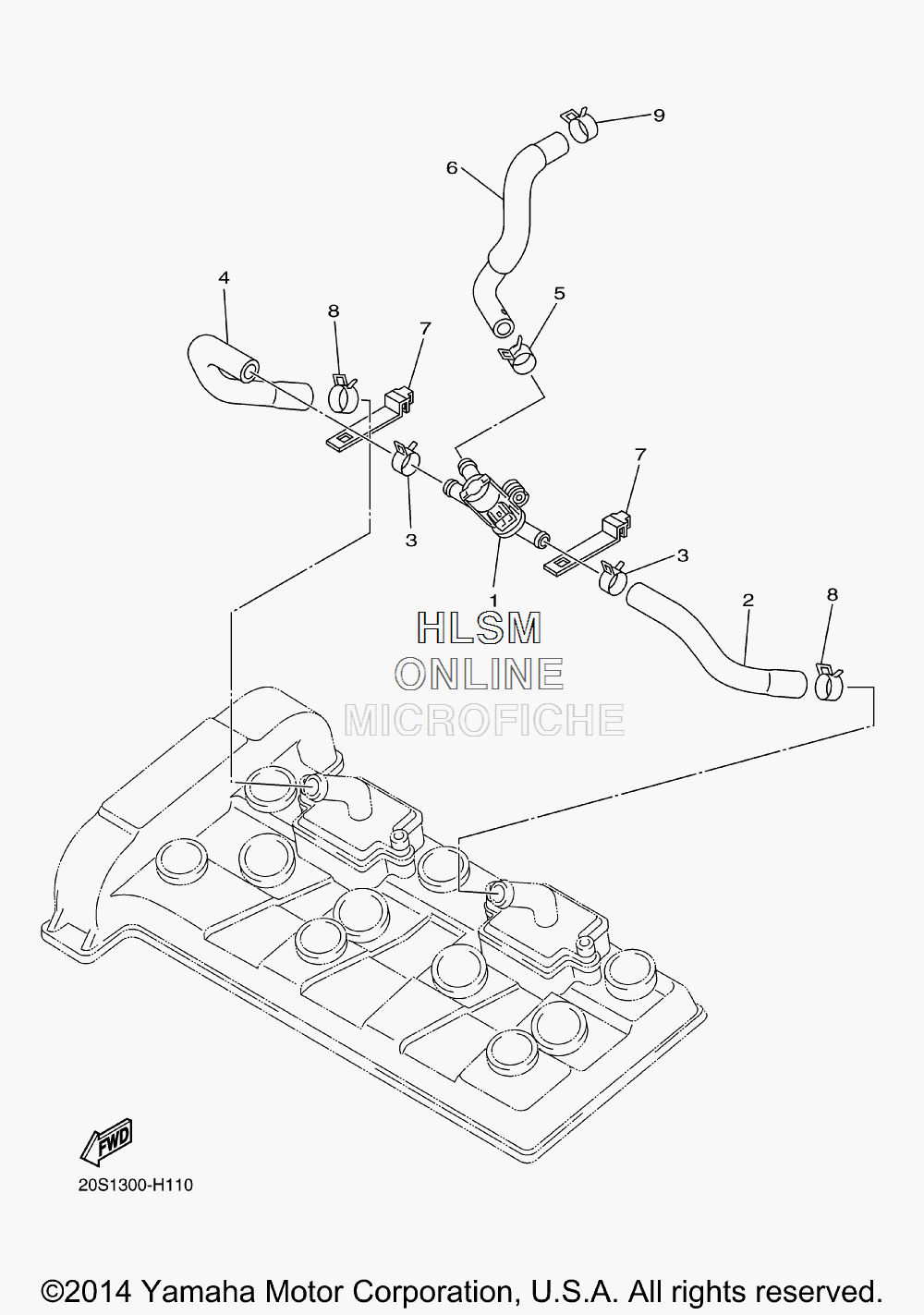

AIR INDUCTION SYSTEM для Yamaha FZ-6R - 2015 года выпуска`
-
№АртикулНазвание
-
120S-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
220S-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
390467-17089-00 CLIPCLIP
-
420S-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
590467-17089-00 CLIPCLIP
-
620S-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
75JW-14723-00-00 COVER 1COVER 1
-
890467-17003-00 CLIPCLIP
-
990467-17128-00 CLIPCLIP
