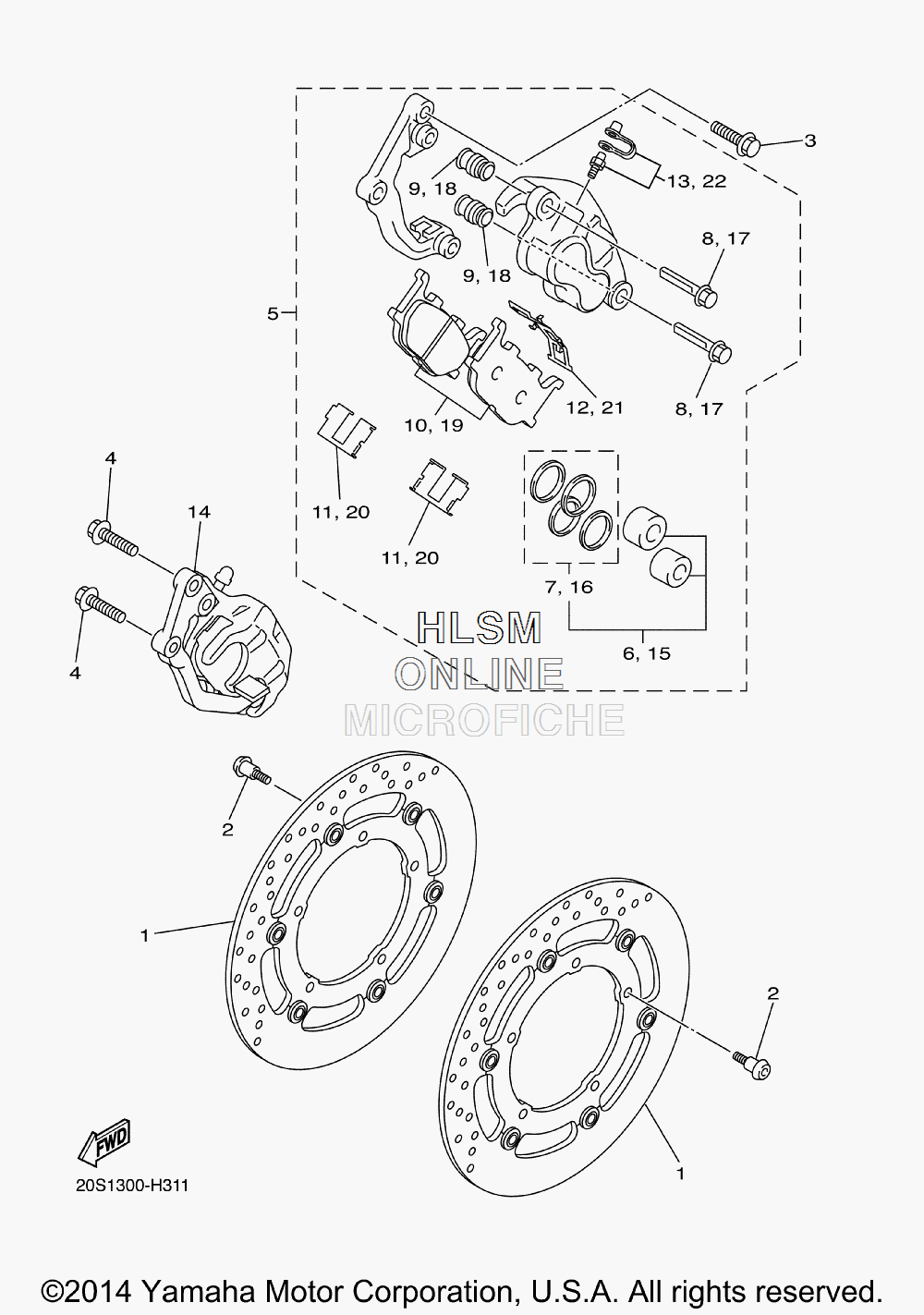

BRAKE - FRONT CALIPER для Yamaha FZ-6R - 2015 года выпуска`
-
№АртикулНазвание
-
120S-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
390105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
-
490105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
-
55VX-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
65KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
74FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
94TT-25937-00-00 ...BOOT 2...BOOT 2
-
105VX-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
114BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
123YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1351L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
145VX-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
155KS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
164FU-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
175JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
184TT-25937-00-00 ...BOOT 2...BOOT 2
-
195VX-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
204BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
213YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
2251L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
