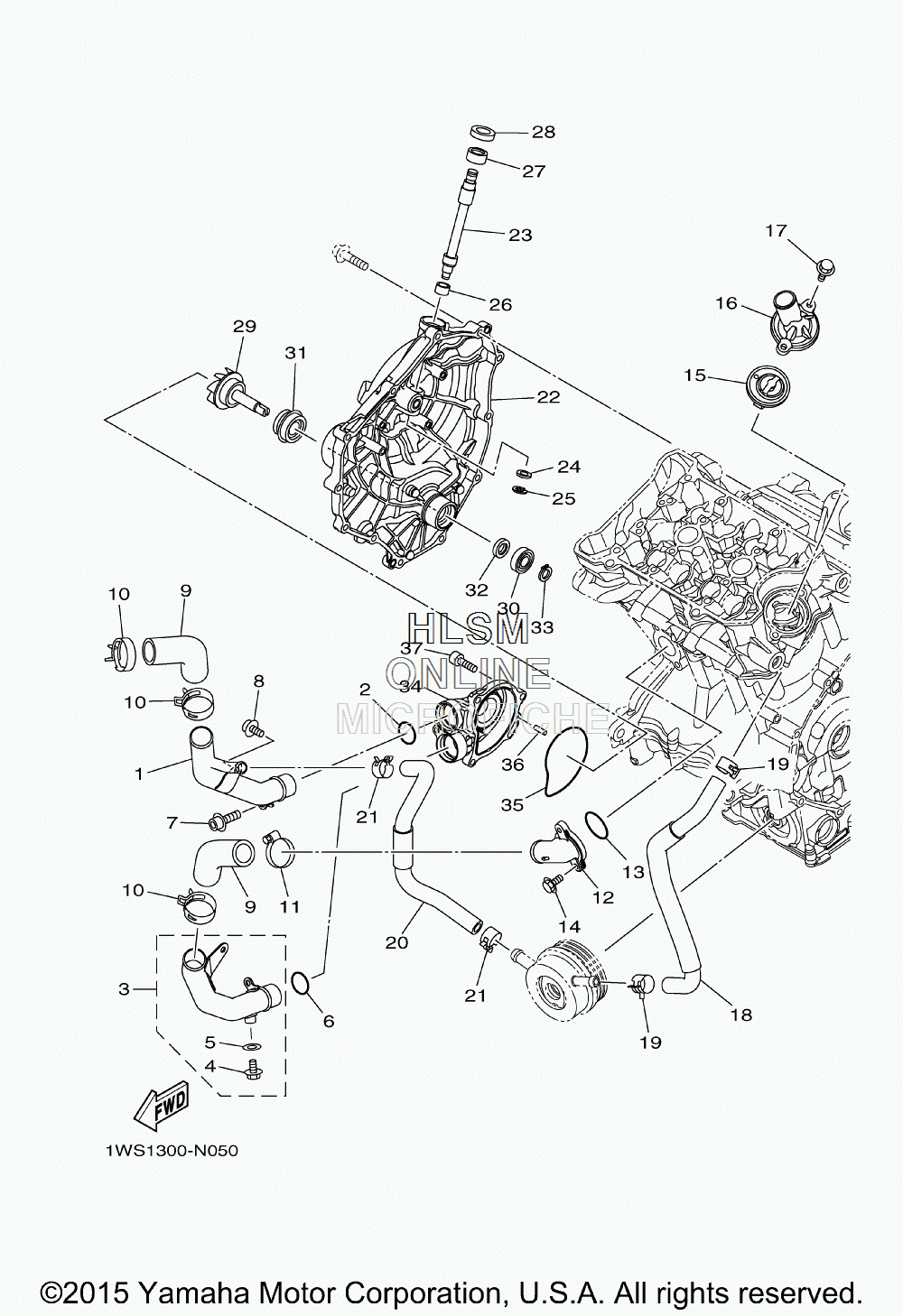

WATER PUMP для Yamaha FZ-07 - 2015 года выпуска
-
№АртикулНазвание
-
11WS-12481-00-00 PIPE 1PIPE 1
-
293210-235A1-00 O-RINGO-RING
-
31WS-12482-00-00 PIPE 2PIPE 2
-
495022-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-06014-00 ...GASKET...GASKET
-
693210-235A1-00 O-RINGO-RING
-
791314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890110-06152-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
91WS-12576-00-00 HOSE 1HOSE 1
-
1090467-290A0-00 CLIPCLIP
-
1190450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
121WS-12469-00-00 JOINT 1JOINT 1
-
1393210-33786-00 O-RINGO-RING
-
1495812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
151WS-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
161WS-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1795817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
181WS-12588-00-00 HOSE 5HOSE 5
-
1990467-170A6-00 CLIPCLIP
-
201WS-12589-00-00 HOSE 6HOSE 6
-
2190467-170A6-00 CLIPCLIP
-
221WS-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
232D1-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2492907-08600-00 WASHER, PLATEWASHER, PLATE
-
2599001-07600-00 CIRCLIPCIRCLIP
-
2693317-11096-00 BEARINGBEARING
-
2793315-21570-00 BEARINGBEARING
-
2893102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
291WS-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
3093306-00106-00 BEARINGBEARING
-
315VK-12438-00-00 SEAL, MECHANICALSEAL, MECHANICAL
-
3293101-12173-00 OIL SEAL S-TYPEOIL SEAL S-TYPE
-
3399009-12400-00 CIRCLIPCIRCLIP
-
341WS-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
351WS-12439-00-00 O-RINGO-RING
-
3693603-12007-00 PIN, DOWELPIN, DOWEL
-
3790110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
