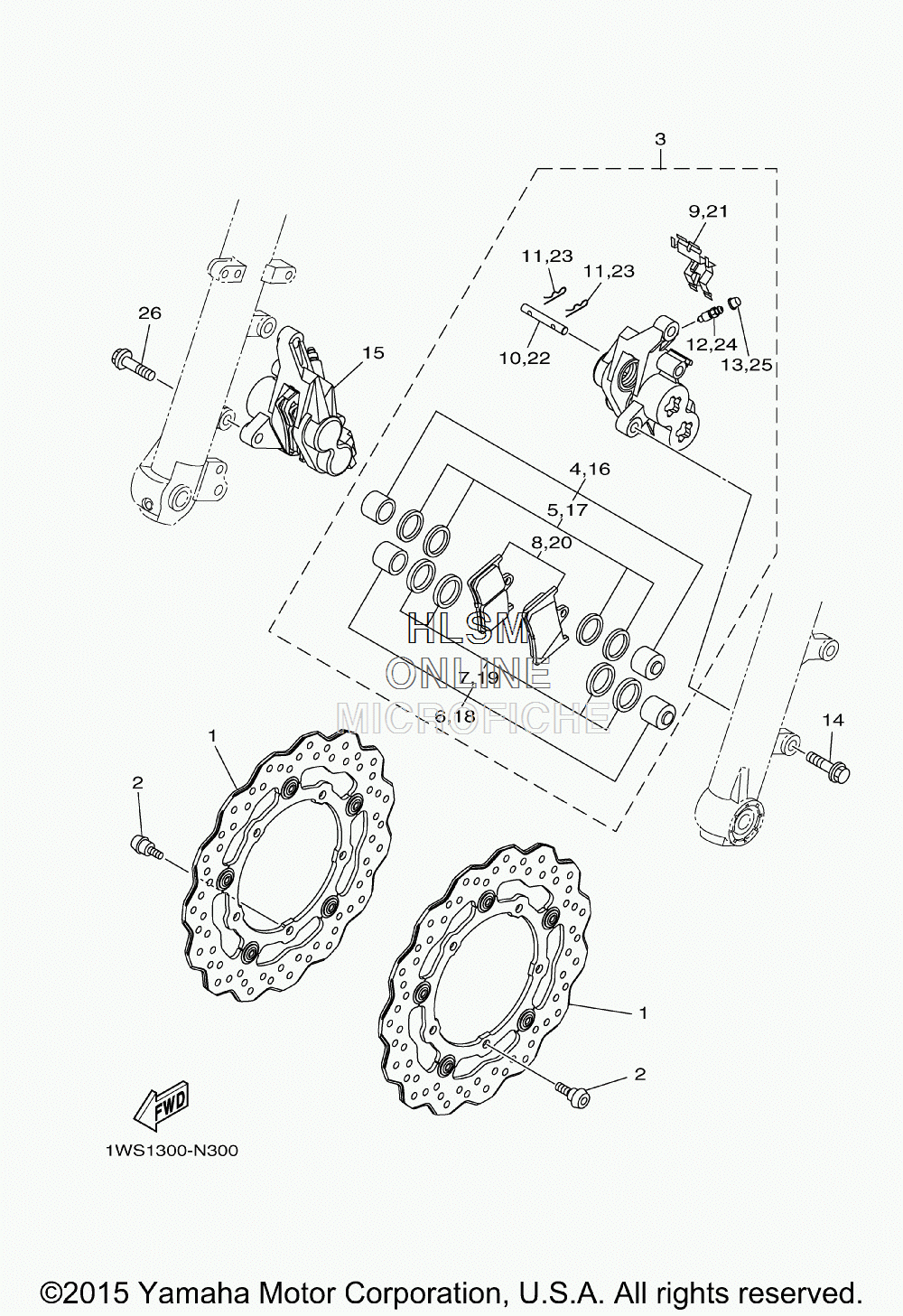

BRAKE - FRONT CALIPER для Yamaha FZ-07 - 2015 года выпуска`
-
№АртикулНазвание
-
11WS-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
31WS-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
44SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81WS-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
913S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
104SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
121J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
13306-25825-01-00 ...CAP...CAP
-
1490105-10638-00 BOLT, FLANGEBOLT, FLANGE
-
151WS-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
164SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
173GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
184SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
193MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
201WS-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
2113S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
224SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
233GM-25925-00-00 ...CLIP...CLIP
-
241J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
25306-25825-01-00 ...CAP...CAP
-
2690105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
