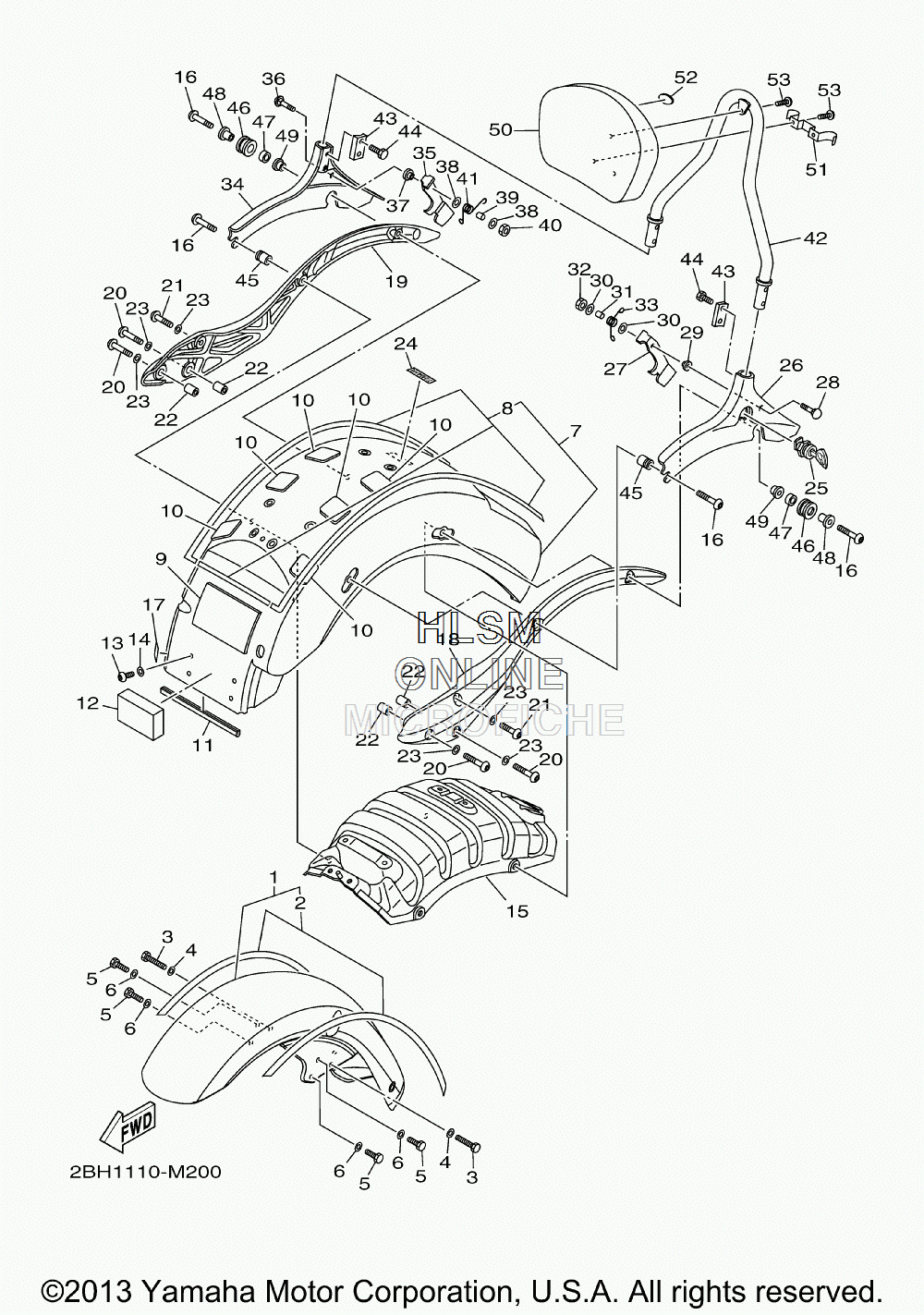

FENDER - FRONT / REAR для Yamaha STRATOLINER S - 2014 года выпуска
-
№АртикулНазвание
-
11D7-Y2151-P0-P0 FRONT FENDER ASSY FOR S3FRONT FENDER ASSY FOR S3
-
24P0-21570-70-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
397022-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
492902-08600-00 WASHER, PLATEWASHER, PLATE
-
597022-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
692902-08600-00 WASHER, PLATEWASHER, PLATE
-
71D7-Y2161-T0-P5 REAR FENDER COMP. FOR S3REAR FENDER COMP. FOR S3
-
84P0-2165A-70-00 ...GRAPHIC SET,REAR FENDER...GRAPHIC SET,REAR FENDER
-
95PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
105PX-21669-01-00 SEALSEAL
-
111D7-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
121D7-21639-00-00 DAMPER 2DAMPER 2
-
1390111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490201-06036-00 WASHER, PLATEWASHER, PLATE
-
151D7-21643-00-00 STAY, REARSTAY, REAR
-
1690111-08033-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
173FY-21575-01-00 SEAL 1SEAL 1
-
181D7-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
191D7-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
2092014-10050-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190111-10025-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2299530-14016-00 PIN, DOWELPIN, DOWEL
-
2390201-10M63-00 WASHER, PLATEWASHER, PLATE
-
241D6-2153E-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
252C5-28409-01-00 LOCK ASSY. 2LOCK ASSY. 2
-
262C5-F846H-00-00 PLATE,4PLATE,4
-
272C5-F8488-00-00 HOOKHOOK
-
282C5-F844M-00-00 SHAFT 1SHAFT 1
-
292C5-F8467-00-00 SPACERSPACER
-
302C5-F8319-00-00 WASHERWASHER
-
312C5-F849T-00-00 PLATE, GUIDEPLATE, GUIDE
-
3295680-06100-00 NUT, UNUT, U
-
332C5-F8489-00-00 SPRINGSPRING
-
342C5-F847H-00-00 PLATE 5PLATE 5
-
352C5-F8498-00-00 HOOK 2HOOK 2
-
362C5-F844M-00-00 SHAFT 1SHAFT 1
-
372C5-F8467-00-00 SPACERSPACER
-
382C5-F8319-00-00 WASHERWASHER
-
392C5-F849T-00-00 PLATE, GUIDEPLATE, GUIDE
-
4095680-06100-00 NUT, UNUT, U
-
412C5-F848A-00-00 SPRING 2SPRING 2
-
422C5-F8426-00-00 BRACKET 1BRACKET 1
-
432C5-F8417-00-00 PLATEPLATE
-
4497014-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
452C5-F842L-00-00 PIN, STOPPERPIN, STOPPER
-
462C5-F845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
472C5-F836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
482C5-F8329-00-00 SPACERSPACER
-
492C5-F8425-00-00 DAMPER 3DAMPER 3
-
501D6-2840F-10-00 BACK REST ASSYBACK REST ASSY
-
515GA-2164G-00-00 STAY 2STAY 2
-
525GA-24786-01-00 EMBLEMEMBLEM
-
5392014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
