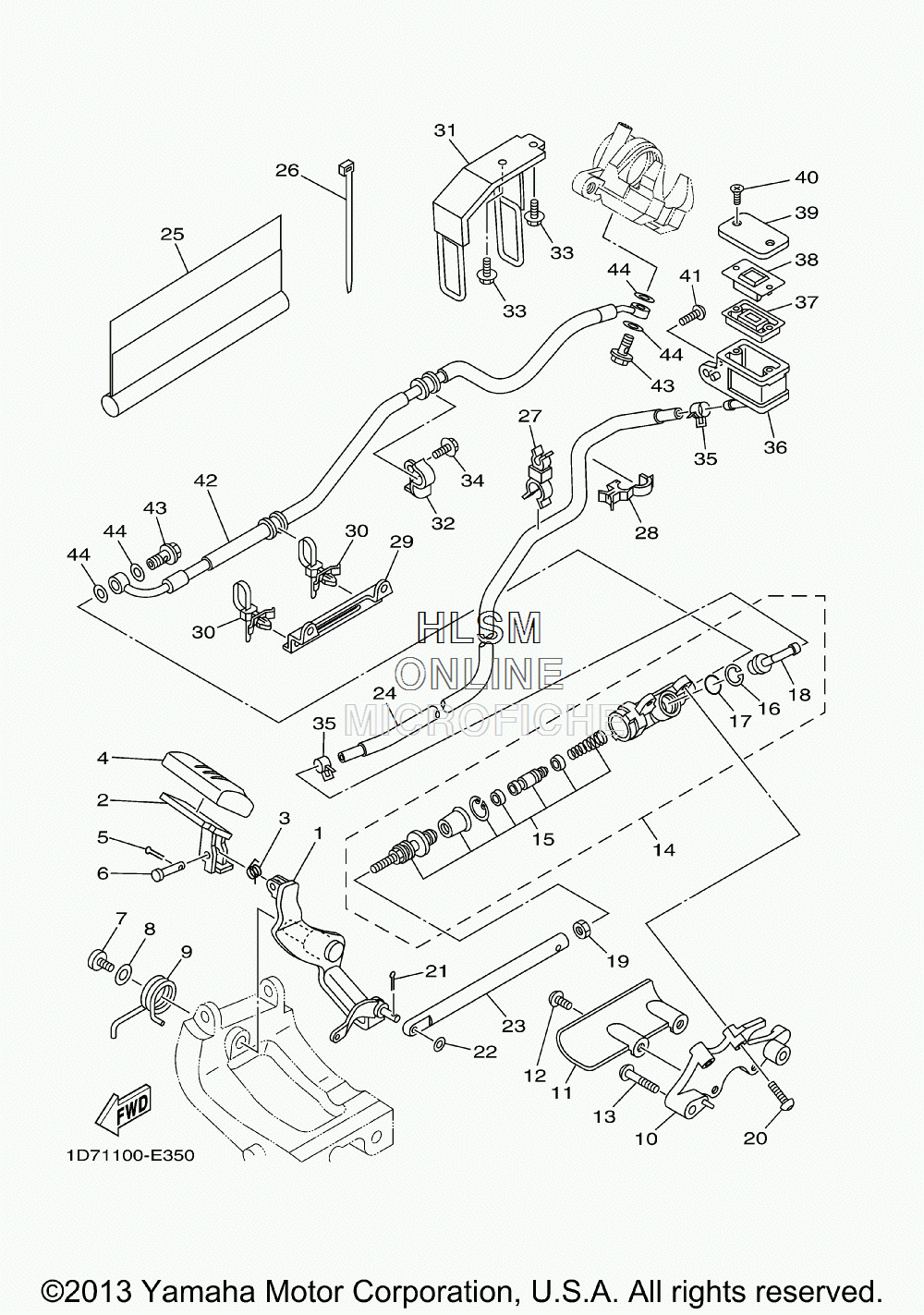

BRAKE - REAR MASTER CYLINDER для Yamaha STRATOLINER S - 2014 года выпуска
-
№АртикулНазвание
-
11D7-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-18023-00 SPRING, TORSIONSPRING, TORSION
-
41D7-27285-00-00 CAPCAP
-
591402-20012-00 PIN, COTTERPIN, COTTER
-
691702-06022-00 PIN, CLEVISPIN, CLEVIS
-
790110-06249-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890201-06033-00 WASHER, PLATEWASHER, PLATE
-
91D7-27316-00-00 SPRING, SIDE STANDSPRING, SIDE STAND
-
101D7-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
115PX-27491-00-00 PROTECTORPROTECTOR
-
1292014-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1392014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
141D7-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
151FK-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
162VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
1793210-15620-00 ...O-RING...O-RING
-
182VN-2582A-50-00 ...JOINT...JOINT
-
1995307-08700-00 NUTNUT
-
2092014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2191402-16012-00 PIN, COTTERPIN, COTTER
-
2292902-06200-00 WASHERWASHER
-
231D7-27222-00-00 JOINTJOINT
-
241D7-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
251D7-25881-00-00 PROTECTOR, BRAKE HOSEPROTECTOR, BRAKE HOSE
-
265Y9-12491-00-00 CLAMP 1CLAMP 1
-
2790464-14005-00 CLAMPCLAMP
-
2890464-15192-00 CLAMPCLAMP
-
291D7-21374-00-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
3090464-14006-00 CLAMPCLAMP
-
311D7-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
321D7-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
3395022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3495022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3590467-12191-00 CLIPCLIP
-
365YU-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
3755U-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
383GM-2585B-20-00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
395YU-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
4098706-04040-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
4192014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
421D7-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
4390401-10020-00 BOLT, UNIONBOLT, UNION
-
4490430-10005-00 GASKETGASKET
